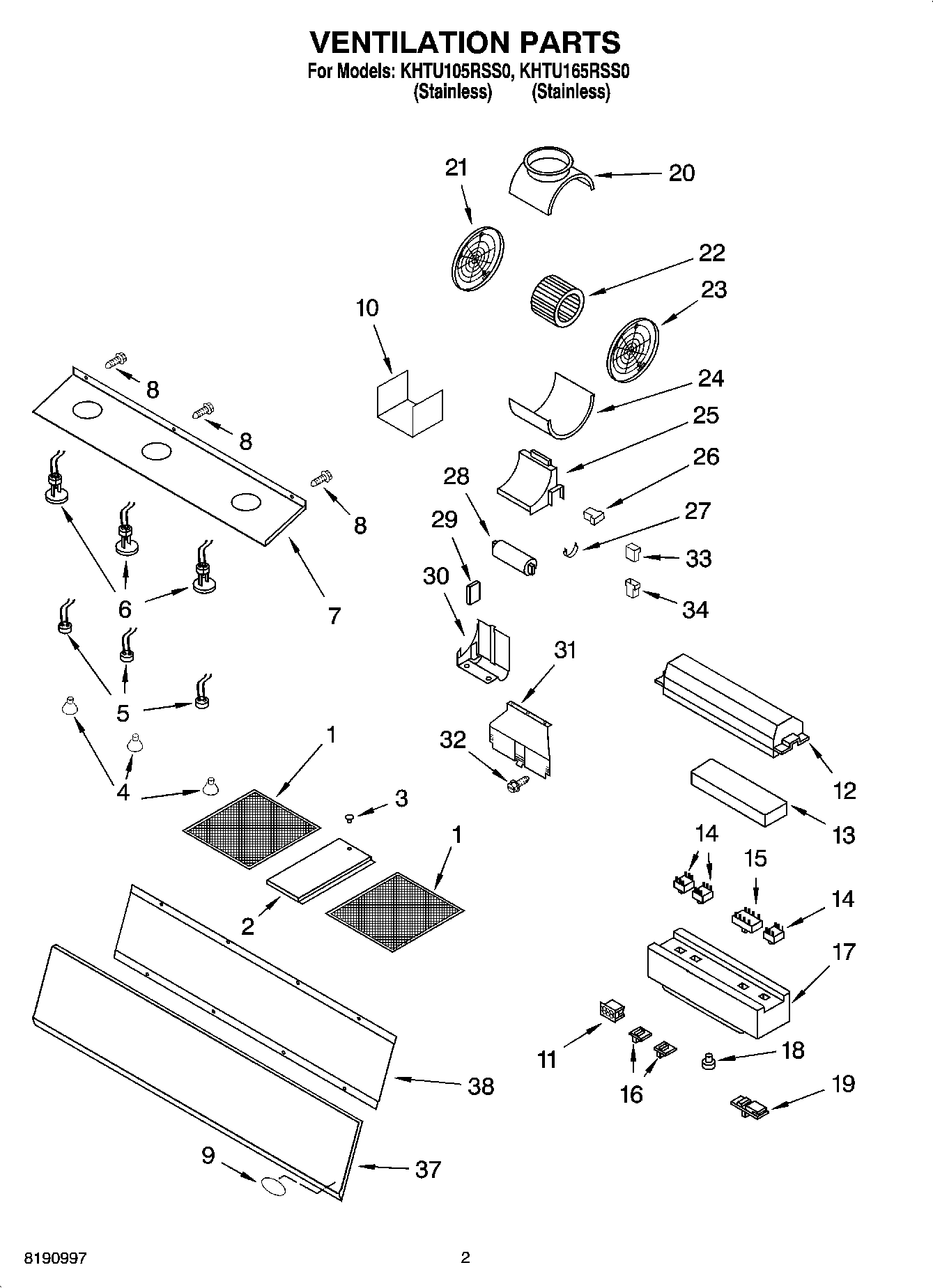

KHTU105RSS0 02 – VENTILATION PARTS

Products

Position	Product
1	WPW10252087 Whirlpool Range Hood Grease Filter
2	Panel, Spacer
3	Button, Plug
4	WPW10252088 Whirlpool Light Bulb
5	Holder, Bulb (6)
6	Support, Bulb
7	Support, Light
7	Support, Light (36`` Model)
8	Pin
9	Nameplate
10	Box, Wiring
11	Connector
12	Cover, Switch
13	Support, Switch
14	W11731942 Whirlpool Slide Switch
15	WPW10252122 Whirlpool Switch Slide
16	Button, On/Off
17	Box, Control
18	Cover, Lamp
19	Button, Mtr Speed
20	Housing, Upper
21	Support, Motor-SX
22	Motor, Blower
23	Support, Motor-DX
24	Housing, Lower
25	Cover, Wire
26	Connector
27	Cover, Wire
28	Capacitor
29	Cover, Wire
30	Cover, Wire
31	Bracket, Mounting
32	Screw (2)
33	Connector, Female
34	Connector, Male
37	Panel, Bottom (36`` Model)
37	Panel, Bottom
38	Cover, Front
38	4396565 Whirlpool Filter
38	Cover, Front (36`` Model)
38	ACCESSORY PARTS
