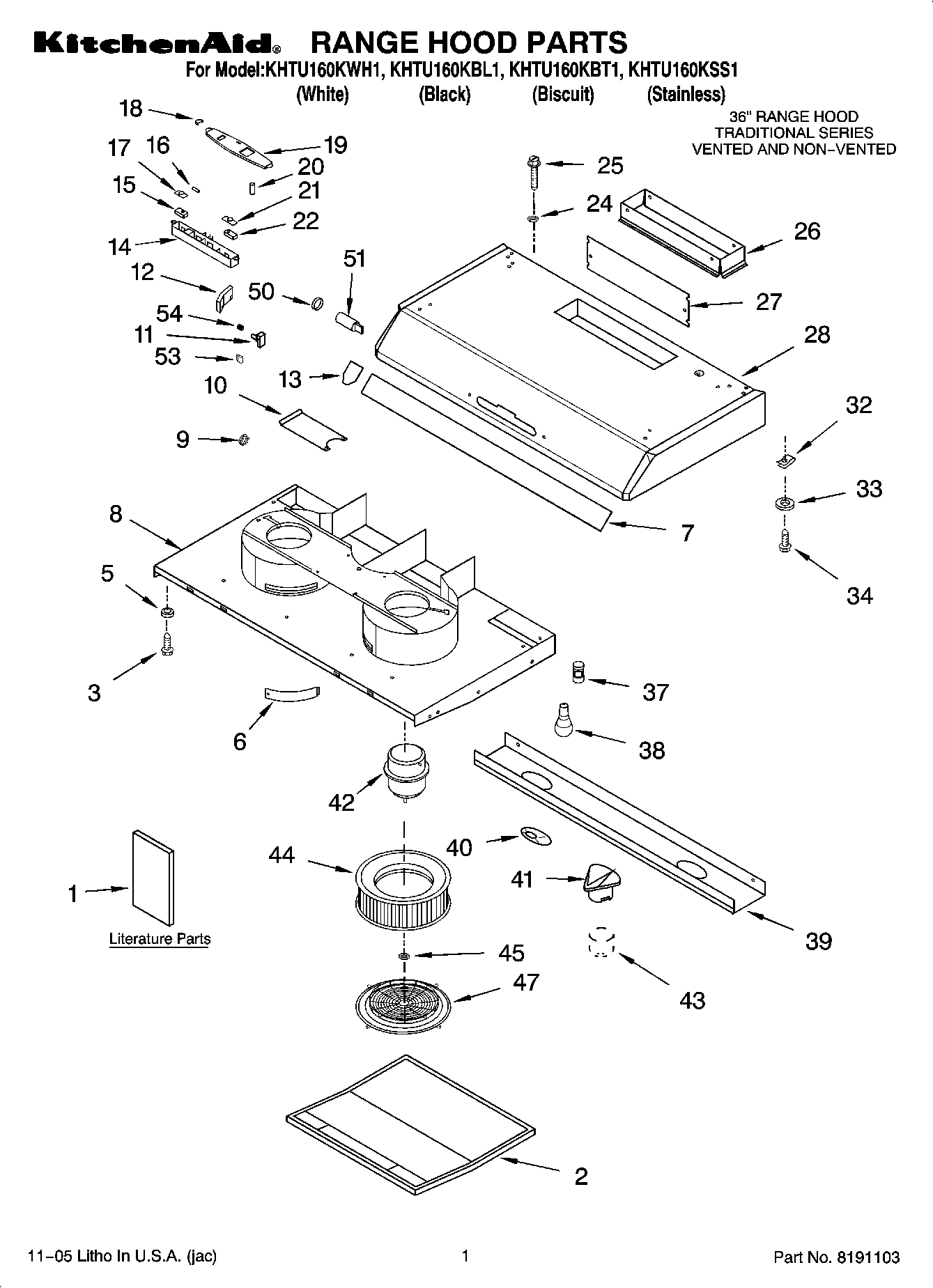

KHTU160KSS1 01 – RANGE HOOD PARTS

KHTU160KSS1 01 – RANGE HOOD PARTS

Written by

in

KHTU160KSS1 01 – RANGE HOOD PARTS

Products

Position	Product
1	Wiring Diagram
1	Instructions, Installation
2	Filter, Metal
3	SCREW
5	Grommet
6	Cover / Bracket
7	Glass, Visor
8	Housing, Fan Motor (White)
8	Housing, Fan Motor (Biscuit)
8	Housing, Fan Motor (Stainless)
8	Housing, Fan Motor (Black)
9	Grommet
10	Cover, Wire Left (Black)
10	Cover, Wire Left (Biscuit)
10	Cover, Wire Left (Stainless)
10	Cover, Wire Left (White)
10	Cover, Wire Right (Black)
10	Cover, Wire Right (Biscuit)
10	Cover, Wire Right (Stainless)
10	Cover, Wire Right (White)
11	Pin, Pivot Right (White)
11	Pin, Pivot Right (Biscuit)
11	Pin, Pivot Right (Black)
11	Pin, Pivot Left (White)
11	Pin, Pivot Left (Biscuit)
11	Pin, Pivot Left (Black)
12	Support, Visor Left (White)
12	Support, Visor Left (Biscuit)
12	Support, Visor Right (Black)
12	Support, Visor Right (Biscuit)
12	Support, Visor Left (Black)
12	Support, Visor Right (White)
13	Endcap Left (Black)
13	Endcap Right (Black)
13	Endcap Left (Biscuit)
13	Endcap Right (Biscuit)
13	Endcap Right (White)
13	Endcap Left (White)
14	Support, Switch
15	W11731942 Whirlpool Slide Switch
16	Lens, Light
17	Button, Contro
17	WPL 8189942
17	Button, Control (Black)
18	WPL 8189943
18	WPL 8189944
18	WPL 8189945
19	WPL 8189948
19	WPL 8189947
19	WPL 8189946
20	Light, Indicator
21	WPL 8189950
21	WPL 8189951
21	WPL 8189949
22	WPW10252122 Whirlpool Switch Slide
24	Nut In Guide (2)
25	WPL 8190044
26	Damper
27	Cover, Exhaust Outlet
28	WPL 8190068
28	WPL 8190067
28	WPL 8190066
28	WPL 8190065
32	Guide, Ground
33	Washer
34	Screw
37	WPL 8189960
38	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
39	WPL 8190069
39	WPL 8190070
39	WPL 8190072
39	WPL 8190071
40	WPL 8189973
41	WPL 8189974
42	WPL 8189915
42	WPL 8189975
43	WPL 8189976
44	WPL 8189913
44	WPL 8189977
45	WPL 8189978
47	WPL 8189979
50	WPL 8189980
51	WPL 8189981
53	WPL 8189985
54	WPL ARI88612A4
54	WPL 4396273
54	WPL 8189986
