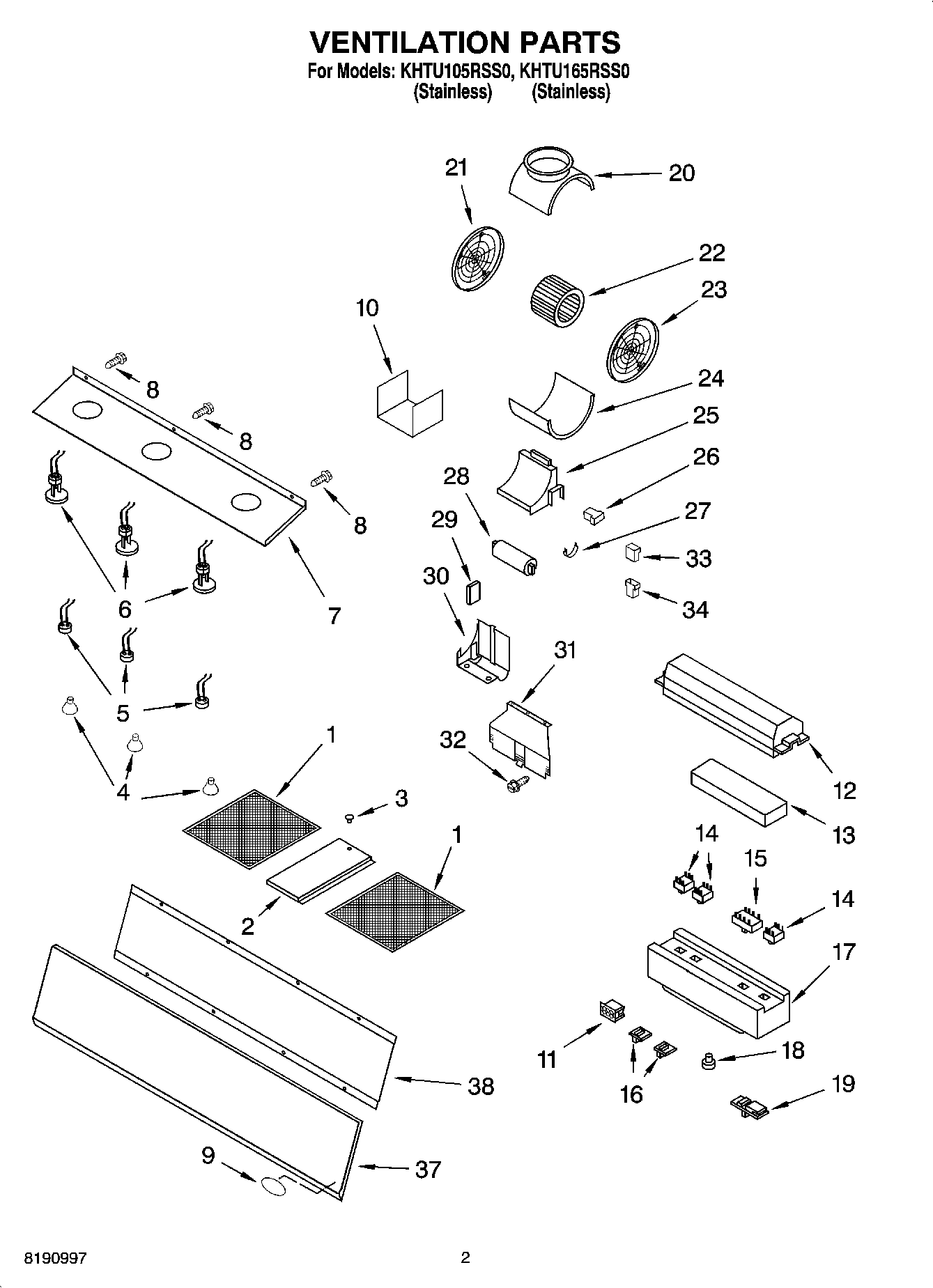

KHTU165RSS0 02 – VENTILATION PARTS
Written by
in
KHTU165RSS0 02 – VENTILATION PARTS
Products
Position
Product
1
WPW10252087 Whirlpool Range Hood Grease Filter
2
Panel, Spacer
3
Button, Plug
4
WPW10252088 Whirlpool Light Bulb
5
Holder, Bulb (6)
6
Support, Bulb
7
Support, Light (36“ Model)
7
Support, Light
8
Pin
9
Nameplate
10
Box, Wiring
11
Connector
12
Cover, Switch
13
Support, Switch
14
W11731942 Whirlpool Slide Switch
15
WPW10252122 Whirlpool Switch Slide
16
Button, On/Off
17
Box, Control
18
Cover, Lamp
19
Button, Mtr Speed
20
Housing, Upper
21
Support, Motor-SX
22
Motor, Blower
23
Support, Motor-DX
24
Housing, Lower
25
Cover, Wire
26
Connector
27
Cover, Wire
28
Capacitor
29
Cover, Wire
30
Cover, Wire
31
Bracket, Mounting
32
Screw (2)
33
Connector, Female
34
Connector, Male
37
Panel, Bottom
37
Panel, Bottom (36“ Model)
38
4396565 Whirlpool Filter
38
Cover, Front
38
Cover, Front (36“ Model)
38
ACCESSORY PARTS
←
