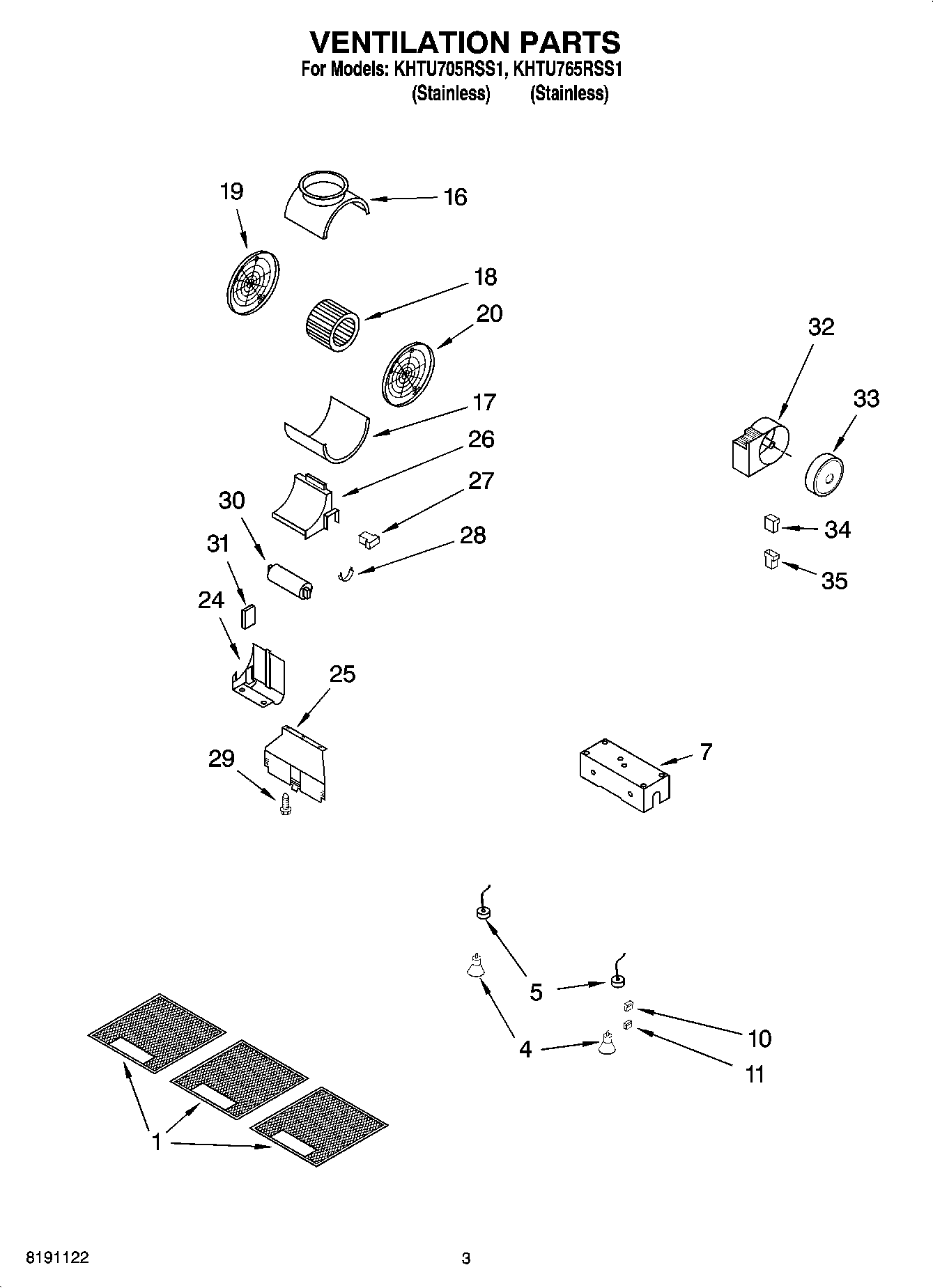

KHTU705RSS1 02 – VENTILATION PARTSadmin2025-04-26T11:56:36+00:00KHTU705RSS1 02 – VENTILATION PARTS
Products
| Position | Product |
|---|
| 1 | Filter, Grease (36`` (3)) |
| 1 | Filter, Grease (30`` (2)) |
| 4 | Bulb, 20W |
| 5 | Holder, Bulb (6) |
| 7 | Cover, Light (2) |
| 10 | Connector, Male |
| 11 | Connector, Female |
| 16 | Housing, Upper |
| 17 | Housing, Lower |
| 18 | Motor, Blower |
| 19 | Support, Motor-SX |
| 20 | Support, Motor-DX |
| 24 | Cover, Wire |
| 25 | Bracket, Mounting |
| 26 | Cover, Wire |
| 27 | Connector |
| 28 | Cover, Wire |
| 29 | Screw (2) |
| 30 | Capacitor |
| 31 | Cover, Wire |
| 32 | Support |
| 33 | WPW10252120 Whirlpool Transformer |
| 34 | Connector, Female |
| 35 | Optional Parts Not Included |
| 35 | Trim, Front (30`` Biscuit) |
| 35 | Trim, Front (30`` White) |
| 35 | Trim, Front (30`` Black) |
| 35 | Trim, Front (30`` Stainless Pro) |
| 35 | Trim, Front (30`` Meteorite Pro) |
| 35 | Trim, Front (36`` Biscuit) |
| 35 | Trim, Front (36`` White) |
| 35 | Trim, Front (36`` Black) |
| 35 | Trim, Front (36`` Stainless Pro) |
| 35 | Trim, Front (36`` Meteorite Pro) |
| 35 | Connector, Male |
