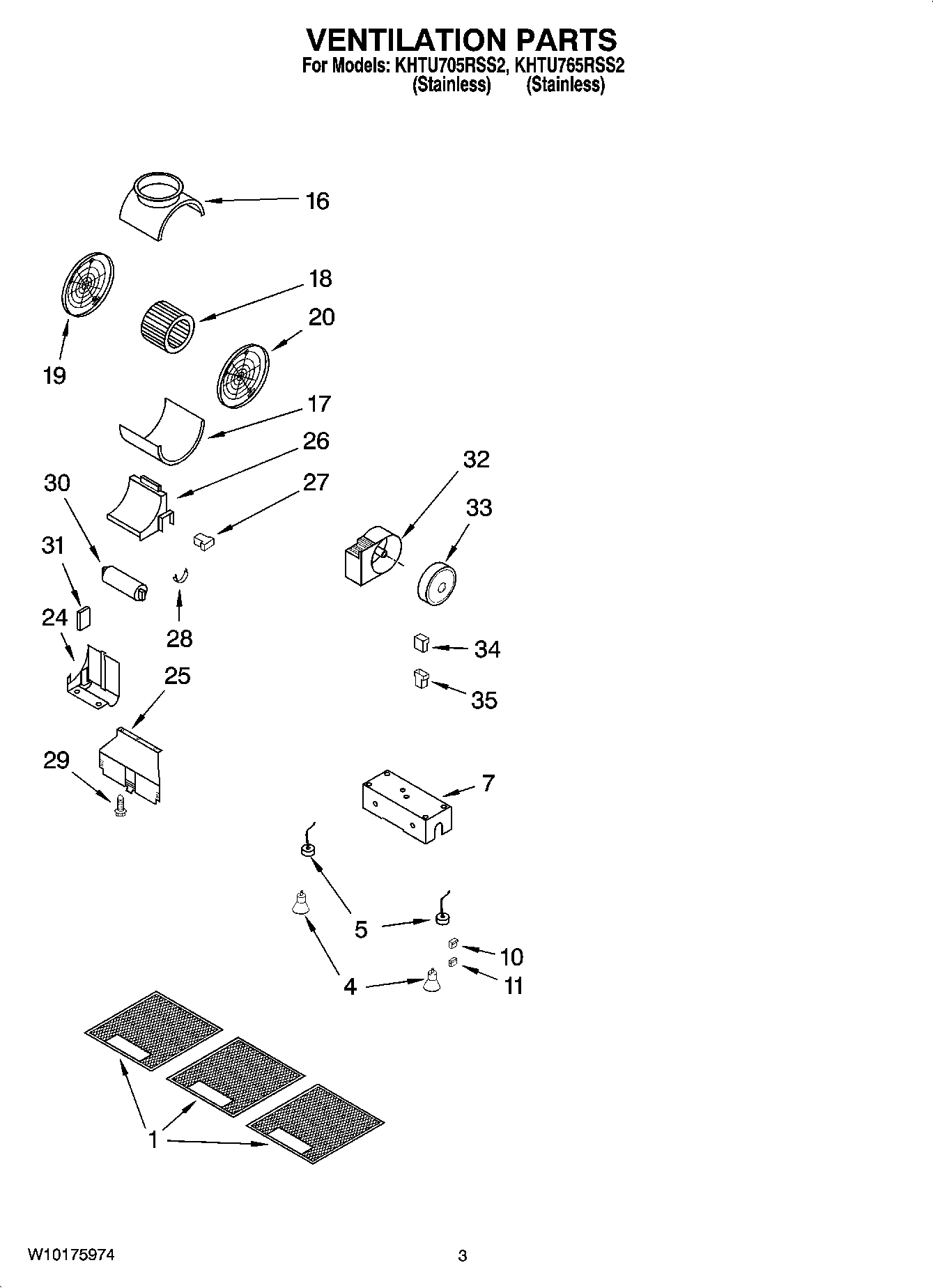

KHTU705RSS2 02 – VENTILATION PARTS

Products

PositionProduct
Trim, Front (36“ Stainless Pro)
Trim, Front (36“ Meteorite Pro)
Trim, Front (36“ Black)
Trim, Front (36“ White)
Trim, Front (36“ Biscuit)
Trim, Front (30“ Meteorite Pro)
Trim, Front (30“ Stainless Pro)
Trim, Front (30“ Black)
Trim, Front (30“ White)
Trim, Front (30“ Biscuit)
Optional Parts Not Included
1Filter, Grease (30“ (2))
1Filter, Grease (36“ (3))
4Bulb, 20W
5Holder, Bulb (6)
7Cover, Light (2)
10Connector, Male
11Connector, Female
16Housing, Upper
17Housing, Lower
18Motor, Blower
19Support, Motor-SX
20Support, Motor-DX
24Cover, Wire
25Bracket, Mounting
26Cover, Wire
27Connector
28Cover, Wire
29Screw (2)
30Capacitor
31Cover, Wire
32Support
33WPW10252120 Whirlpool Transformer
34Connector, Female
35Connector, Male
