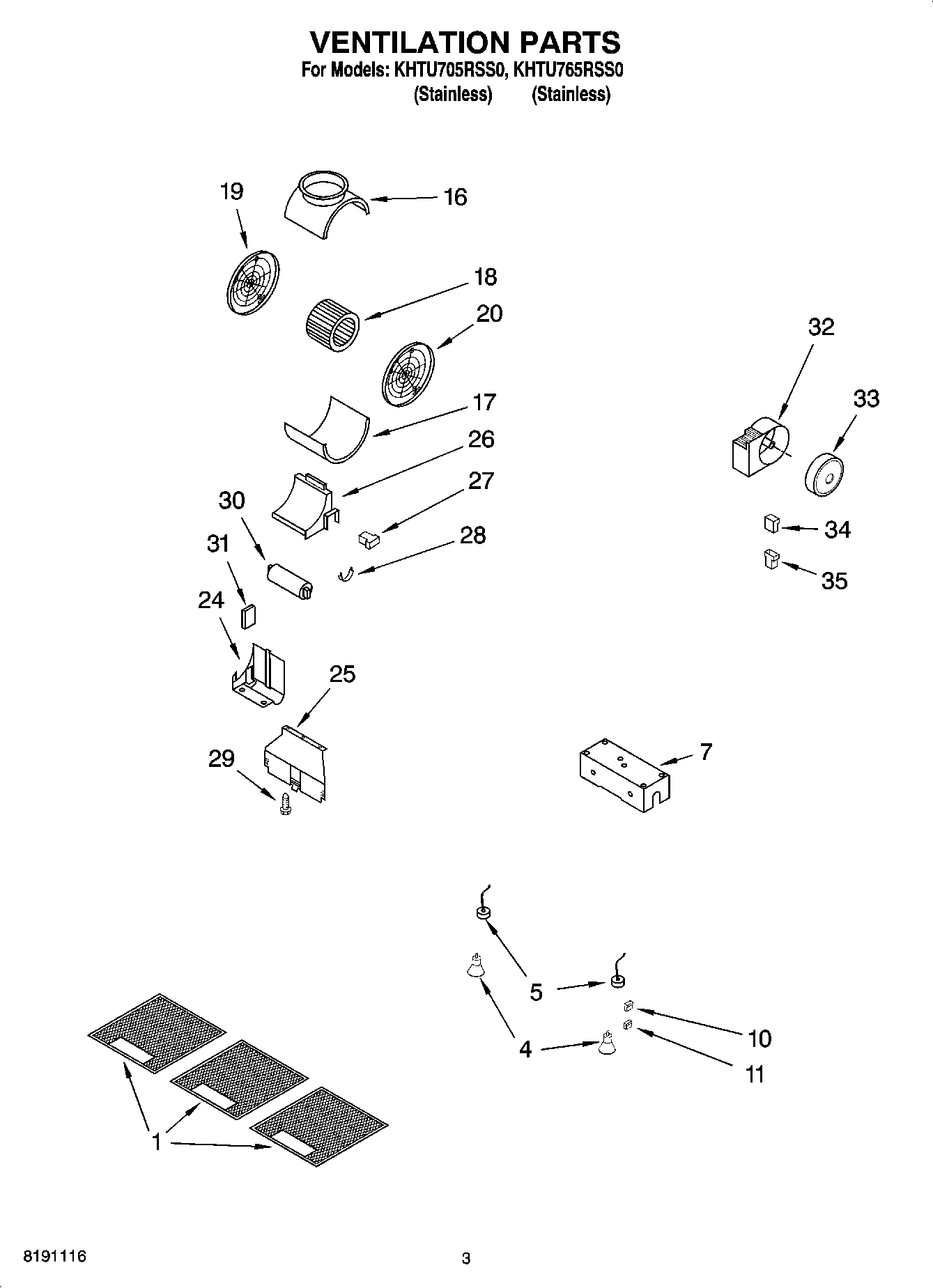

KHTU765RSS0 02 – VENTILATION PARTS

Products

Position	Product
1	Filter, Grease (36`` (3))
1	Filter, Grease (30`` (2))
4	Bulb, 20W
5	Holder, Bulb (6)
7	Cover, Light (2)
10	Connector, Male
11	Connector, Female
16	Housing, Upper
17	Housing, Lower
18	Motor, Blower
19	Support, Motor-SX
20	Support, Motor-DX
24	Cover, Wire
25	Bracket, Mounting
26	Cover, Wire
27	Connector
28	Cover, Wire
29	Screw (2)
30	Capacitor
31	Cover, Wire
32	Support
33	WPW10252120 Whirlpool Transformer
34	Connector, Female
35	OPTIONAL PARTS (NOT INCLUDED) Trim, Front
35	Trim, Front (30`` Biscuit)
35	Trim, Front (30`` White)
35	Trim, Front (30`` Black)
35	Trim, Front (30`` Stainless Pro)
35	Trim, Front (30`` Meteorite Pro)
35	Trim, Front (36`` Biscuit)
35	Trim, Front (36`` White)
35	Trim, Front (36`` Black)
35	Trim, Front (36`` Stainless Pro)
35	Trim, Front (36`` Meteorite Pro)
35	Connector, Male
