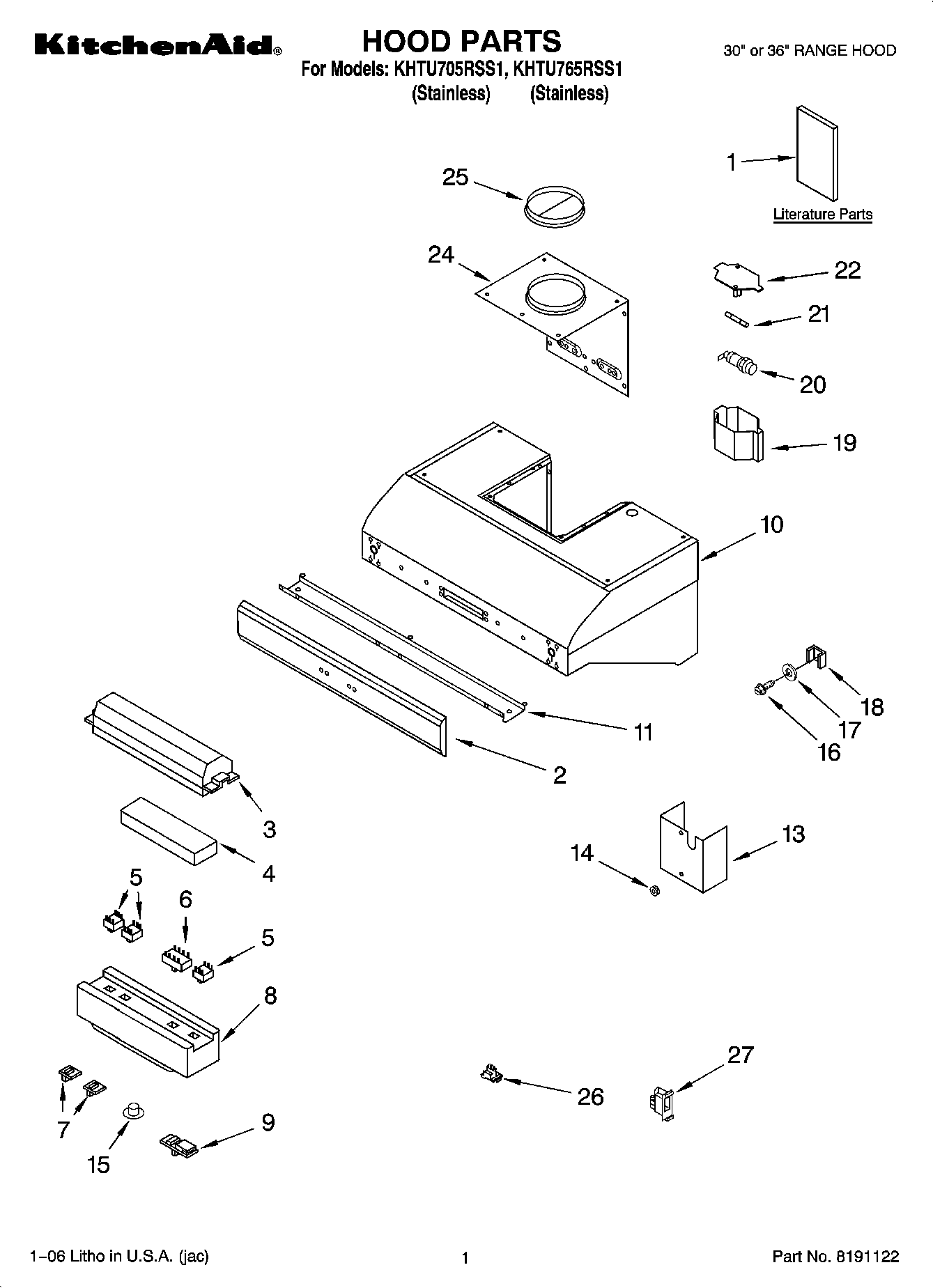

KHTU765RSS1 01 – HOOD PARTSadmin2025-04-26T11:56:25+00:00KHTU765RSS1 01 – HOOD PARTS
Products
| Position | Product |
|---|
| 1 | Wiring Diagram |
| 1 | Owners Manual |
| 2 | Trim, Decorative (36``) |
| 2 | Trim, Decorative (30``) |
| 3 | Cover, Switch |
| 4 | Support, Switch |
| 5 | W11731942 Whirlpool Slide Switch |
| 6 | WPW10252122 Whirlpool Switch Slide |
| 7 | Button, On/Off |
| 8 | Box, Control |
| 9 | Button, Mtr Speed |
| 10 | Casing Assembly (Not Serviced) |
| 11 | Support, Filter (36``) |
| 11 | Support, Filter (30``) |
| 13 | Box, Wiring |
| 14 | Relief, Strain |
| 15 | Cover, Lamp |
| 16 | Screw |
| 17 | Washer |
| 18 | Guide, Ground |
| 19 | Cover, Term Board |
| 20 | Block, Fuse |
| 21 | Fuse |
| 22 | Base, Terminal Cov |
| 24 | Cover, Blower |
| 25 | Damper |
| 26 | Connector |
| 27 | Connector, Wire |
