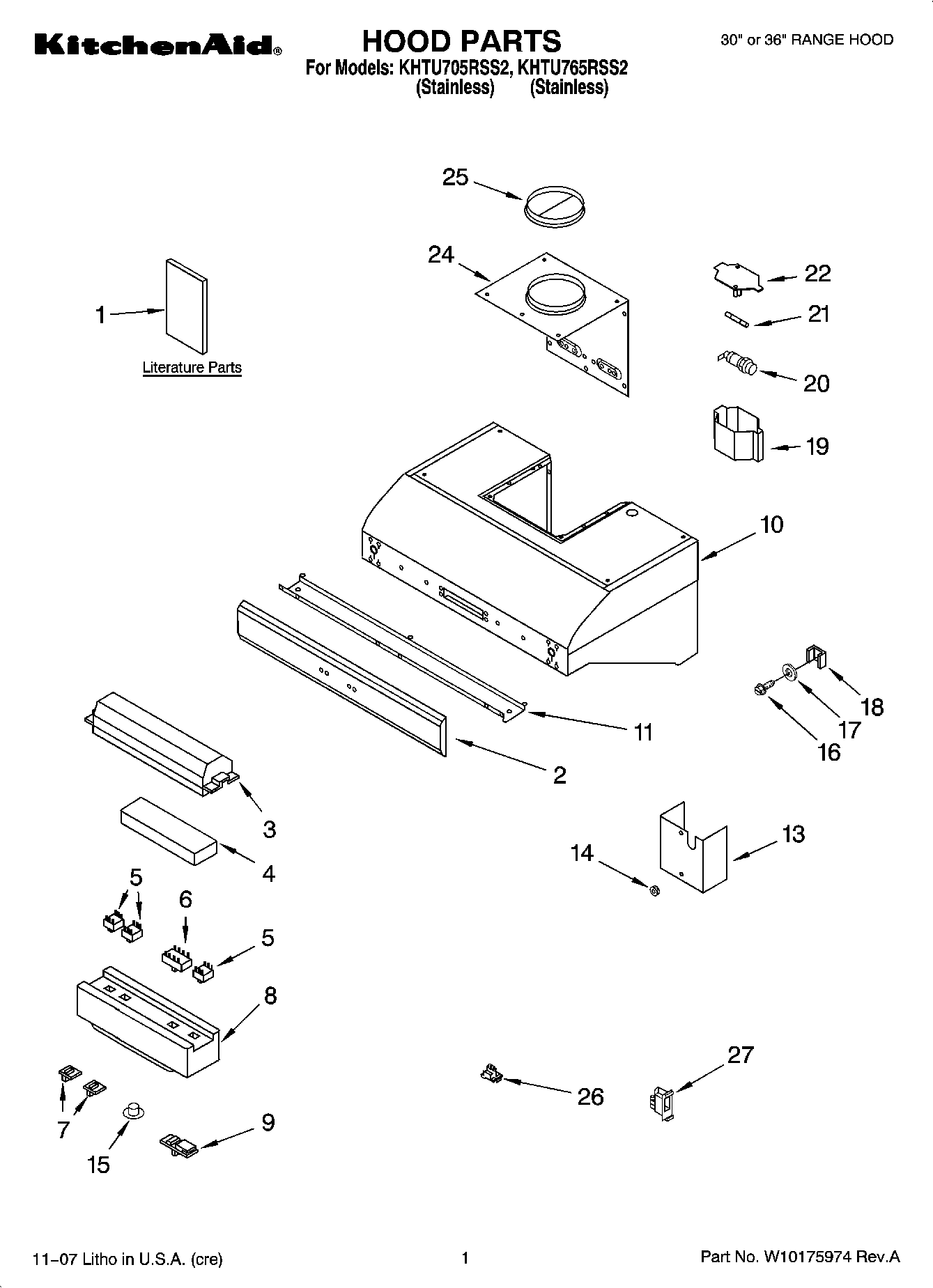

KHTU765RSS2 01 – HOOD PARTS

Products

Position	Product
1	Owners Manual
1	Wiring Diagram
2	Trim, Decorative 30“ (White)
2	Trim, Decorative 36“ (S.Steel)
2	Trim, Decorative 30“ (Black)
2	Trim, Decorative 30“ (Biscuit)
2	Trim, Decorative 30“ (S.Steel)
2	Trim, Decorative 36“ (White)
2	Trim, Decorative 36“ (Biscuit)
2	Trim, Decorative 36“ (Black)
3	Cover, Switch
4	Support, Switch
5	W11731942 Whirlpool Slide Switch
6	WPW10252122 Whirlpool Switch Slide
7	Button, On/Off
8	Box, Control
9	Button, Mtr Speed
10	Casing Assembly (Not Serviced)
11	Support, Filter (30“)
11	Support, Filter (36“)
13	Box, Wiring
14	Relief, Strain
15	Cover, Lamp
16	Screw
17	Washer
18	Guide, Ground
19	Cover, Term Board
20	Block, Fuse
21	Fuse
22	Base, Terminal Cov
24	Cover, Blower
25	Damper
26	Connector
27	Connector, Wire
