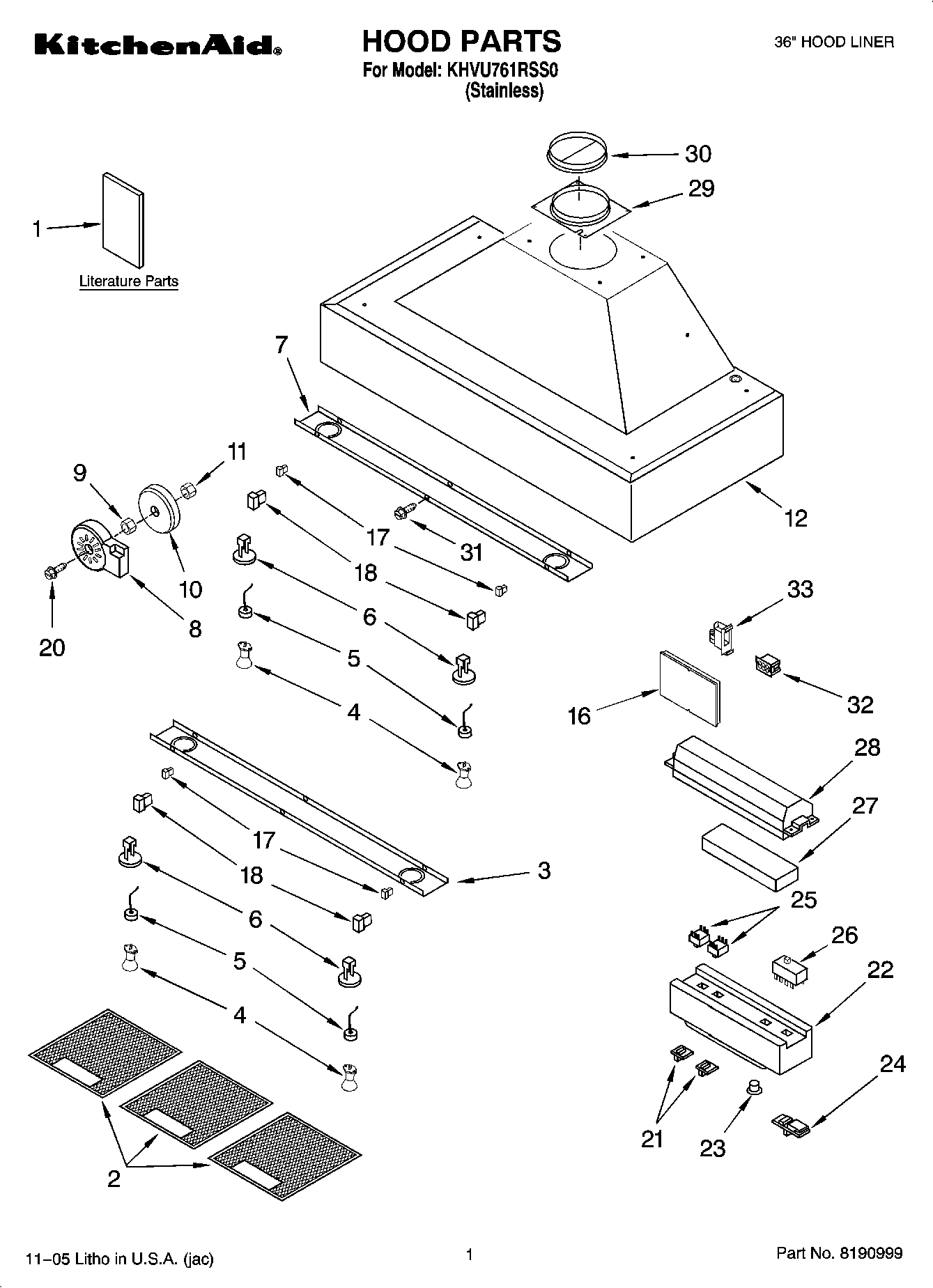

KHVU761RSS0 01 – HOOD PARTSadmin2025-04-26T11:58:04+00:00KHVU761RSS0 01 – HOOD PARTS
Products
| Position | Product |
|---|
| 1 | Wiring Diagram |
| 1 | Instructions, Installation / Use & Care Guide |
| 2 | WPW10281491 Whirlpool Filter |
| 3 | Support, Light |
| 4 | WPW10252088 Whirlpool Light Bulb |
| 5 | Holder, Bulb (6) |
| 6 | Support, Bulb (6) |
| 7 | Support, Light |
| 8 | Blower |
| 9 | NUT |
| 10 | Transformer |
| 11 | NUT |
| 12 | Hoodliner (Not Serviced) |
| 16 | Cover, Box |
| 17 | Connector, Male |
| 18 | Connector, Female |
| 20 | SCREW |
| 21 | Button, On/Off |
| 22 | Box, Control |
| 23 | Cover, Lamp |
| 24 | Button, Mtr Speed |
| 25 | W11731942 Whirlpool Slide Switch |
| 26 | WPW10252122 Whirlpool Switch Slide |
| 27 | Support, Switch |
| 28 | Cover, Switch |
| 29 | Extension, Flange |
| 30 | Damper |
| 31 | Pin |
| 32 | Connector |
| 33 | Connector, Wire |
