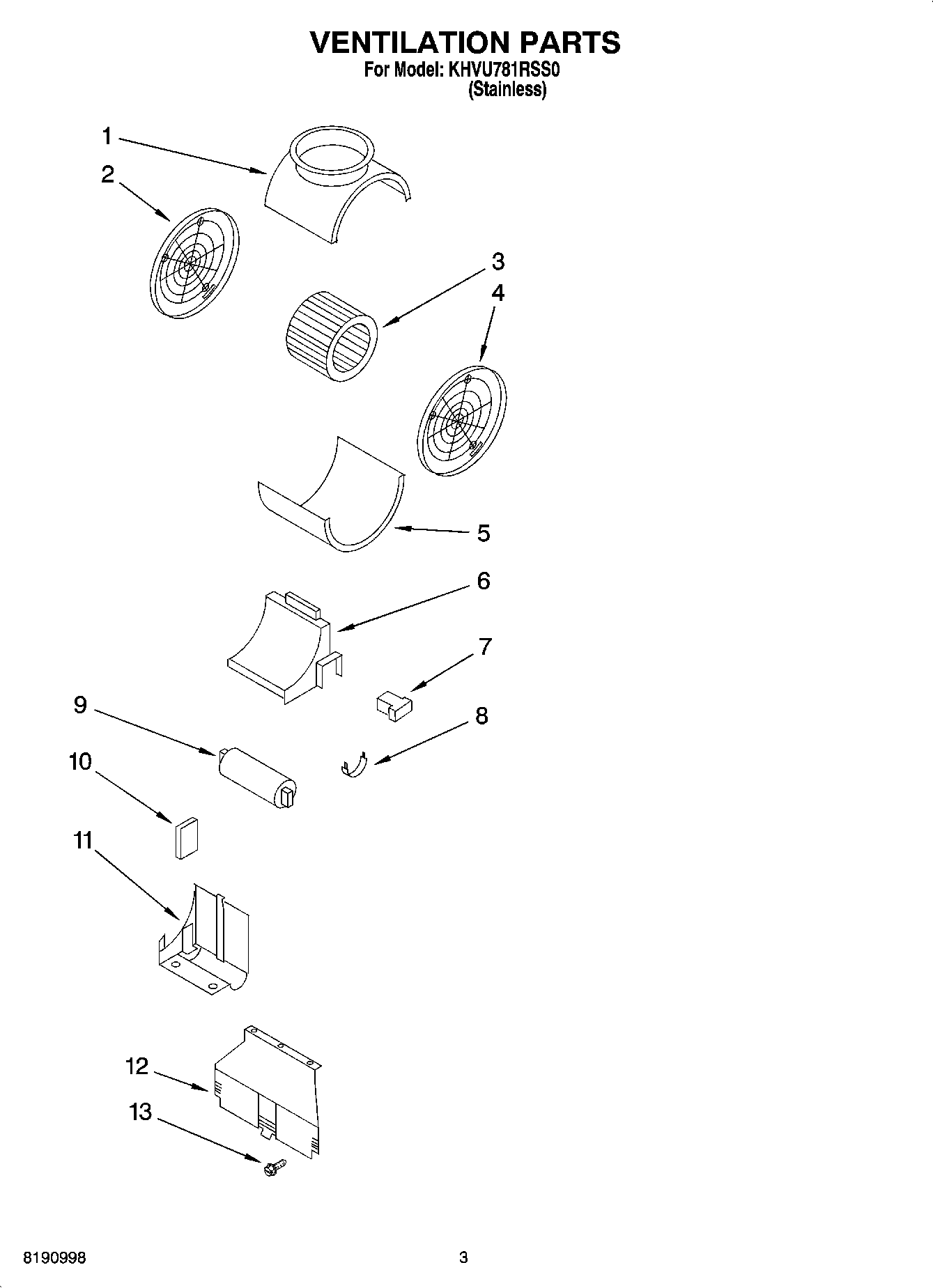

KHVU781RSS0 02 – VENTILATION PARTS

KHVU781RSS0 02 – VENTILATION PARTS

Written by

in

KHVU781RSS0 02 – VENTILATION PARTS

Products

Position	Product
1	Housing, Upper
2	Support, Motor-SX
3	Motor, Blower
4	Support, Motor-DX
5	Housing, Lower
6	Cover, Wire
7	Connector
8	Cover, Wire
9	Capacitor
10	Cover, Wire
11	Cover, Wire
12	Bracket, Mounting
13	10“ Duct
13	ACCESSORY PARTS
13	Screw (2)
13	Transition Kit
