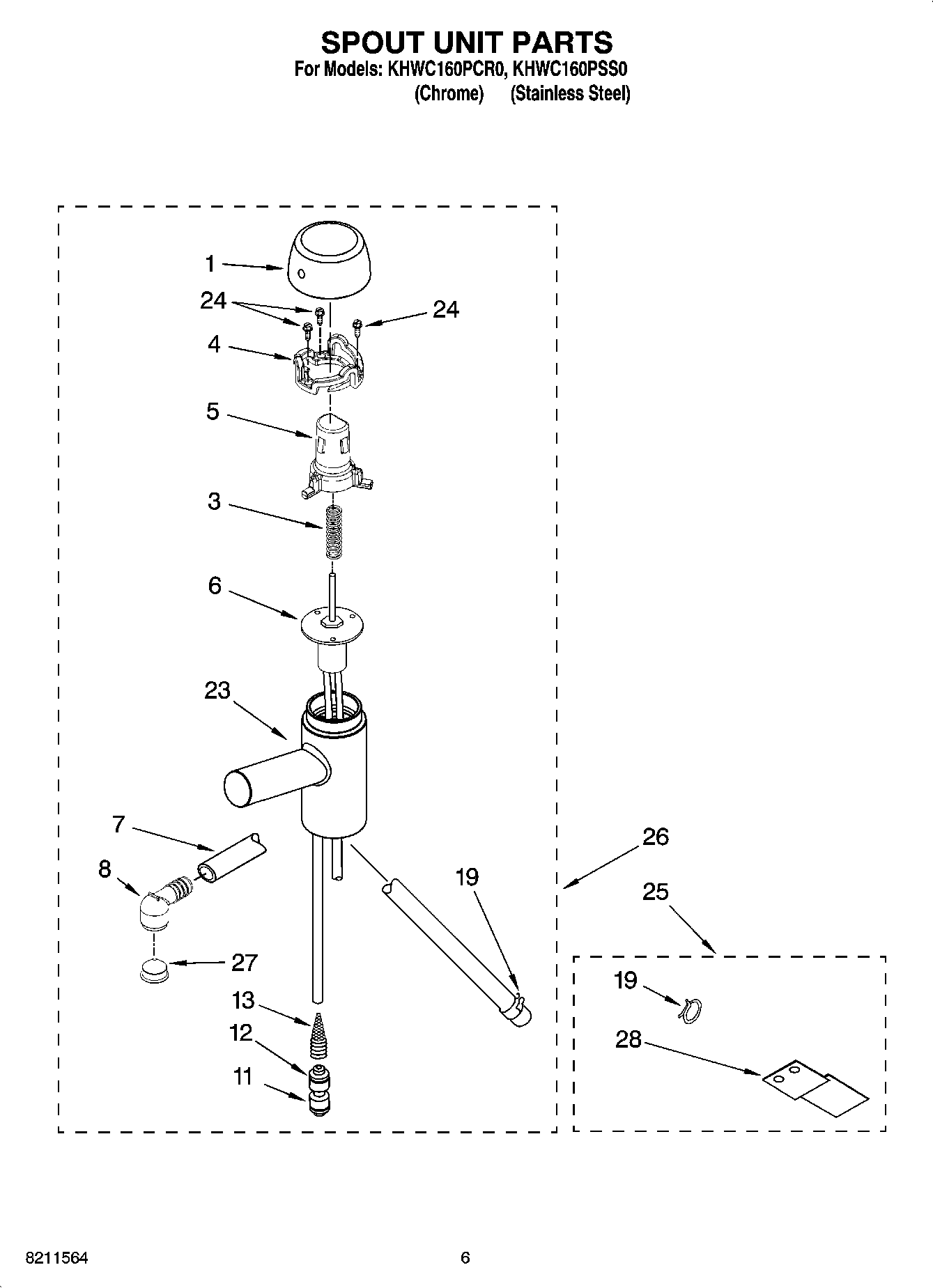

KHWC160PSS0 03 – SPOUT UNIT PARTS

KHWC160PSS0 03 – SPOUT UNIT PARTS

Written by

in

KHWC160PSS0 03 – SPOUT UNIT PARTS

Products

PositionProduct
1Knob (Stainless)
1Knob (Chrome)
3Spring, Compression
4Cam
5Cam, Follower
6Mechanical Valve
7Tube
8Elbow, Faucet
11WP2198677 Whirlpool Refrigerator Connector
12Cover, Collet
13Screen, Inlet
19Clamp, Hose
23Spout Body (Stainless)
23Spout Body (Chrome)
24WP4450038 Whirlpool Screw
25Installation Kit
26Spout Assembly (Stainless)
26Spout Assembly (Chrome)
27Flow Screen
28Bracket, Mounting
