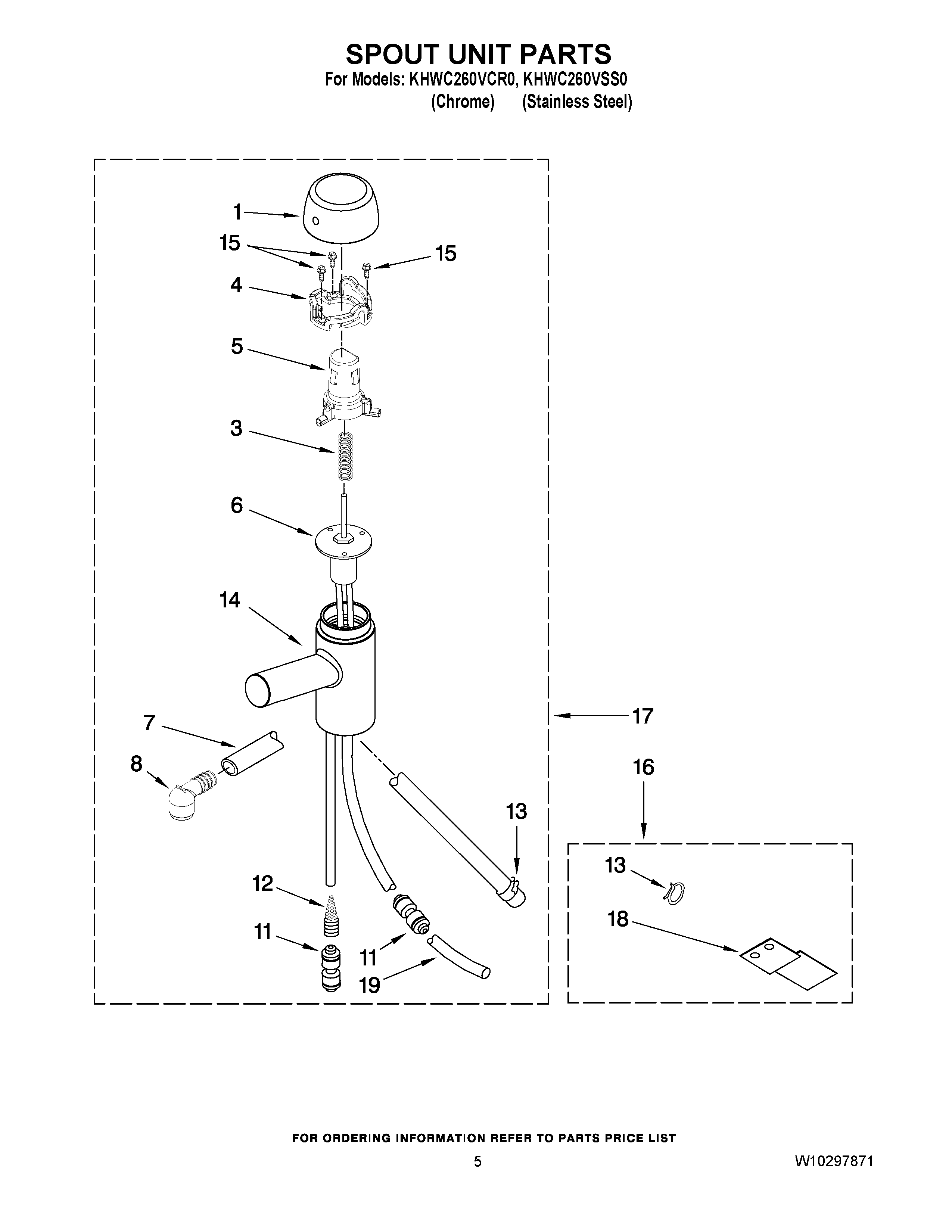

KHWC260VSS0 03 – SPOUT UNIT PARTS

Products

Position	Product
1	Knob (Stainless)
1	Knob (Chrome)
3	SPRING, COMPRESSION
4	CAM
5	CAM, FOLLOWER
6	MECHANICAL VALVE
7	TUBE
8	ELBOW, FAUCET
11	WATER UNION
12	SCREEN, INLET
13	CLAMP, TUBE
14	Spout Body (Chrome)
14	Spout Body (Stainless)
15	SCREW
16	INSTALLATION KIT
17	SPOUT ASSEMBLY (STAINLESS)
17	SPOUT ASSEMBLY (CHROME)
18	BRACKET, MOUNTING
19	TUBING
