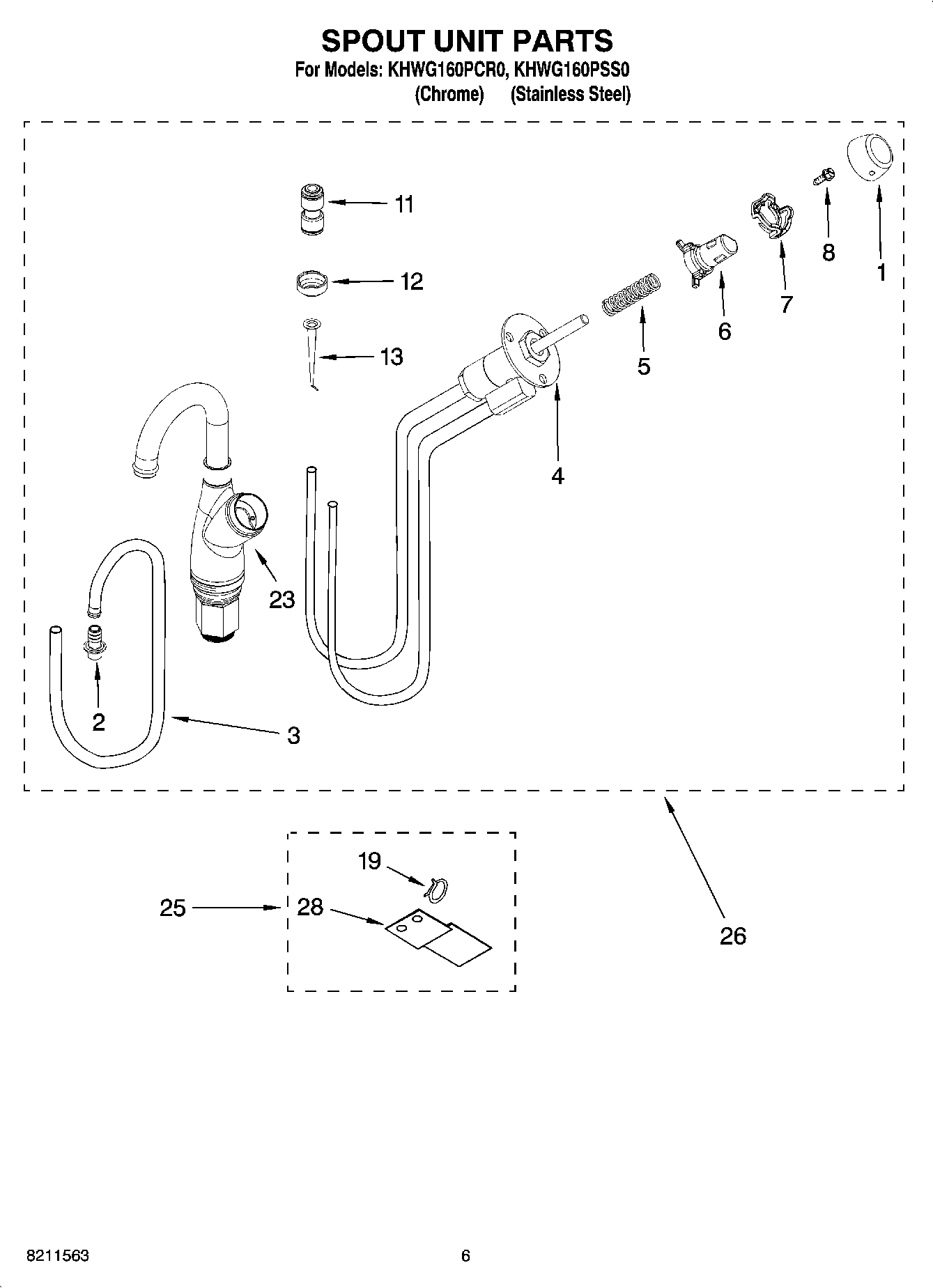

KHWG160PSS0 03 – SPOUT UNIT PARTS

Products

PositionProduct
1Knob (Stainless)
1Knob (Chrome)
2Adapter, Hose
3Tube
4Mechanical Valve
5Spring, Compression
6Cam, Follower
7Cam
8WP4450038 Whirlpool Screw
11WP2198677 Whirlpool Refrigerator Connector
12Cover, Collet
13Screen, Inlet
19Clamp, Hose
23Spout Body (Stainless)
23Spout Body (Chrome)
25Installation Kit
26WPW10115541 Whirlpool Spout Assembly
26Spout Assembly (Stainless)
28Bracket, Mounting
