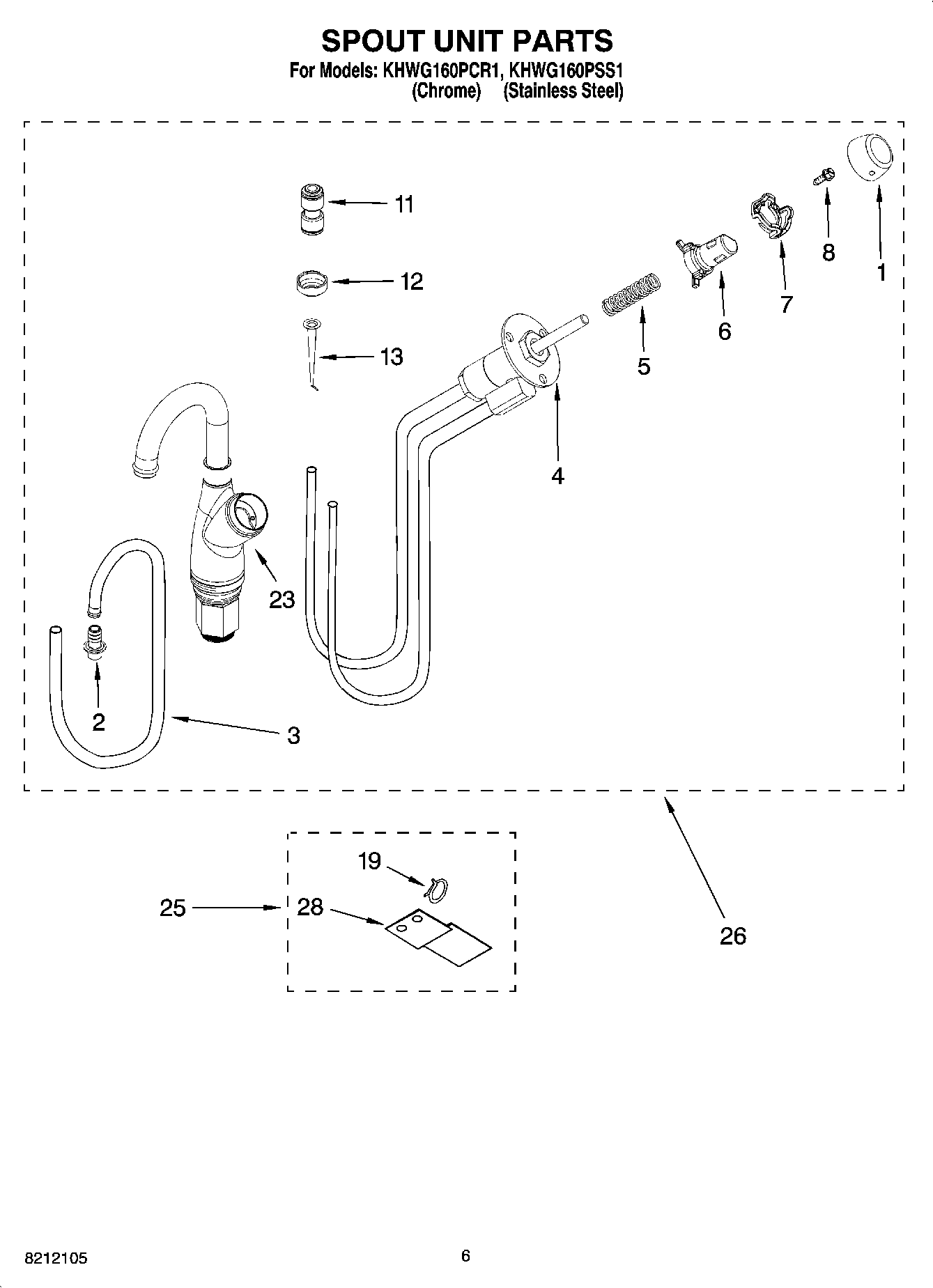

KHWG160PSS1 03 – SPOUT UNIT PARTS

Products

Position	Product
1	Knob (Stainless)
1	Knob (Chrome)
2	Adapter, Hose
3	Tube
4	Mechanical Valve
5	Spring, Compression
6	Cam, Follower
7	Cam
8	WP4450038 Whirlpool Screw
11	WP2198677 Whirlpool Refrigerator Connector
12	Cover, Collet
13	Screen, Inlet
19	Clamp, Hose
23	Spout Body (Stainless)
23	Spout Body (Chrome)
25	Installation Kit
26	WPW10115541 Whirlpool Spout Assembly
26	Spout Assembly (Stainless)
28	Bracket, Mounting
