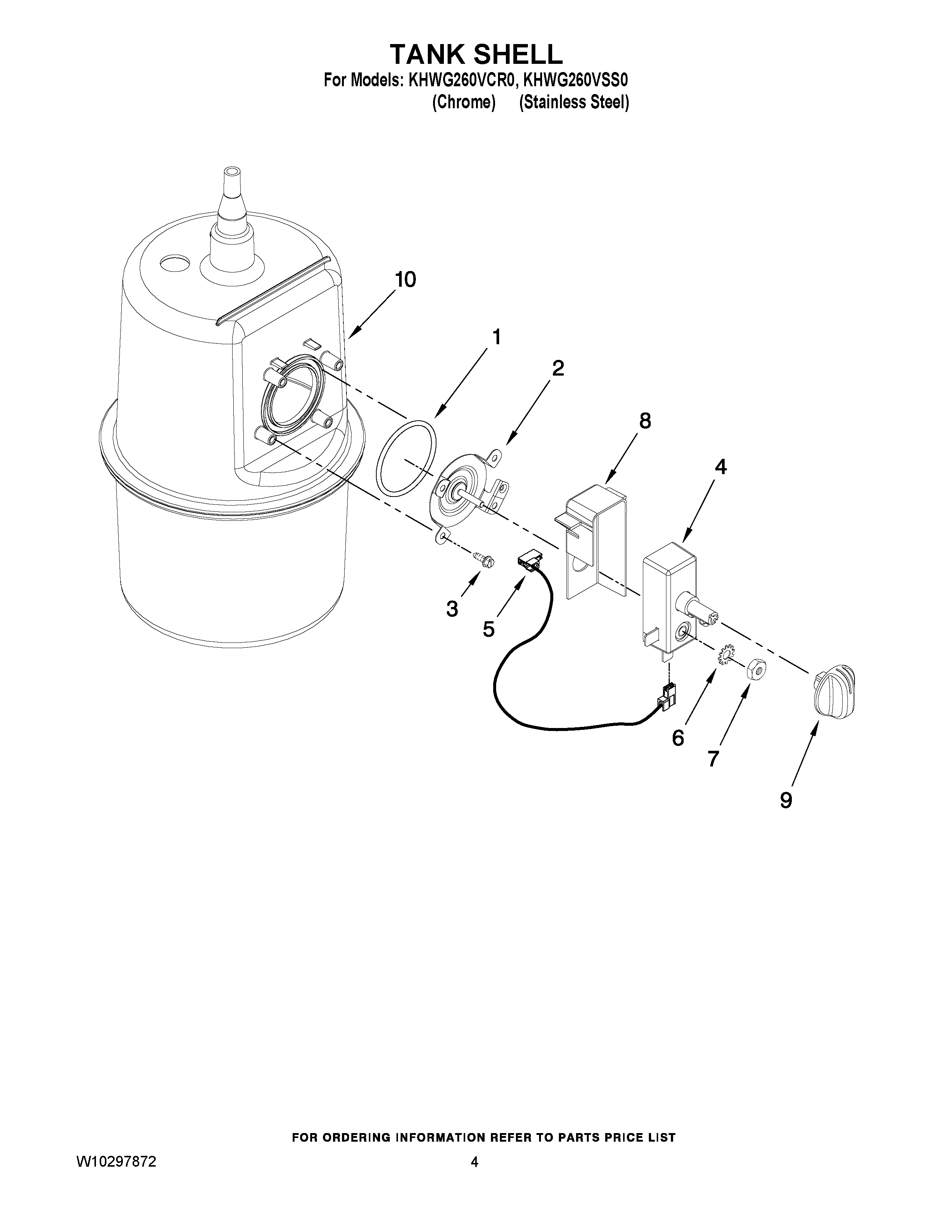

KHWG260VCR0 02 – TANK SHELL
Products
| Position | Product |
|---|---|
| 1 | O-RING |
| 2 | PLATE, SENSORS |
| 3 | SCREW |
| 4 | THERMOSTAT |
| 5 | W10185237 Whirlpool TCO Wire |
| 6 | WASHER |
| 7 | NUT |
| 8 | SHIELD, THERMOSTAT |
| 9 | KNOB |
| 10 | TANK |
