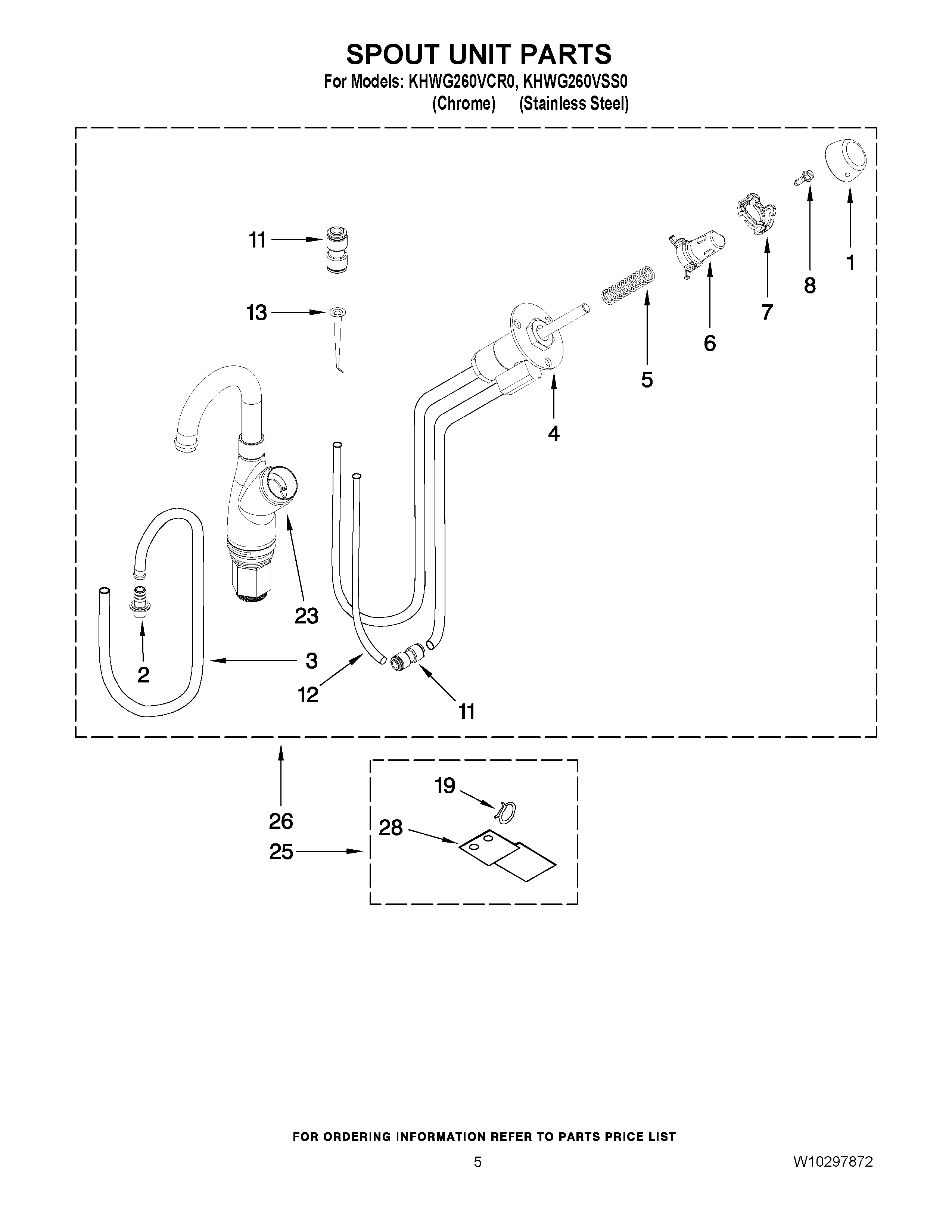

KHWG260VCR0 03 – SPOUT UNIT PARTS

Products

Position	Product
1	Knob (Chrome)
1	Knob (Stainless)
2	ADAPTER, HOSE
3	TUBE
4	MECHANICAL VALVE
5	SPRING, COMPRESSION
6	CAM, FOLLOWER
7	CAM
8	SCREW
11	WATER UNION
12	TUBING
13	SCREEN, INLET
19	CLAMP, TUBE
23	Spout Body (Chrome)
23	Spout Body (Stainless)
25	INSTALLATION KIT
26	SPOUT ASSEMBLY (STAINLESS)
26	WPW10115541 Whirlpool Spout Assembly
28	BRACKET, MOUNTING
