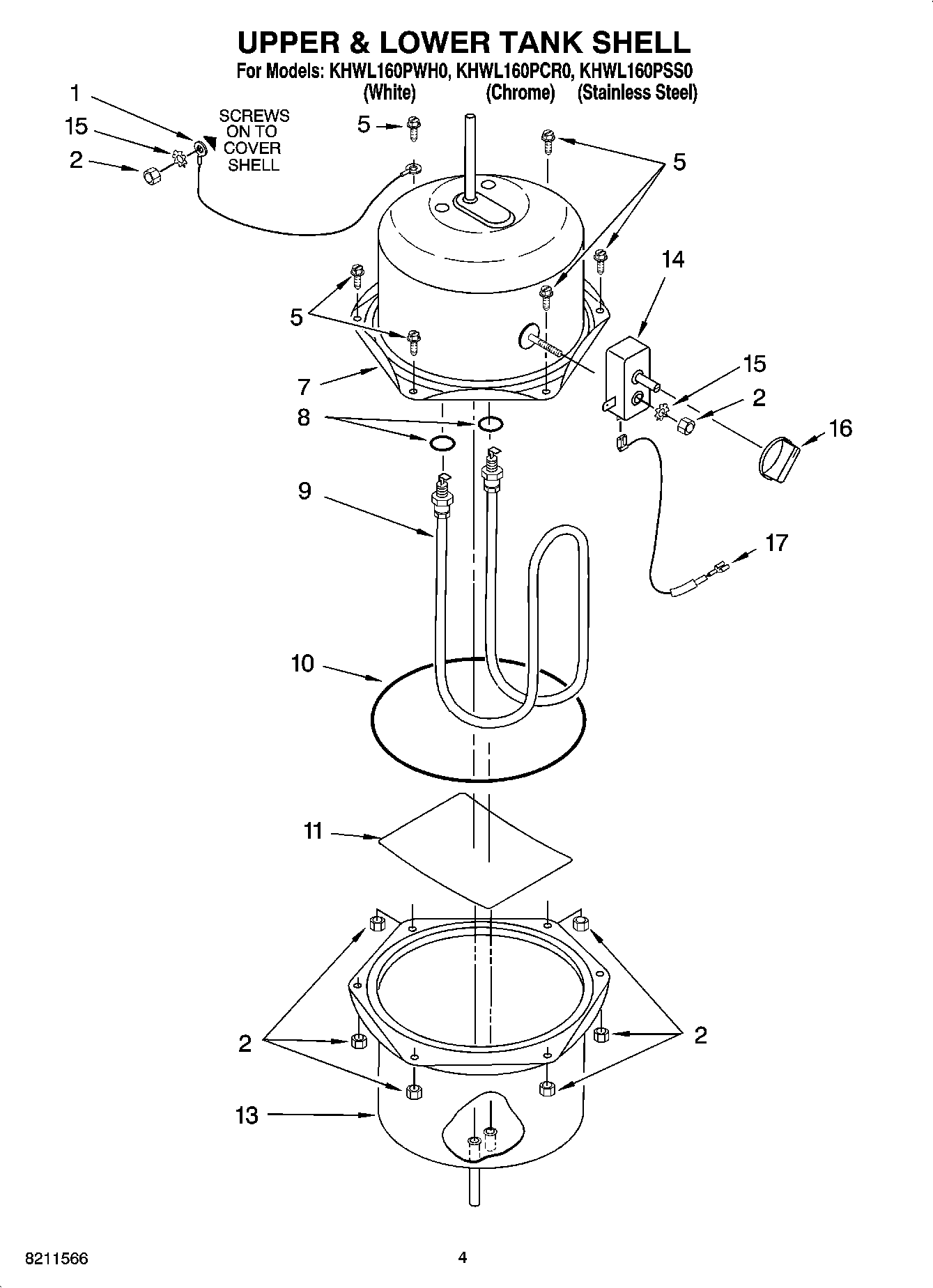

KHWL160PWH0 02 – UPPER & LOWER TANK SHELL

Products

Position	Product
1	Ground Wire
2	Nut, Mounting
5	WPW10068250 Whirlpool Dishwasher Screw
7	Shell, Tank Upper
8	``O``, Ring
9	Element, Heating (Includes item No.6)
10	O-Ring
11	Deflector
13	Shell, Tank Lower
14	THERMOSTAT
15	4159493 Whirlpool Lockwasher
16	Knob, Thermostat
17	Fuse, Thermal
