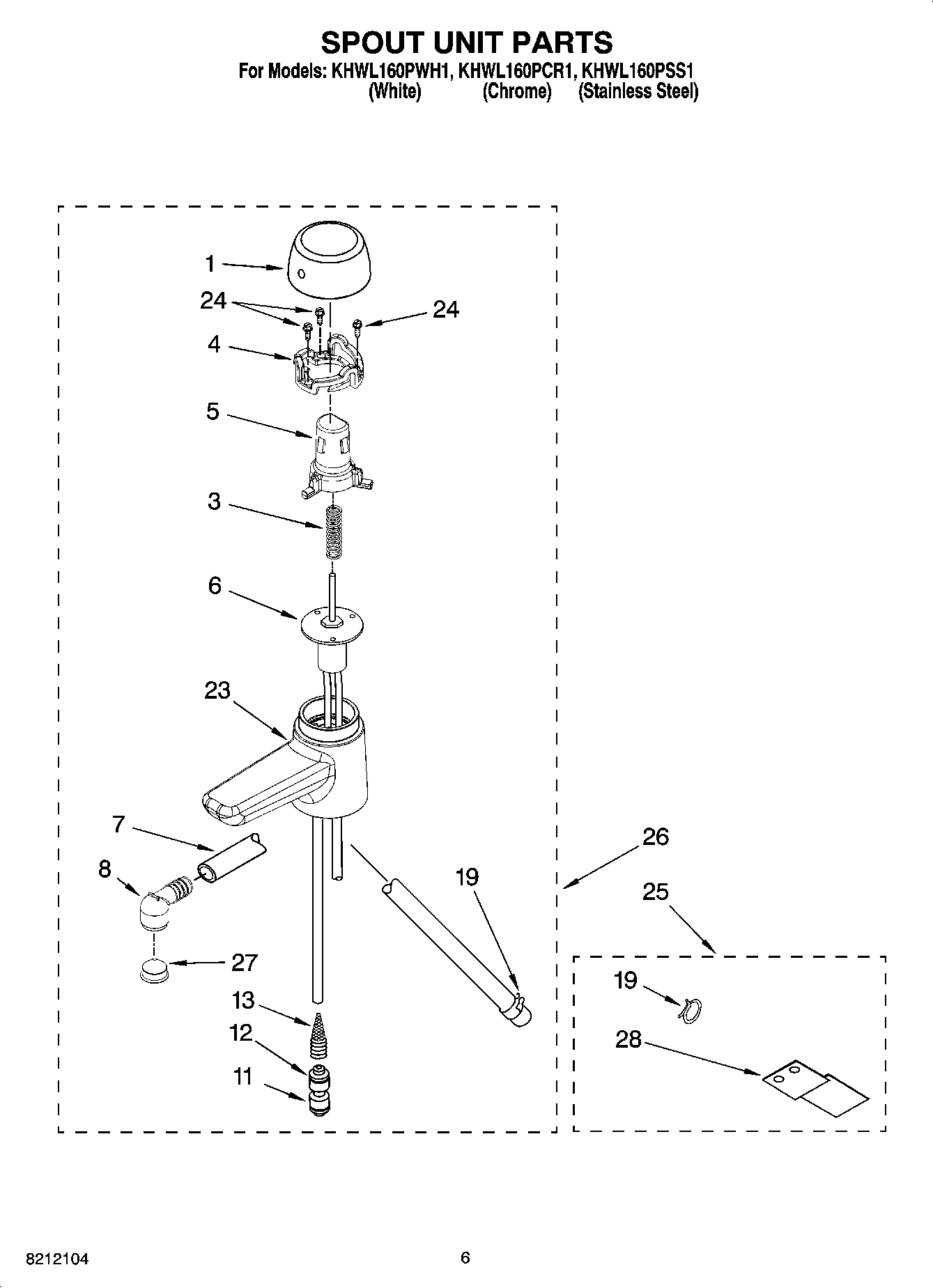

KHWL160PWH1 03 – SPOUT UNIT PARTS

Products

Position	Product
1	Knob (White)
1	Knob (Chrome)
1	Knob (Stainless)
3	Spring, Compression
4	Cam
5	Cam, Follower
6	Mechanical Valve
7	Tube
8	Elbow, Faucet
11	WP2198677 Whirlpool Refrigerator Connector
12	Cover, Collet
13	Screen, Inlet
19	Clamp, Hose
23	Spout Body (Chrome)
23	Spout Body (White)
23	Spout Body (Stainless)
24	WP4450038 Whirlpool Screw
25	Installation Kit
26	Spout Assembly (Chrome)
26	Spout Assembly (Stainless)
26	Spout Assembly (White)
27	Flow Screen
28	Bracket, Mounting
