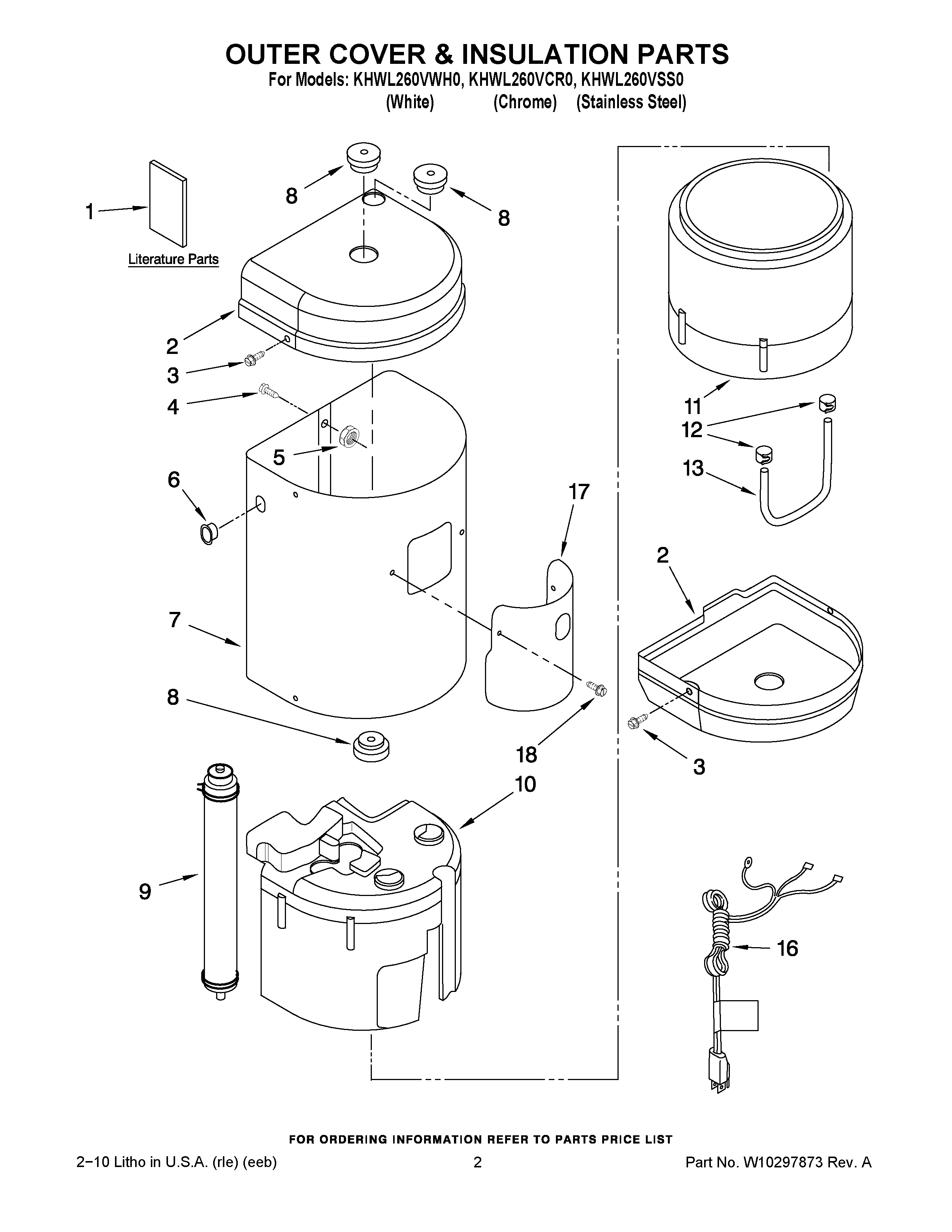

KHWL260VSS0 01 – OUTER COVER & INSULATION PARTS

Written by

Products

Position	Product
1	INSTRUCTIONS, INSTALLATIONS & USE & CARE GUIDE
2	END CAP
3	SCREW, DRIVE
4	SCREW, MACHINE
5	NUT
6	STRAIN RELEIF, POWER CORD
7	SHELL
8	BUSHING, MOLDED
9	DISPLACER
10	INSULATION, TOP
11	INSULATION, BOTTOM
12	CLAMP, TUBE
13	Energy Guide
16	CORD-POWER
17	FRONT COVER
18	SCREW
