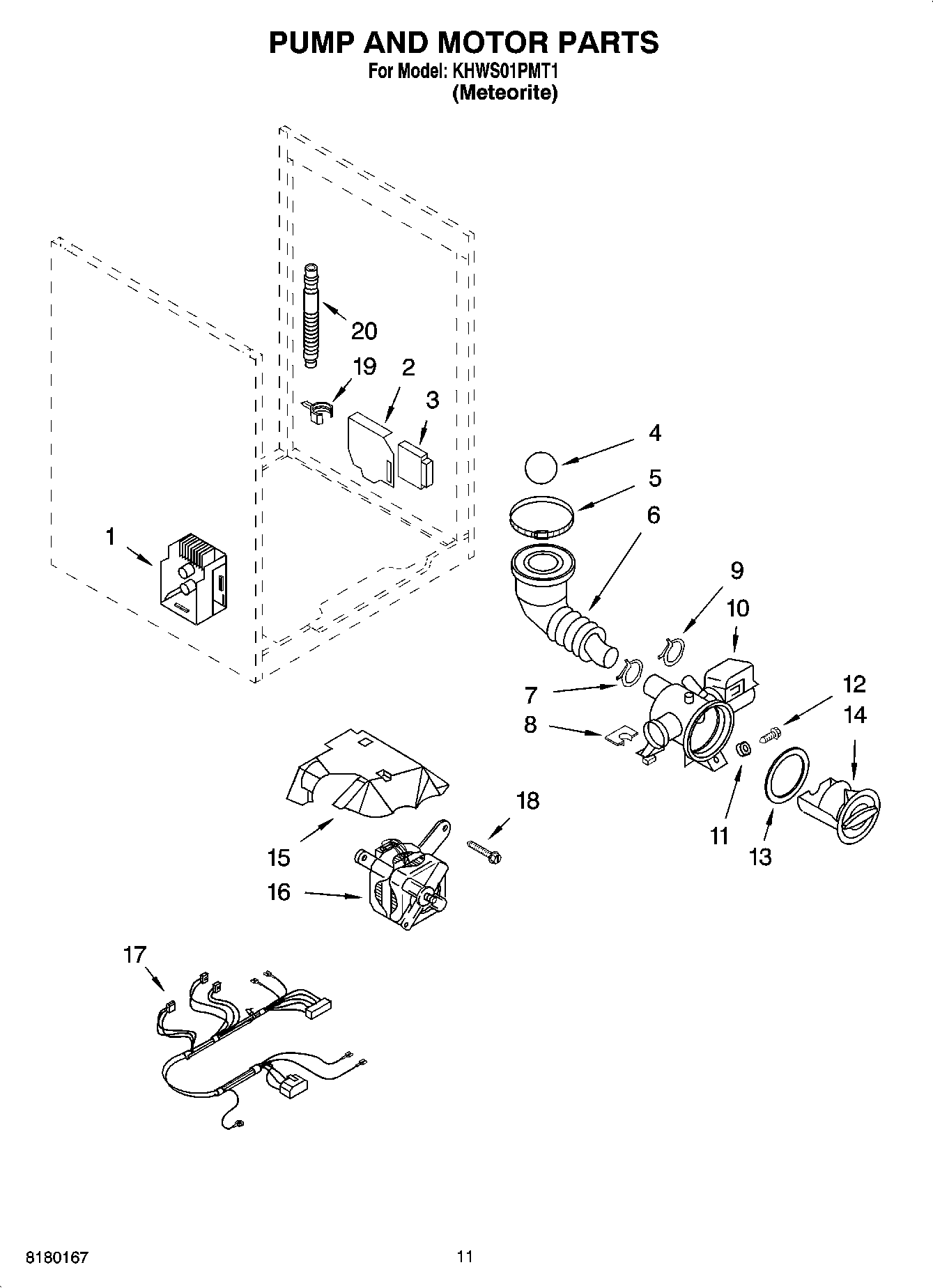

KHWS01PMT1 06 – PUMP AND MOTOR PARTS OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
1	W10756692-includeCORE Whirlpool W10756692 Washer Electronic Motor Control Board + Core
2	Bracket, Relay
3	RELAY
4	W10121657 Whirlpool Ball
5	WP696392 Whirlpool Hose Clamp
6	WPW10467168 Whirlpool Hose Assembly
7	WP285655 Whirlpool Hose Clamp
8	Damper, Rubber (Rear)
9	WP3367052 Whirlpool Hose Clamp
10	280187 Whirlpool Washer Electronic Water Drain Pump
11	Damper, Rubber (Front)
12	Screw
13	Seal, Filter Cap
14	Cap, Filter
15	Cover, Motor
16	Motor
17	Harness, Motor
18	Bolt, Motor
19	8182209 Whirlpool Clip
20	WPW10003250 Whirlpool Hose
20	350938 Whirlpool Spray Gun
20	285863 Whirlpool Drain Hose Extension 4'
20	W10202939 Whirlpool Touch Up
20	ACCESSORY PARTS

No products found
