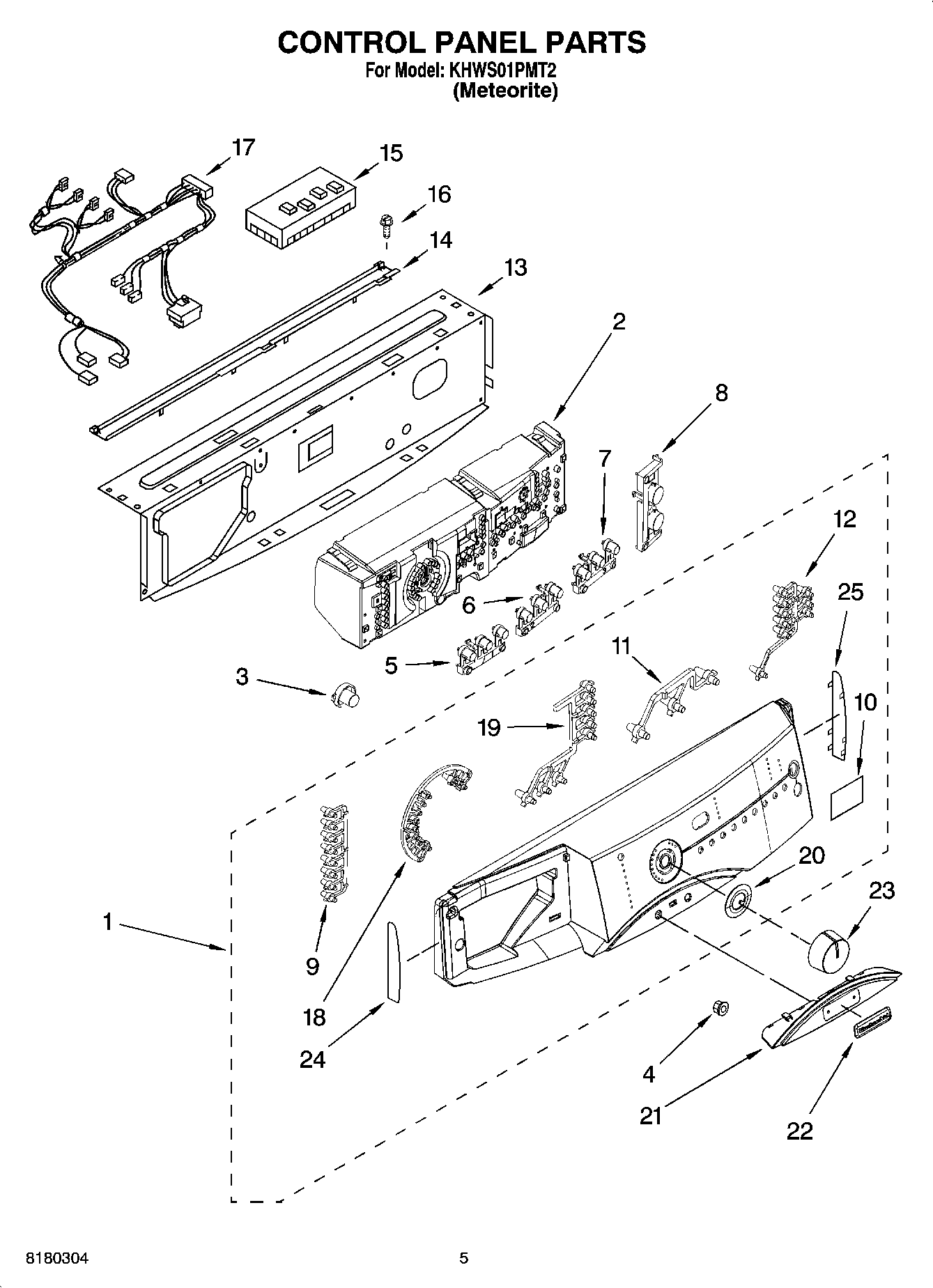

KHWS01PMT2 03 – CONTROL PANEL PARTS

Products

Position	Product
1	Panel, Control
2	User Interface
3	Button, Power (Meteorite)
4	WP2004333 Whirlpool Refrigerator Nut
5	Button Set, Left (Meteorite)
6	Button Set, Middle (Meteorite)
7	Button Set, Right (Meteorite)
8	Button Set, Start
9	Light, Indicator (Status)
10	Window, Display
11	Light, Indicator (3 Lights)
12	Light, Indicator (9 Lights)
13	Brace, Front Top
14	Channel, Water
15	Microcomputer, Machine Control
16	WP488729 Whirlpool Refrigerator Door Screw
17	Harness, Wiring (Main)
18	Light, Indicator (Program)
19	Light, Indicator (8 Lights)
20	Bezel, Knob
21	Overlay, Door
22	MEDALLION
23	Knob, Control
24	Endcap, Left (Meteorite)
25	Endcap, Right (Meteorite)
