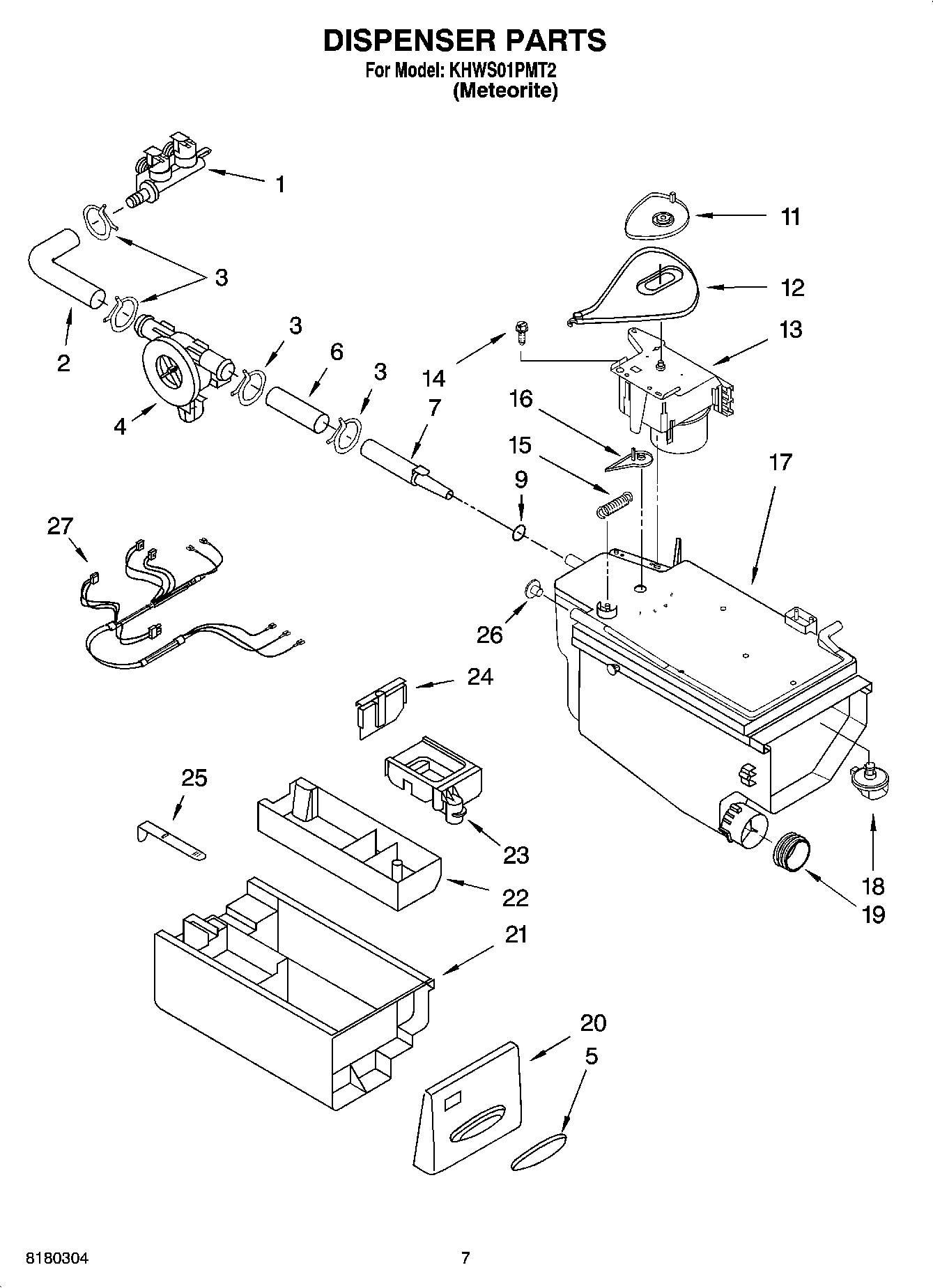

KHWS01PMT2 04 – DISPENSER PARTSadmin2025-04-26T11:57:16+00:00KHWS01PMT2 04 – DISPENSER PARTS
Products
| Position | Product |
|---|
| 1 | WP8181694 Whirlpool Washer Inlet Valve |
| 2 | WP8181710 Whirlpool Hose Assembly |
| 3 | WP489503 Whirlpool Refrigerator Clamp |
| 4 | FLOWMETER WASHER INLET |
| 5 | Cushion, Handle |
| 6 | Hose, Flowmeter |
| 7 | Nozzle, Inlet |
| 9 | O-Ring |
| 11 | Cam, Actuator |
| 12 | Lever, Water Distribution |
| 13 | WPW10665207 Whirlpool Dishwasher Switch |
| 14 | WP3400805 Whirlpool Screw Assembly |
| 15 | Spring, Lever |
| 16 | Connection, Lever |
| 17 | DISPENSER |
| 18 | WP8181712 Whirlpool Nozzle |
| 19 | WP8181747 Whirlpool Seal Assembly |
| 20 | Handle, Drawer (Includes Illus. 24) (Meteorite) |
| 21 | WP8181720 Whirlpool Drawer Assembly |
| 22 | WP8181722 Whirlpool Dispenser Assembly |
| 23 | Siphon, Bleach/Softener (Meteorite) |
| 24 | Separator (Meteorite) |
| 25 | WP8181721 Whirlpool Retainer |
| 26 | CAP |
| 27 | Harness, Wiring (Inlet Valve) |
