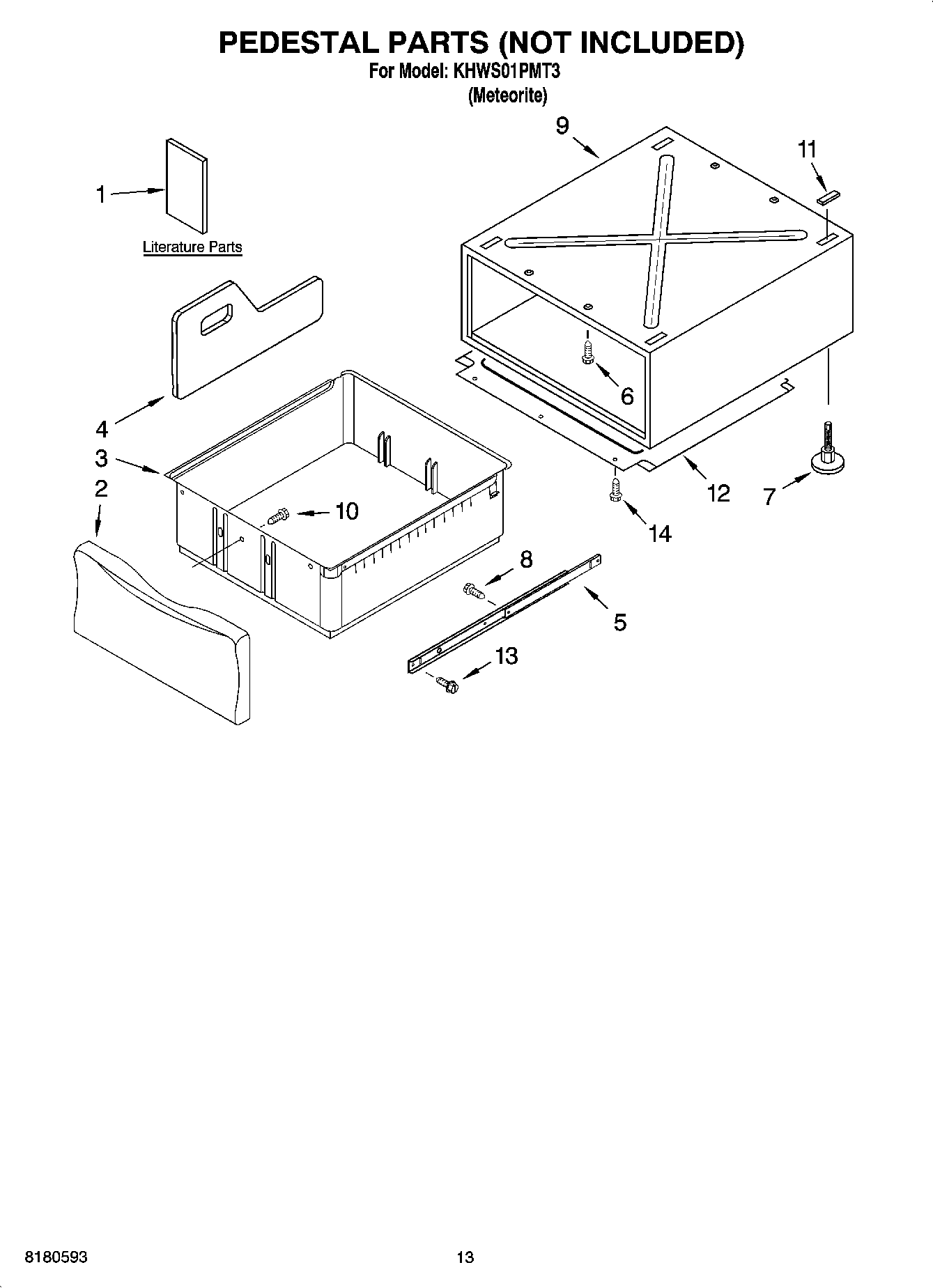

KHWS01PMT3 07 – PEDESTAL PARTS (NOT INCLUDED), OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350938 Whirlpool Spray Gun
	ACCESSORY PARTS
	ACCESSORY PARTS, REAR GUARD
	285863 Whirlpool Drain Hose Extension 4'
	W10202939 Whirlpool Touch Up
1	Literature Parts (Installation Instructions)
1	Literature Parts (Parts List)
2	Drawer Front Assembly (Biscuit)
2	Drawer Front Assembly (Meteorite)
2	Drawer Front Assembly (Pewter)
2	Drawer Front Assembly (Graphite)
2	Drawer Front Assembly (White)
3	For LAB2700PMT
3	Drawer Bin (For Model Numbers LAB2700MQ, LAB2700MT, LAB2700MK and LAB2700ML)
4	For LAB2700PMT
4	Divider, Drawer (Set Of 2) (For Model Numbers LAB2700MQ, LAB2700MT, LAB2700MK and LAB2700ML)
5	WP8578394 Whirlpool Slide Assembly
6	WPW10346892 Whirlpool Screw
7	WP8563585 Whirlpool Foot Assembly
8	WP3388228 Whirlpool Screw
9	Cabinet (Not Serviced)
10	WP1163283 Whirlpool Air Conditioner Screw
11	Pad (4)
12	Pan, Bottom
13	WP9740848 Whirlpool Dishwasher Screw
14	WP90767 Whirlpool Screw
