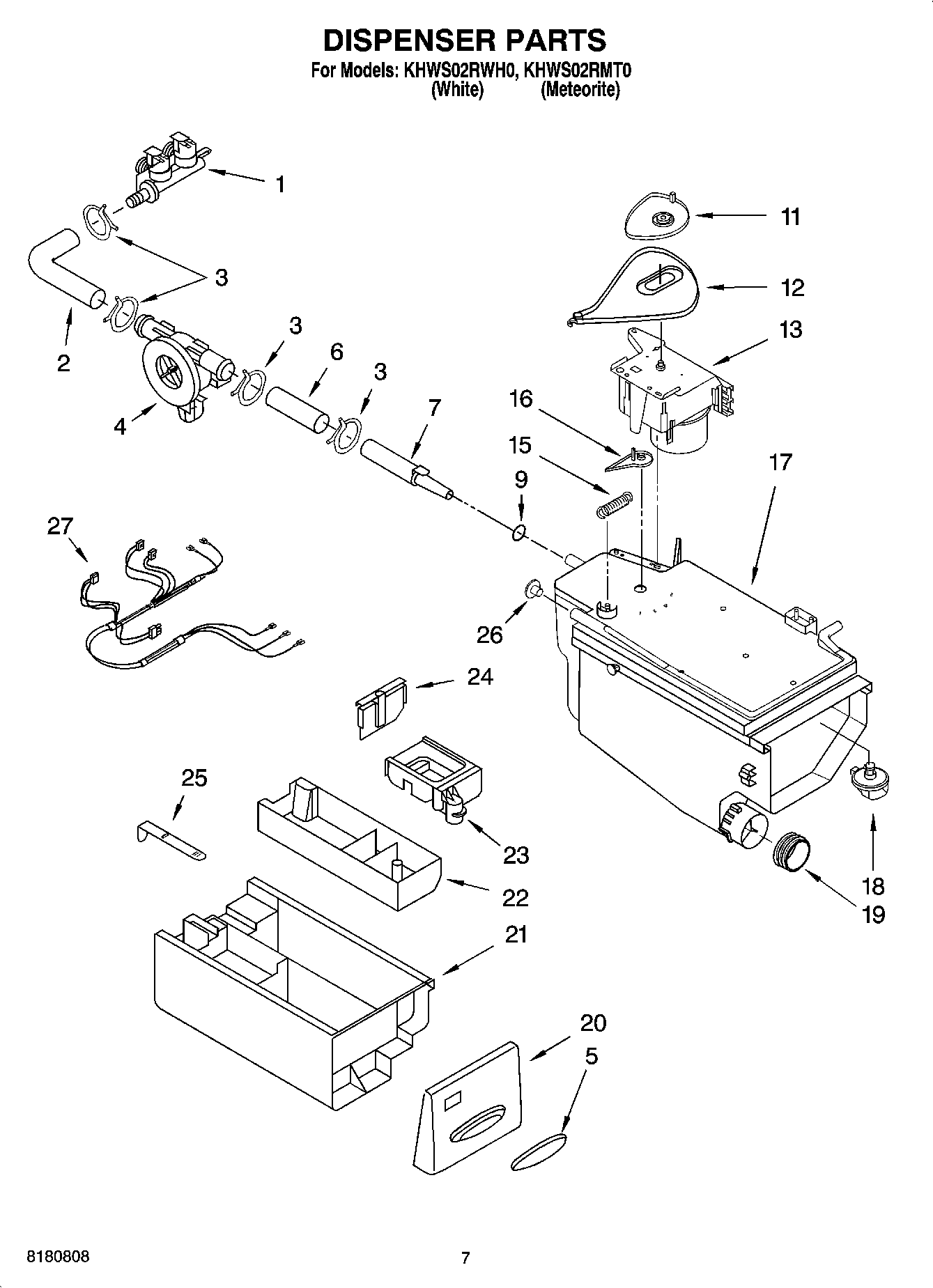

KHWS02RMT0 04 – DISPENSER PARTS

KHWS02RMT0 04 – DISPENSER PARTS

Written by

in

KHWS02RMT0 04 – DISPENSER PARTS

Products

PositionProduct
1WP8181694 Whirlpool Washer Inlet Valve
2WP8181710 Whirlpool Hose Assembly
3WP489503 Whirlpool Refrigerator Clamp
4FLOWMETER WASHER INLET
5Cushion, Handle
6Hose, Flowmeter
7Nozzle, Inlet
9O-Ring
11Cam, Actuator
12Lever, Water Distribution
13WPW10665207 Whirlpool Dishwasher Switch
15Spring, Lever
16Connection, Lever
17Dispenser (Meteorite)
17Dispenser
18WP8181712 Whirlpool Nozzle
19WP8181747 Whirlpool Seal Assembly
20Handle, Drawer (Includes Illus. 24) (Meteorite)
20Handle, Drawer (Includes Illus. 24) (White)
21WP8181720 Whirlpool Drawer Assembly
22WP8181722 Whirlpool Dispenser Assembly
23Siphon, Bleach/Softener
23Siphon, Bleach/Softener (Meteorite)
24Separator
24Separator (Meteorite)
25WP8181721 Whirlpool Retainer
26CAP
27Harness, Wiring (Inlet Valve)
