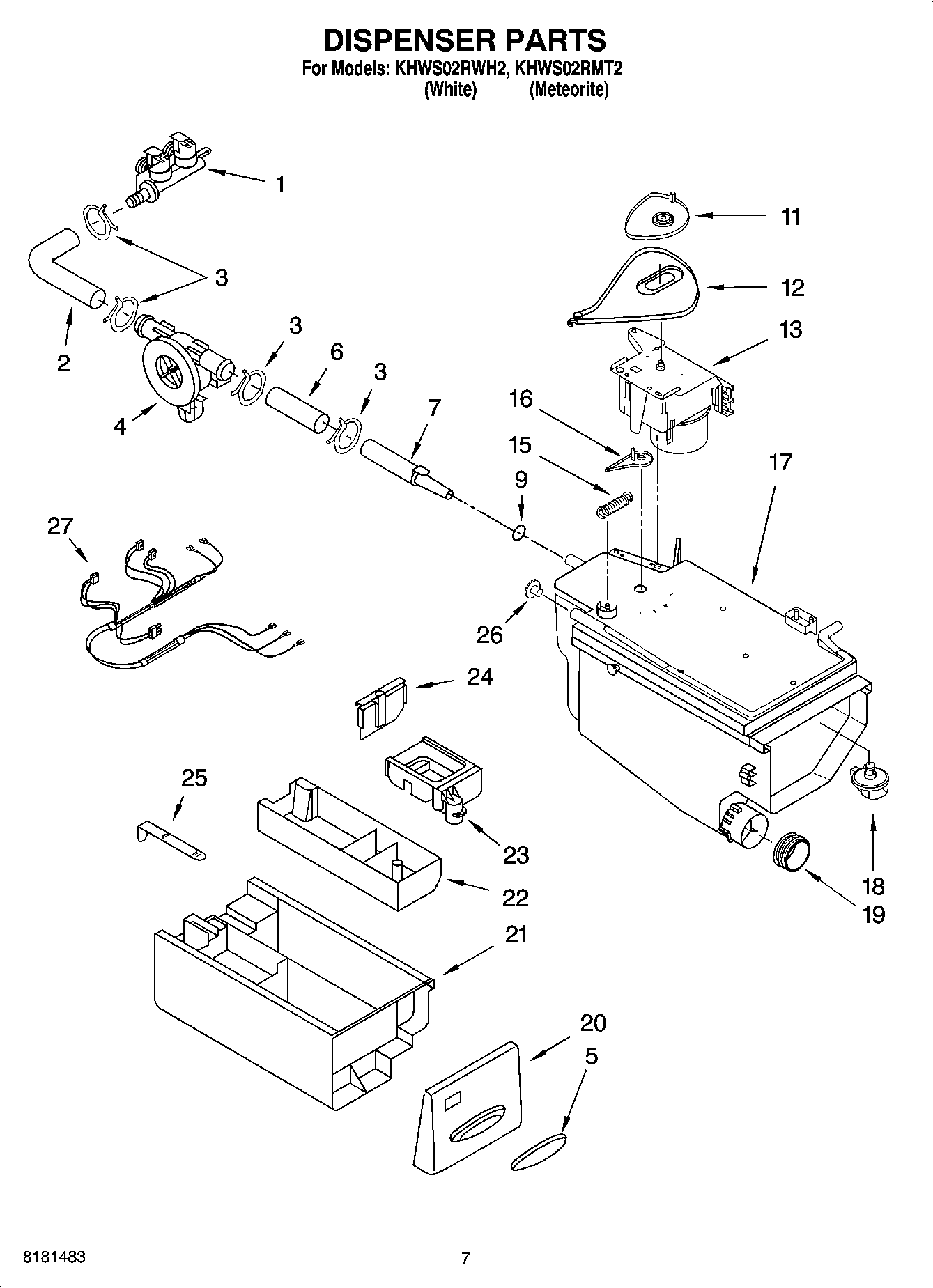

KHWS02RMT2 04 – DISPENSER PARTS

Products

Position	Product
1	WP8181694 Whirlpool Washer Inlet Valve
2	WP8181710 Whirlpool Hose Assembly
3	WP489503 Whirlpool Refrigerator Clamp
4	FLOWMETER WASHER INLET
5	Cushion, Handle
6	Hose, Flowmeter
7	Nozzle, Inlet
9	O-Ring
11	Cam, Actuator
12	Lever, Water Distribution
13	WPW10665207 Whirlpool Dishwasher Switch
15	Spring, Lever
16	Connection, Lever
17	Dispenser (Meteorite)
17	Dispenser
18	WP8181712 Whirlpool Nozzle
19	WP8181747 Whirlpool Seal Assembly
20	Handle, Drawer (Includes Illus. 24) (Meteorite)
20	Handle, Drawer (Includes Illus. 24) (White)
21	WP8181720 Whirlpool Drawer Assembly
22	WP8181722 Whirlpool Dispenser Assembly
23	Siphon, Bleach/Softener
23	Siphon, Bleach/Softener (Meteorite)
24	Separator
24	Separator (Meteorite)
25	WP8181721 Whirlpool Retainer
26	CAP
27	Harness, Wiring (Inlet Valve)
