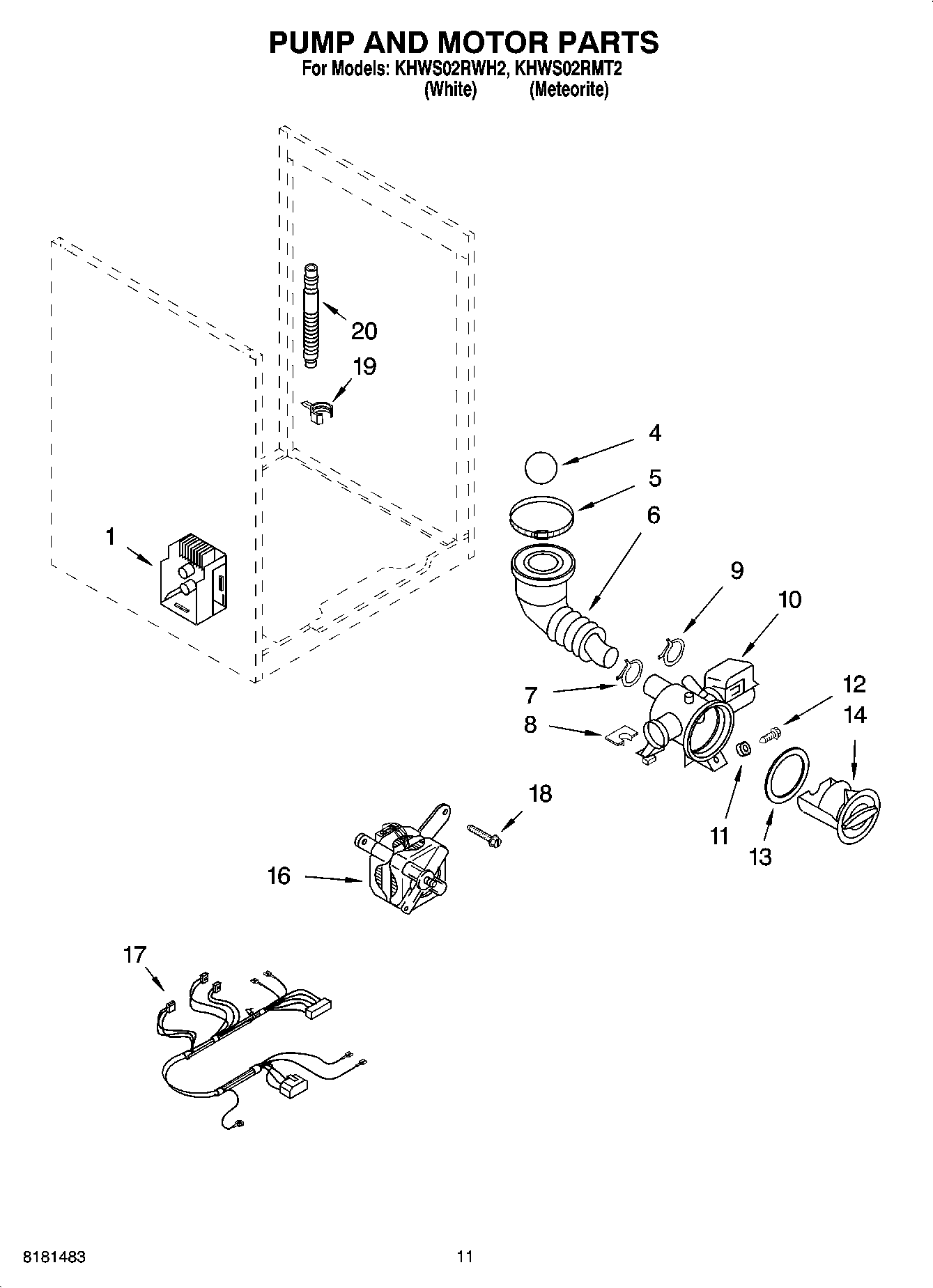

KHWS02RMT2 06 – PUMP AND MOTOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

KHWS02RMT2 06 – PUMP AND MOTOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KHWS02RMT2 06 – PUMP AND MOTOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
ACCESSORY PARTS
285863 Whirlpool Drain Hose Extension 4'
W10202939 Whirlpool Touch Up
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
1W10756692-includeCORE Whirlpool W10756692 Washer Electronic Motor Control Board + Core
4W10121657 Whirlpool Ball
5WP696392 Whirlpool Hose Clamp
6WPW10467168 Whirlpool Hose Assembly
7WP285655 Whirlpool Hose Clamp
8Damper, Rubber (Rear)
9WP3367052 Whirlpool Hose Clamp
10280187 Whirlpool Washer Electronic Water Drain Pump
11Damper, Rubber (Front)
12Screw
13Seal, Filter Cap
14Cap, Filter
16Motor
17Harness, Motor
18Bolt, Motor
198182209 Whirlpool Clip
20WPW10003250 Whirlpool Hose
