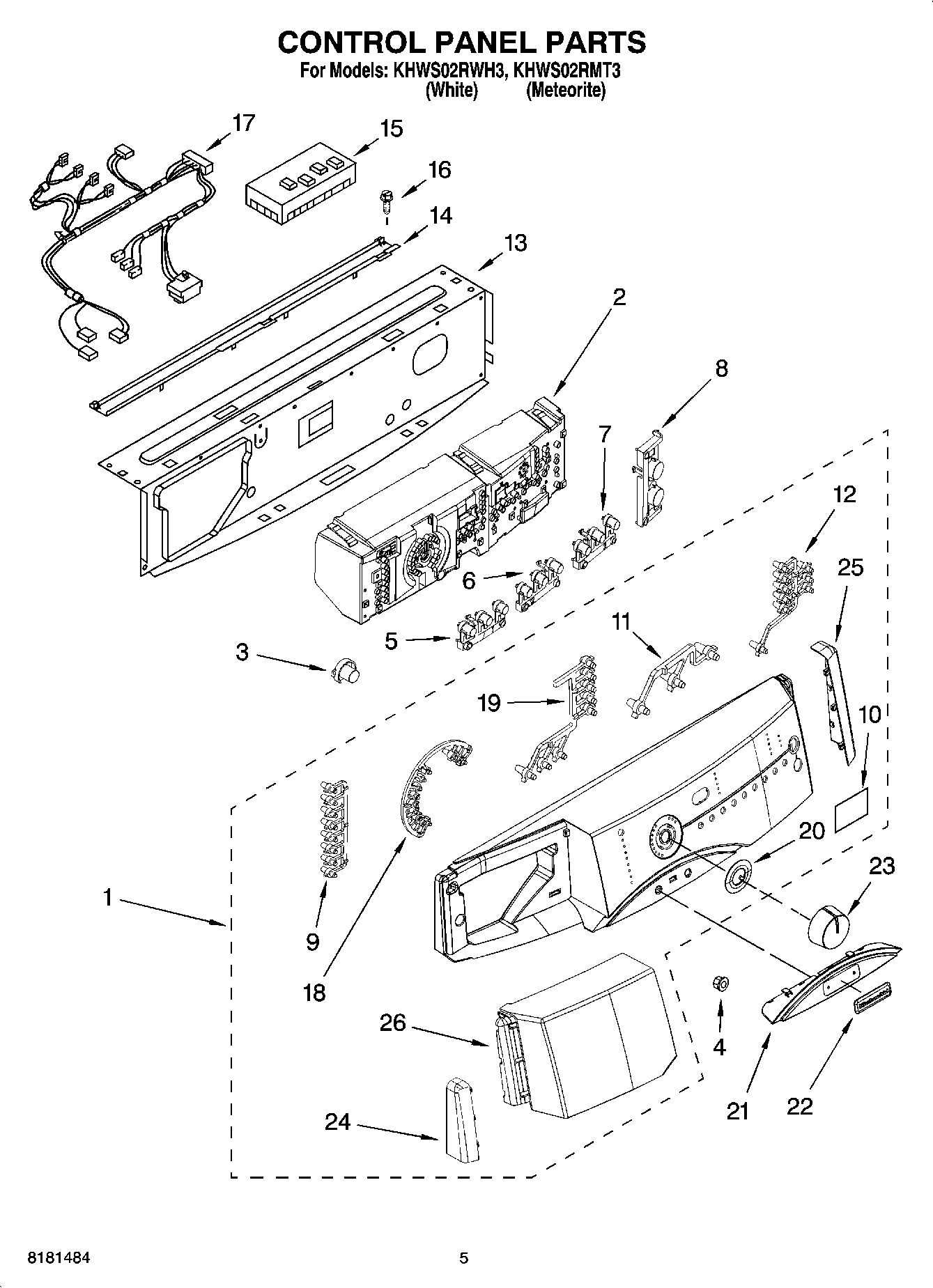

KHWS02RMT3 03 – CONTROL PANEL PARTS

Products

PositionProduct
1Panel, Control (Meteorite)
1Panel, Control (White)
2User Interface
3Button, Power (White)
3Button, Power (Meteorite)
4WP2004333 Whirlpool Refrigerator Nut
5Button Set, Left (White)
5Button Set, Left (Meteorite)
6Button Set, Middle (White)
6Button Set, Middle (Meteorite)
7Button Set, Right (Meteorite)
7Button Set, Right (White)
8Button Set, Start
9Light, Indicator (Status)
10Window, Display
11Light, Indicator (3 Lights)
12Light, Indicator (9 Lights)
13Brace, Front Top
14Channel, Water
15Microcomputer, Machine Control
16WP488729 Whirlpool Refrigerator Door Screw
17Harness, Wiring (Main)
18Light, Indicator (Program)
19Light, Indicator (8 Lights)
20Bezel, Knob
21Overlay, Door
22MEDALLION
23Knob, Control
24Endcap, Left (Meteorite)
24Endcap, Left (White)
25Endcap, Right (Meteorite)
25Endcap, Right (White)
26Handle, Drawer (Includes Illus. 24) (Meteorite)
26Handle, Drawer (Includes Illus. 24) (White)
