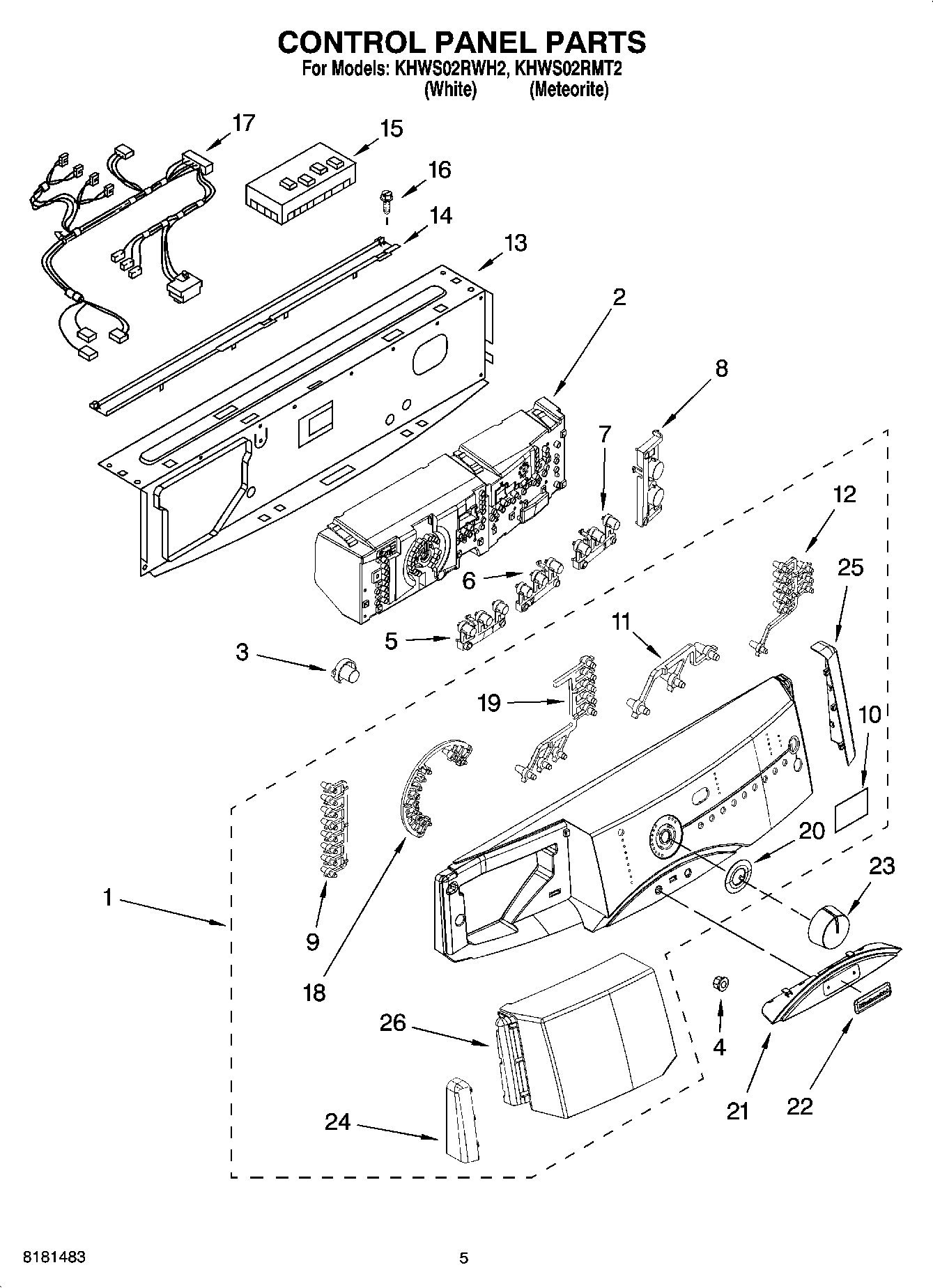

KHWS02RWH2 03 – CONTROL PANEL PARTSadmin2025-04-26T11:56:22+00:00KHWS02RWH2 03 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Panel, Control (Meteorite) |
| 1 | Panel, Control (White) |
| 2 | User Interface |
| 3 | Button, Power (White) |
| 3 | Button, Power (Meteorite) |
| 4 | WP2004333 Whirlpool Refrigerator Nut |
| 5 | Button Set, Left (White) |
| 5 | Button Set, Left (Meteorite) |
| 6 | Button Set, Middle (White) |
| 6 | Button Set, Middle (Meteorite) |
| 7 | Button Set, Right (Meteorite) |
| 7 | Button Set, Right (White) |
| 8 | Button Set, Start |
| 9 | Light, Indicator (Status) |
| 10 | Window, Display |
| 11 | Light, Indicator (3 Lights) |
| 12 | Light, Indicator (9 Lights) |
| 13 | Brace, Front Top |
| 14 | Channel, Water |
| 15 | Microcomputer, Machine Control |
| 16 | WP488729 Whirlpool Refrigerator Door Screw |
| 17 | Harness, Wiring (Main) |
| 18 | Light, Indicator (Program) |
| 19 | Light, Indicator (8 Lights) |
| 20 | Bezel, Knob |
| 21 | Overlay, Door |
| 22 | MEDALLION |
| 23 | Knob, Control |
| 24 | Endcap, Left (Meteorite) |
| 24 | Endcap, Left (White) |
| 25 | Endcap, Right (Meteorite) |
| 25 | Endcap, Right (White) |
| 26 | Handle, Drawer (Includes Illus. 24) (Meteorite) |
| 26 | Handle, Drawer (Includes Illus. 24) (White) |
