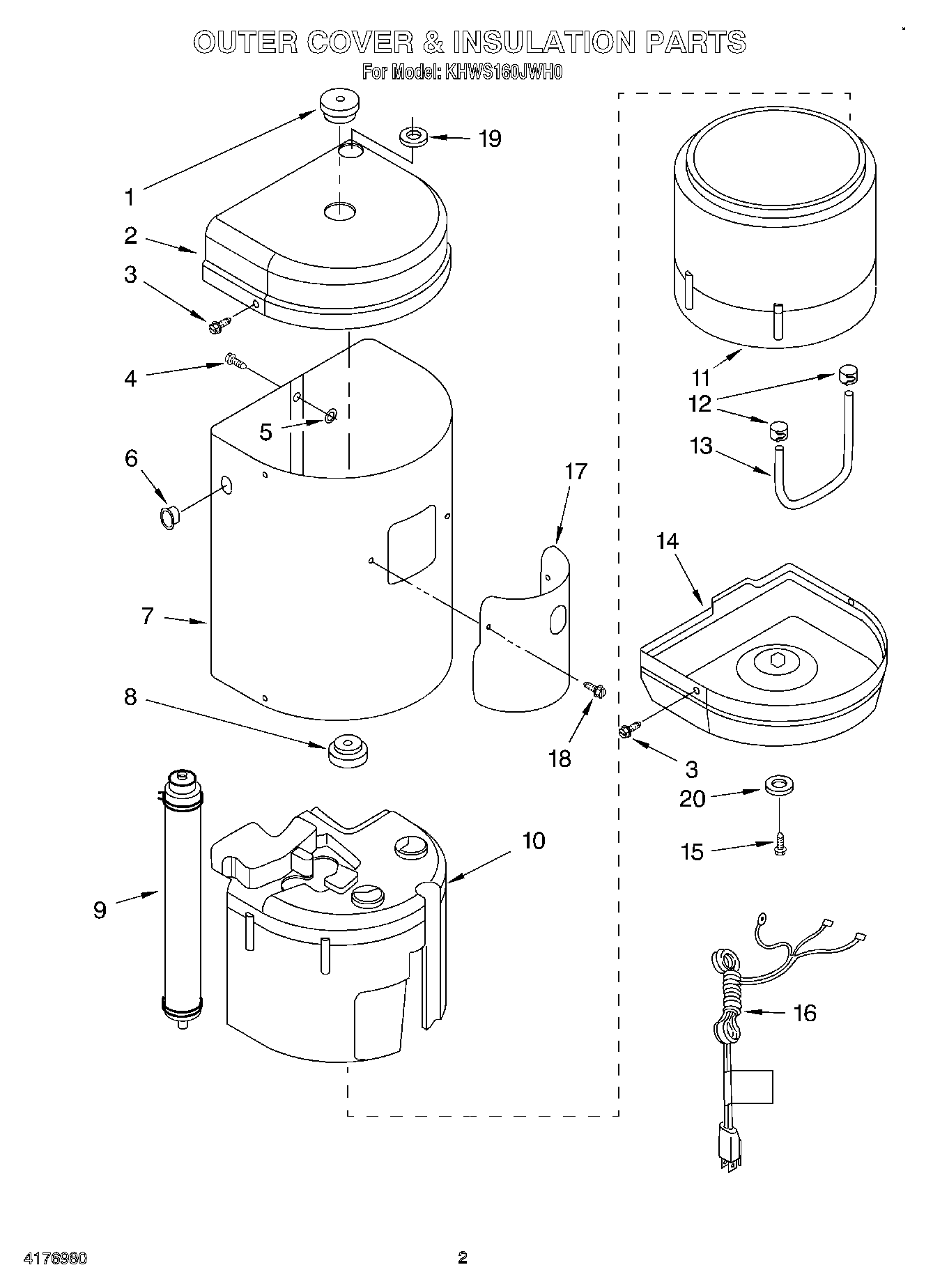

KHWS160JAL0 02 – OUTER COVER & INSULATION, LITERATURE

KHWS160JAL0 02 – OUTER COVER & INSULATION, LITERATURE

Written by

in

KHWS160JAL0 02 – OUTER COVER & INSULATION, LITERATURE

Products

PositionProduct
Repair Parts List
Instructions, Installation & Use And Care
1Bushing, Molded
2Cap, Bottom
3W11245710 Whirlpool Refrigerator Screw
4WP3400814 Whirlpool Screw
54159493 Whirlpool Lockwasher
6Strain Releif, Power Cord
7Shell
8Molded Bushing
9Displacer
10Insulation, Top
11Insulation, Bottom
12Clamp, Hose
13Hose, Clear
14Cap, Bottom
15Screw, 8-32X.5 (stainless)
16Cord, Power
17Front Cover
18WP313808 Whirlpool Screw
19Grommet
20O-Ring
