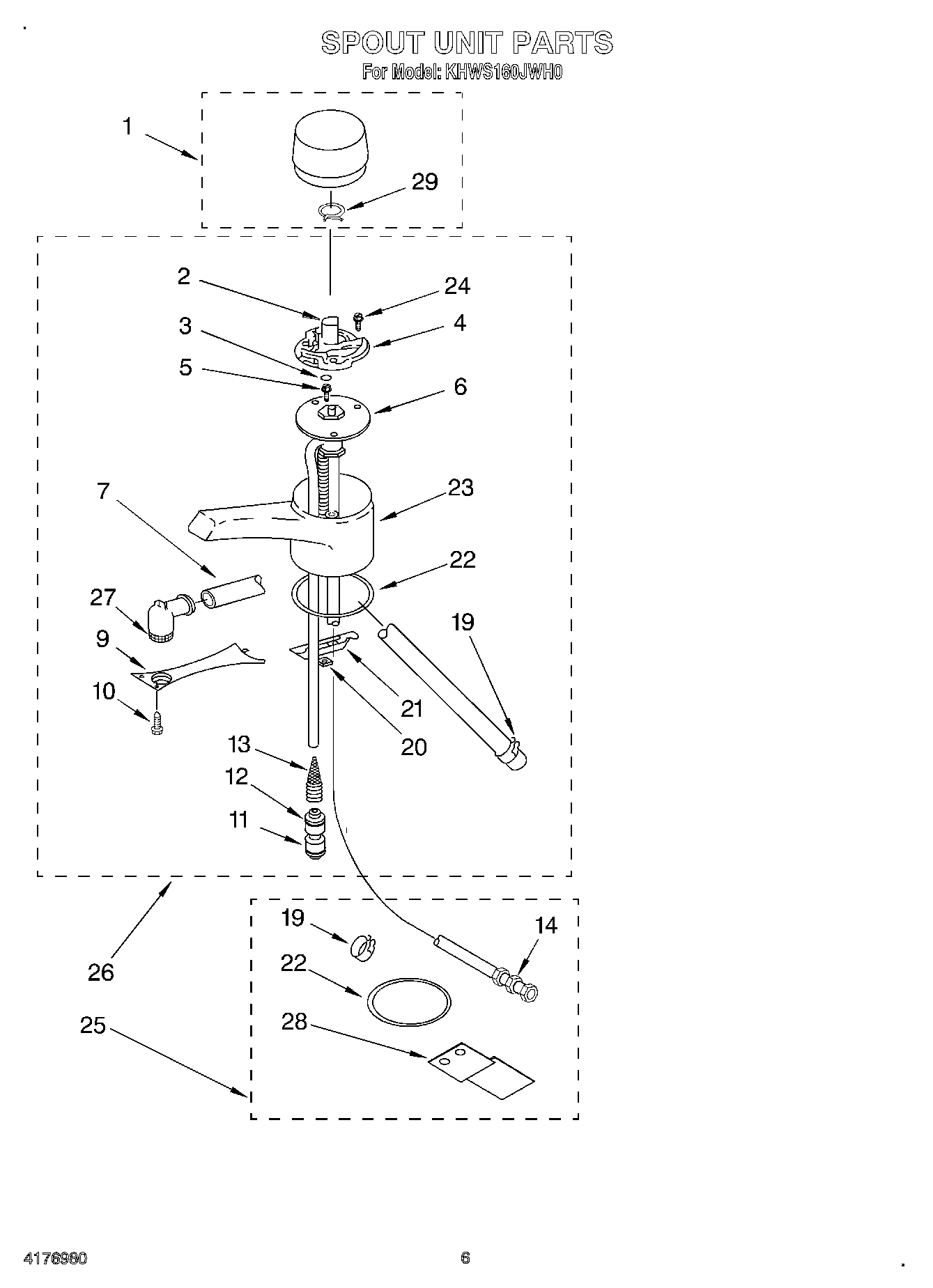

KHWS160JCR0 04 – SPOUT UNIT

Products

Position	Product
1	Knob (Black)
1	Knob (Almond)
1	Knob (Majestic Yellow)
1	Knob (Empire Red)
1	Knob (Cobalt Blue)
1	Knob (Biscuit)
1	Knob (White)
2	Hub, Valve Drive
3	Spring, Compression
4	Cam
5	Cap Screw, 1/4-20 X 5“ Rd.
6	Mechanical Valve (Includes Illus. 13 & 14)
7	Tube (3/8“ I.D.)
9	Plate, Spout
10	Screw, Self Tapping (No.4-20 X 5/16“) Phil. Flat Hd.
11	WP2198677 Whirlpool Refrigerator Connector
12	Cover, Collet
13	Screen, Inlet
19	Clamp, Hose
20	Machine Nut 1/4-20 Sq.
21	Bracket, Spout Mounting
22	Seal, Sink
23	Spout Body (Cobalt Blue)
23	Spout Body (Empire Red)
23	Spout Body (Majestic Yellow)
23	Faucet Spout (White)
23	Spout Body (Biscuit)
23	Faucet Spout (Chrome)
23	Faucet Spout (Almond)
24	489392 Whirlpool Refrigerator Screw
25	Hardware, Installation
26	Spout Assembly (Majestic Yellow)
26	Spout Assembly (Empire Red)
26	Spout Assembly (Biscuit)
26	Spout Assembly (Cobalt Blue)
26	Faucet Assembly (Chrome)
26	Faucet Assembly (White)
26	Faucet Assembly (Almond)
27	Flow Screen
28	Bracket, Mounting
29	Clamp, Hose
