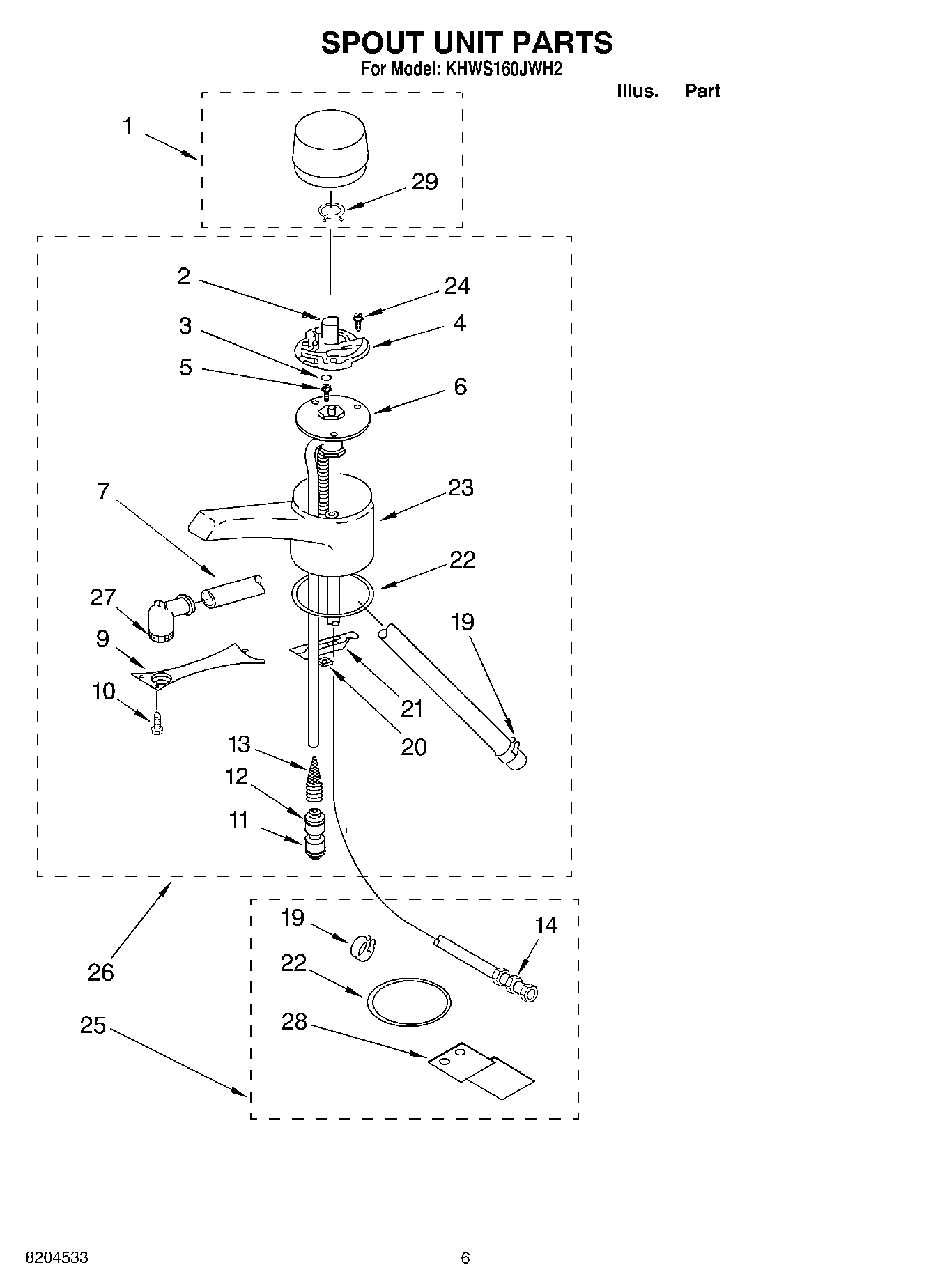

KHWS160JCR2 03 – SPOUT UNIT PARTS

Products

Position	Product
1	Knob (White)
1	Knob (Almond)
1	Knob (Empire Green)
1	Knob (Majestic Yellow)
1	Knob (Empire Red)
1	Knob (Biscuit)
1	Knob (Cobalt Blue)
1	Knob (Black)
2	Hub, Valve Drive
3	Spring, Compression
4	Cam
5	WP3400202 Whirlpool Screw
6	Mechanical Valve (Includes Illus. 13 & 14)
7	Tube (3/8“ I.D.)
9	Plate, Spout
10	Screw, Self Tapping (No.4-20 X 5/16“) Phil. Flat Hd.
11	WP2198677 Whirlpool Refrigerator Connector
12	Cover, Collet
13	Screen, Inlet
19	Clamp, Hose
20	Machine Nut 1/4-20 Sq.
21	Bracket, Spout Mounting
22	Seal, Sink
23	Spout Body (Cobalt Blue)
23	Spout Body (Empire Green)
23	Spout Body (Biscuit)
23	Faucet Spout (Chrome)
23	Faucet Spout (White)
23	Faucet Spout (Almond)
23	Spout Body (Empire Red)
23	Spout Body (Majestic Yellow)
24	489392 Whirlpool Refrigerator Screw
25	Hardware, Installation
26	Spout Assembly (Majestic Yellow)
26	Spout Assembly (Cobalt Blue)
26	Spout Assembly (Empire Green)
26	Spout Assembly (Biscuit)
26	Spout Assembly (Empire Red)
26	Faucet Assembly (Almond)
26	Faucet Assembly (White)
26	Faucet Assembly (Chrome)
27	Flow Screen
28	Bracket, Mounting
29	Clamp, Hose
