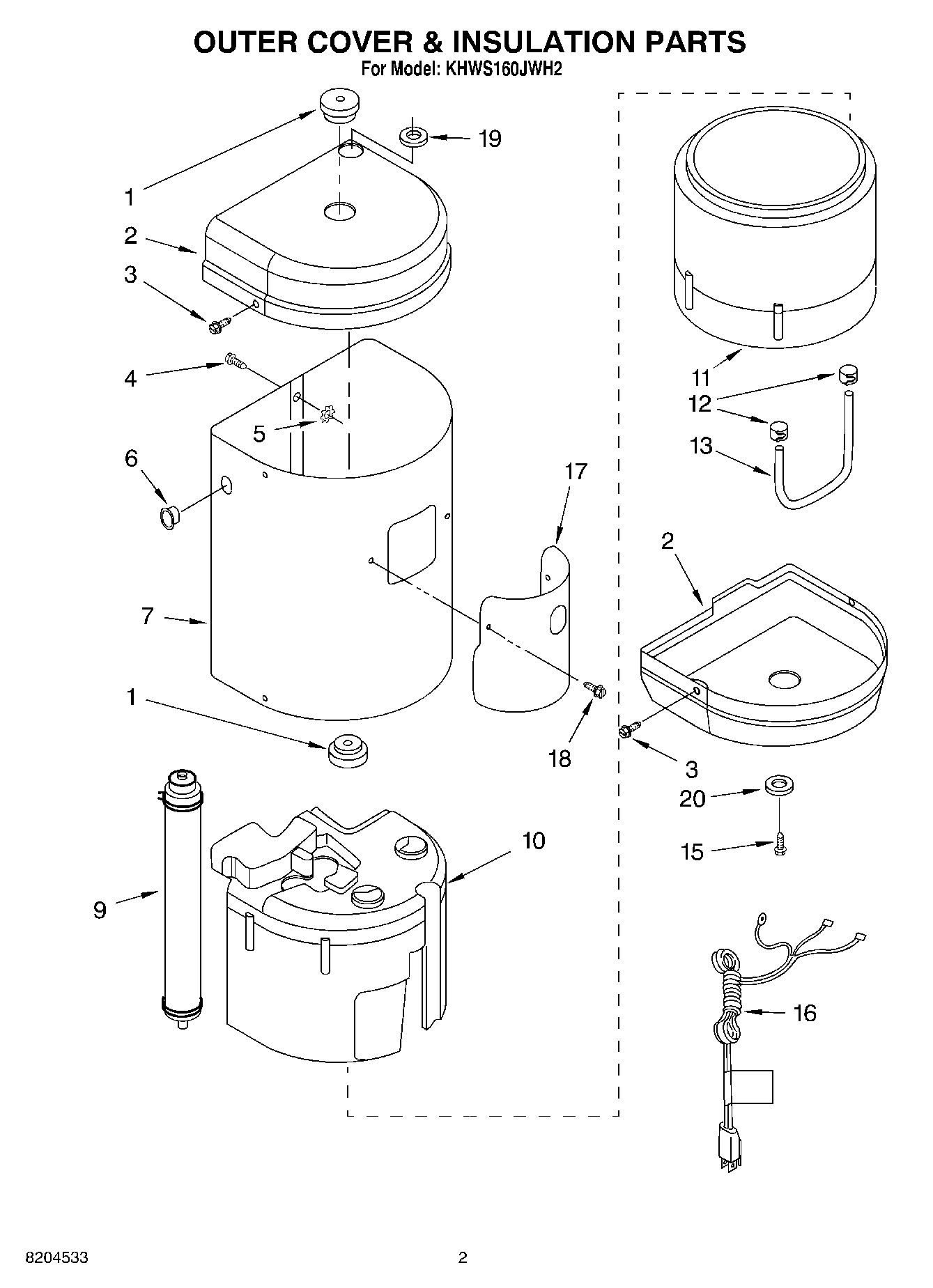

KHWS160JER2 01 – OUTER COVER & INSULATION PARTSadmin2025-04-26T11:57:48+00:00KHWS160JER2 01 – OUTER COVER & INSULATION PARTS
Products
| Position | Product |
|---|
| 1 | Bushing, Molded |
| 2 | Cap, Bottom |
| 3 | W11245710 Whirlpool Refrigerator Screw |
| 5 | 4159493 Whirlpool Lockwasher |
| 6 | Strain Releif, Power Cord |
| 7 | Shell |
| 9 | Displacer |
| 10 | Insulation, Top |
| 11 | Insulation, Bottom |
| 12 | Clamp, Hose |
| 13 | Hose, Clear |
| 15 | Screw, 8-32X.5 (stainless) |
| 16 | Cord, Power |
| 17 | Front Cover |
| 18 | WP313808 Whirlpool Screw |
| 19 | Grommet |
| 20 | O-Ring |
| 20 | Literature Parts (Repair Parts List) |
| 20 | FOLLOWING PARTS NOT ILLUSTRATED |
| 20 | LITERATURE PARTS |
| 20 | Instructions, Installation & Use And Care |
