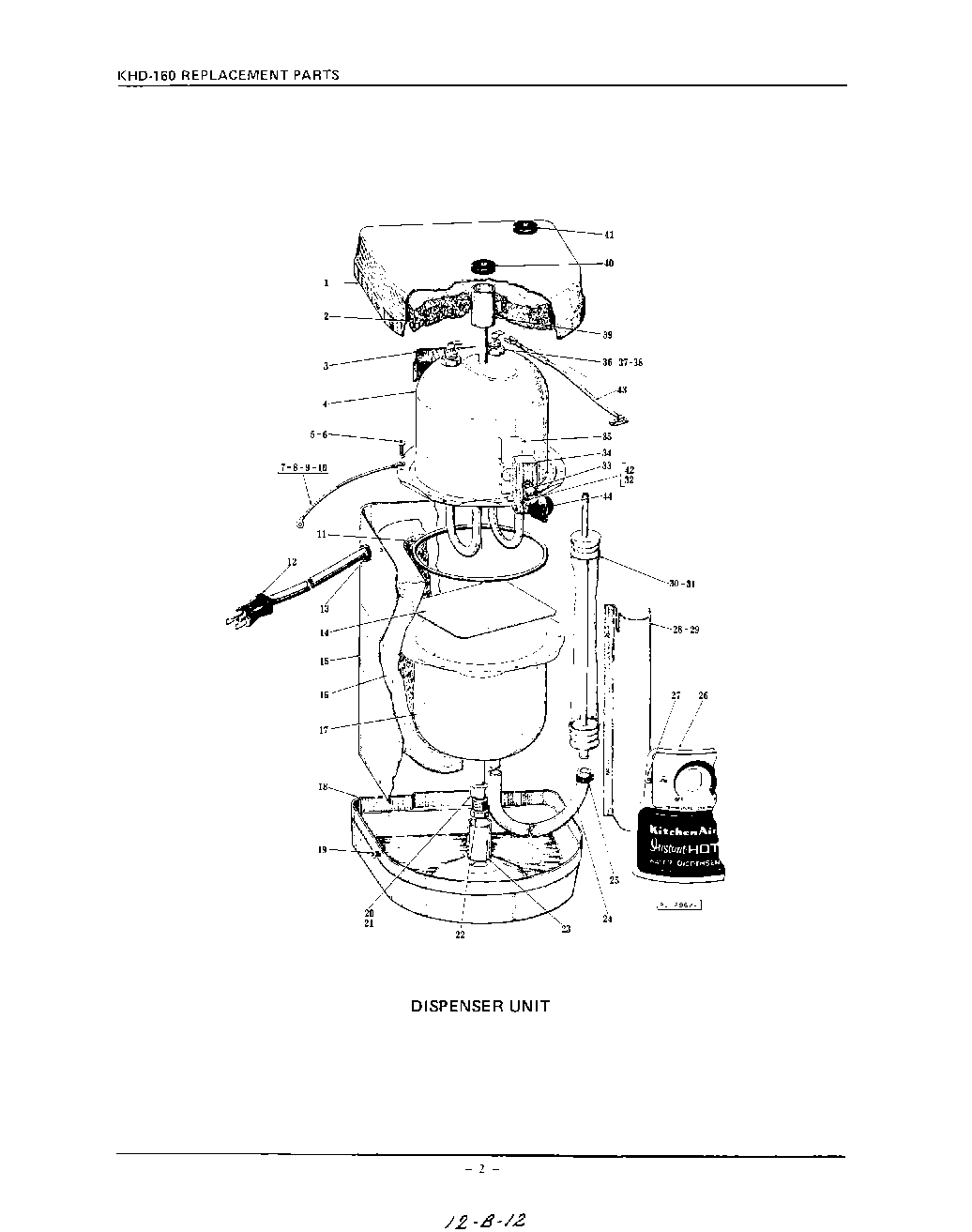

KHWS160S0 02 – SECTION

Products

Position	Product
1	Cap – Top
2	Insulation – Upper
3	Bracket – Mounting
4	Upper Tank & Tube Assy
5	Mach. Screw 8-32 x 3/8 Phil. Pan Hd
7	Ground Wire Assy
8	Mach. Screw – No.8-32 x 1/2“ Phil. Truss Hd
11	“O“ Ring
12	Cord & Plug Assy
13	Strain Relief
14	Deflector
15	Shell Cover Assy
16	Insulation – Tank
17	Lower Tank Assy
18	Cap – Bottom
19	Screw & L.W. Assy. – No.8 x 3/8“ Phil. Truss Hd
20	Nut – Tube Fitting (3/8“)
21	Sleeve – Tube Fitting (3/8“)
22	Plug – Drain
24	Hose – Clear
25	Clamp – Tube (9/16“ Tube)
26	Cover – Thermostat
27	Self-Tapping Screw – No.6-32 x 3/8“ Phil. Pan Hd., Type 23
28	Cover – Aspirator
29	Rivet – 1/8“ Dia. x 9/64“ Lg., Oval Hd
30	Displacer Assy
32	Mach. Nut – No.8-32 Hex
33	Bushing – Thermostat
34	Thermostat
35	Dust Cover – Thermostat
36	Heater Element (Incls. items No.37 & 38)
37	“O“ Ring
38	Nut – Heater Element
39	Spacer
40	Bushing – Water Outlet Tube
41	Bushing – Water Inlet Tube
42	Lock Washer – No.8 Ext. Shakeproof (Use with Left Screw)
43	Thermal Fuse Assy
44	Knob – Thermostat
