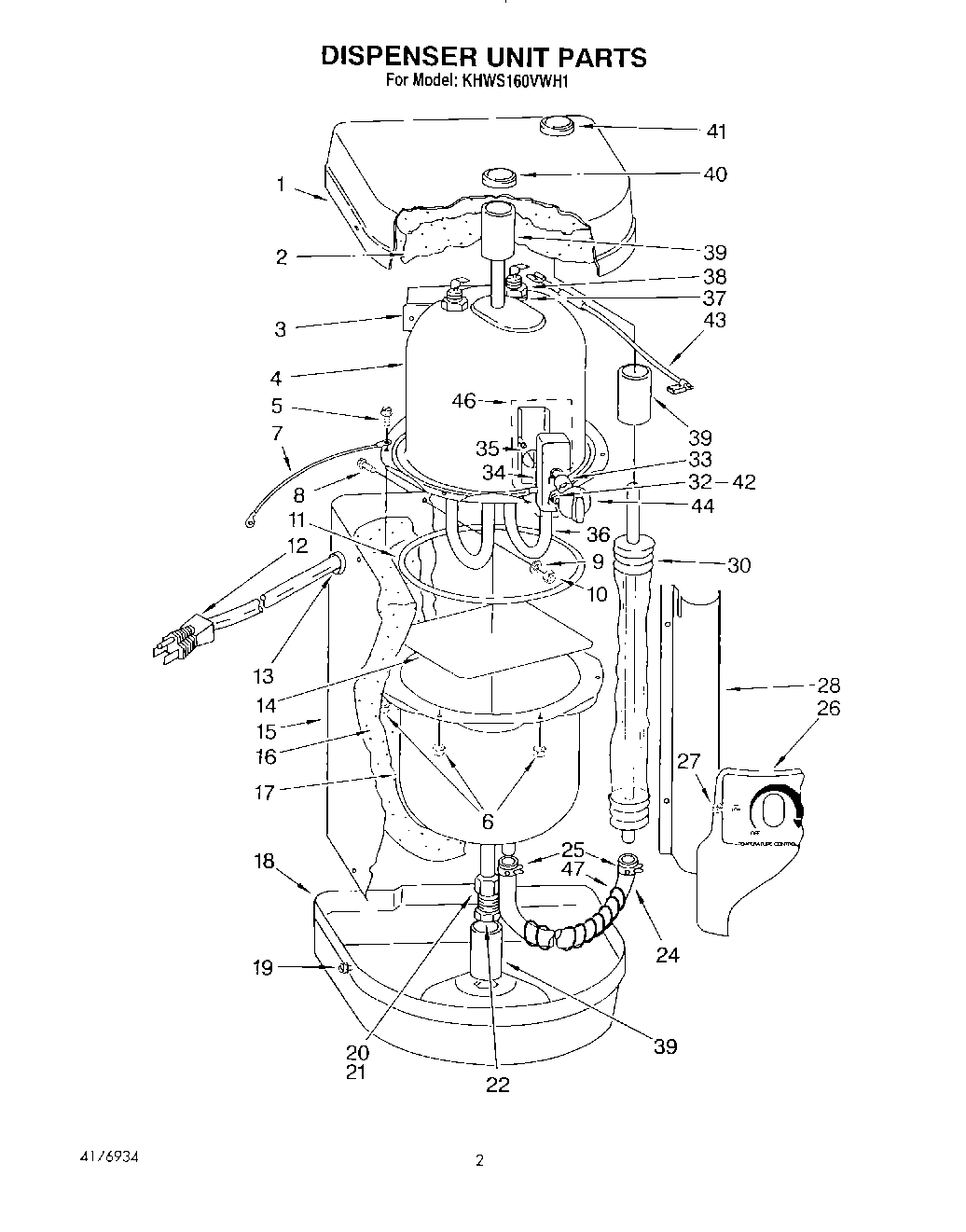

KHWS160VWH1 02 – SECTION

Products

Position	Product
	Repair Parts List
	Installation Instructions
	Guide, Use & Care
1	Cap, Top
2	Upper Insulation
3	Bracket, Mounting
4	Upper Tank & Tube
5	WPW10068250 Whirlpool Dishwasher Screw
7	Ground Wire
8	WP3400814 Whirlpool Screw
11	O-Ring
12	Cord & Plug
13	Strain Relief
14	Deflector
15	Shell
16	Insulation Tank
17	Lower Tank
18	Cap, Bottom
19	W11245710 Whirlpool Refrigerator Screw
20	Nut, Tube Fitting (3/8“)
21	Sleeve, Tube Fitting (3/8“)
22	Plug, Drain
24	Hose, Clear
25	Clamp, Hose
26	Cover, Front
27	W10853069 Whirlpool Screw
28	Cover, Aspirator
30	Displacer
32	Nut, Mounting
33	Bushing, Thermostat
34	Thermostat
35	Cover, Dust (Thermostat)
36	Heater Element (Includes Illus. 38)
37	“O“, Ring
38	Nut, Heating Element
39	Spacer (3)
40	Bushing, Molded
41	Molded Bushing
42	4159493 Whirlpool Lockwasher
43	Fuse, Thermal
44	Knob, Thermostat
46	Knob, Thermostat
47	Upper Tank (Includes Illus. 4 & 36)
47	Spring, Hose (Anti-Kink)
47	Valve, Mechanical
