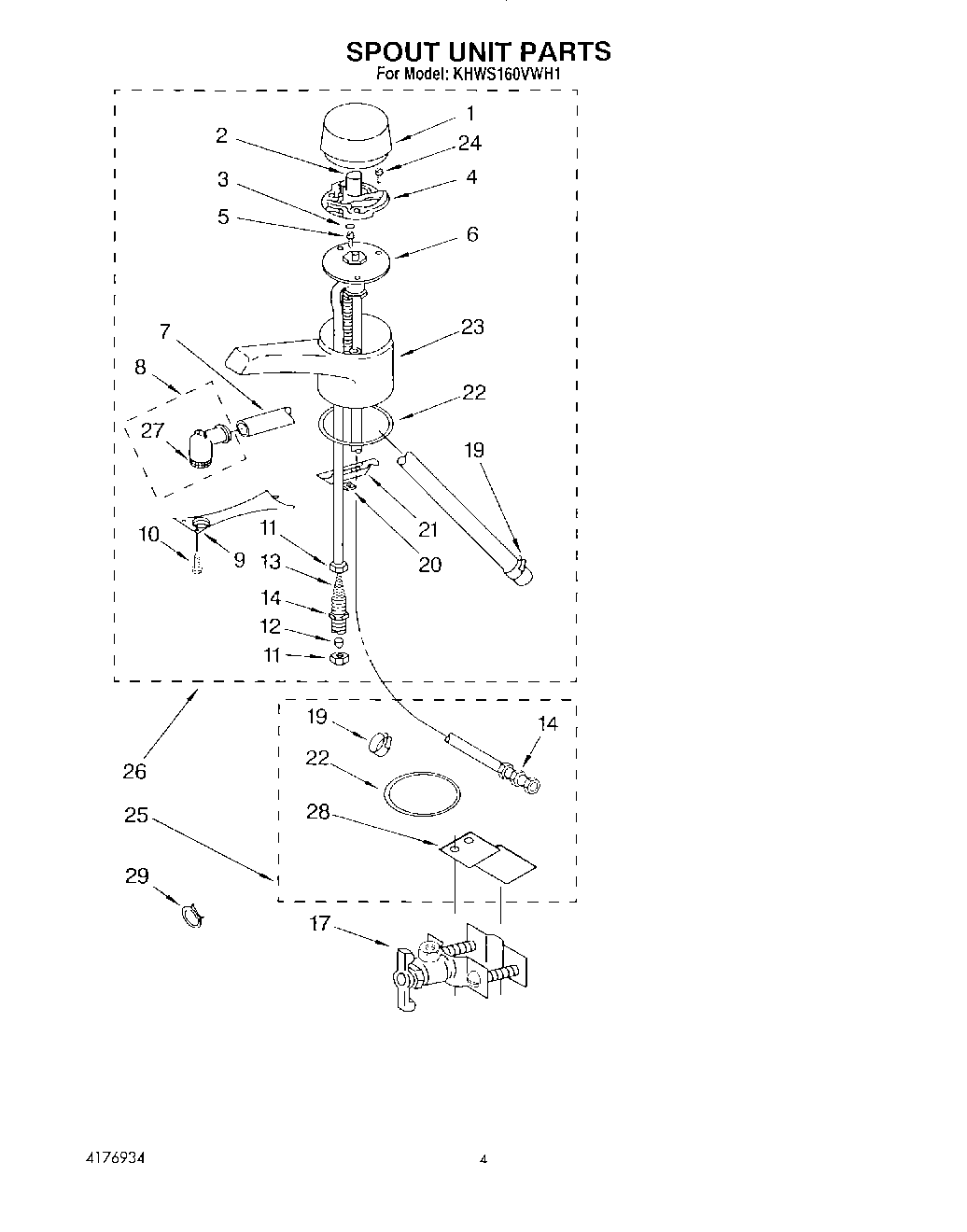

KHWS160VWH1 03 – SECTION

Products

Position	Product
1	Cap Assembly (White)
1	Cap Assembly (Almond)
1	Cap Assembly (Chrome)
2	Hub, Valve Drive
3	Spring, Compression
4	Hub, Cam
5	Cap Screw, 1/4-20 X 5“ Rd.
6	Mechanical Valve (Includes Illus. 13 & 14)
7	Tube (3/8“ I.D.)
8	Spout & Screen
9	Plate, Spout
10	Screw, Self Tapping (No.4-20 X 5/16“) Phil. Flat Hd.
11	WP2198677 Whirlpool Refrigerator Connector
12	Sleeve, Compression
13	Screen, Inlet
17	Valve, Self- Drilling
19	Clamp, Hose
20	Machine Nut 1/4-20 Sq.
21	Bracket, Spout Mounting
22	Seal, Sink
23	Spout Body (White)
23	Spout Body (Chrome)
23	Spout Body (Almond)
24	489392 Whirlpool Refrigerator Screw
25	Valve, Mechanical
26	Spout Assembly (Chrome)
26	Spout Assembly (White)
26	Spout Assembly (Almond)
27	Flow Screen
28	Bracket, Mounting
29	Clamp, Hose
