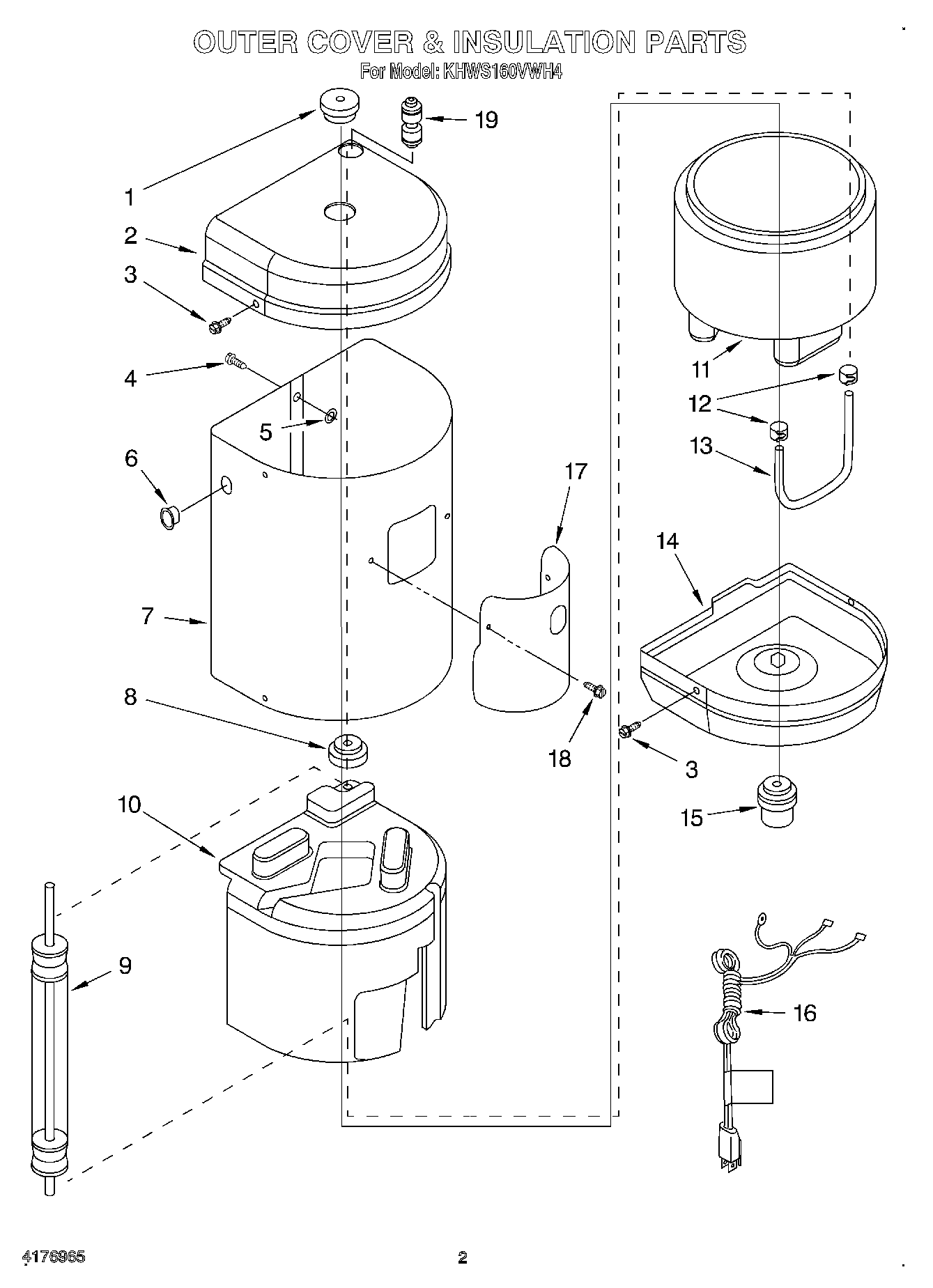

KHWS160VWH4 02 – OUTER COVER & INSULATION, LITERATURE

Products

PositionProduct
Repair Parts List
Instructions, Installation & Use And Care
1Bushing, Molded
2End Cap, Top
3W11245710 Whirlpool Refrigerator Screw
4WP3400814 Whirlpool Screw
54159493 Whirlpool Lockwasher
6Strain Releif, Power Cord
7Shell
8Molded Bushing
9Displacer
10Insulation, Top
11Insulation, Bottom
12Clamp, Hose
13Hose, Clear
14Cap, Bottom
15Stop, End
16Cord, Power
17Cover, Front
18WP313808 Whirlpool Screw
19WP2198677 Whirlpool Refrigerator Connector
