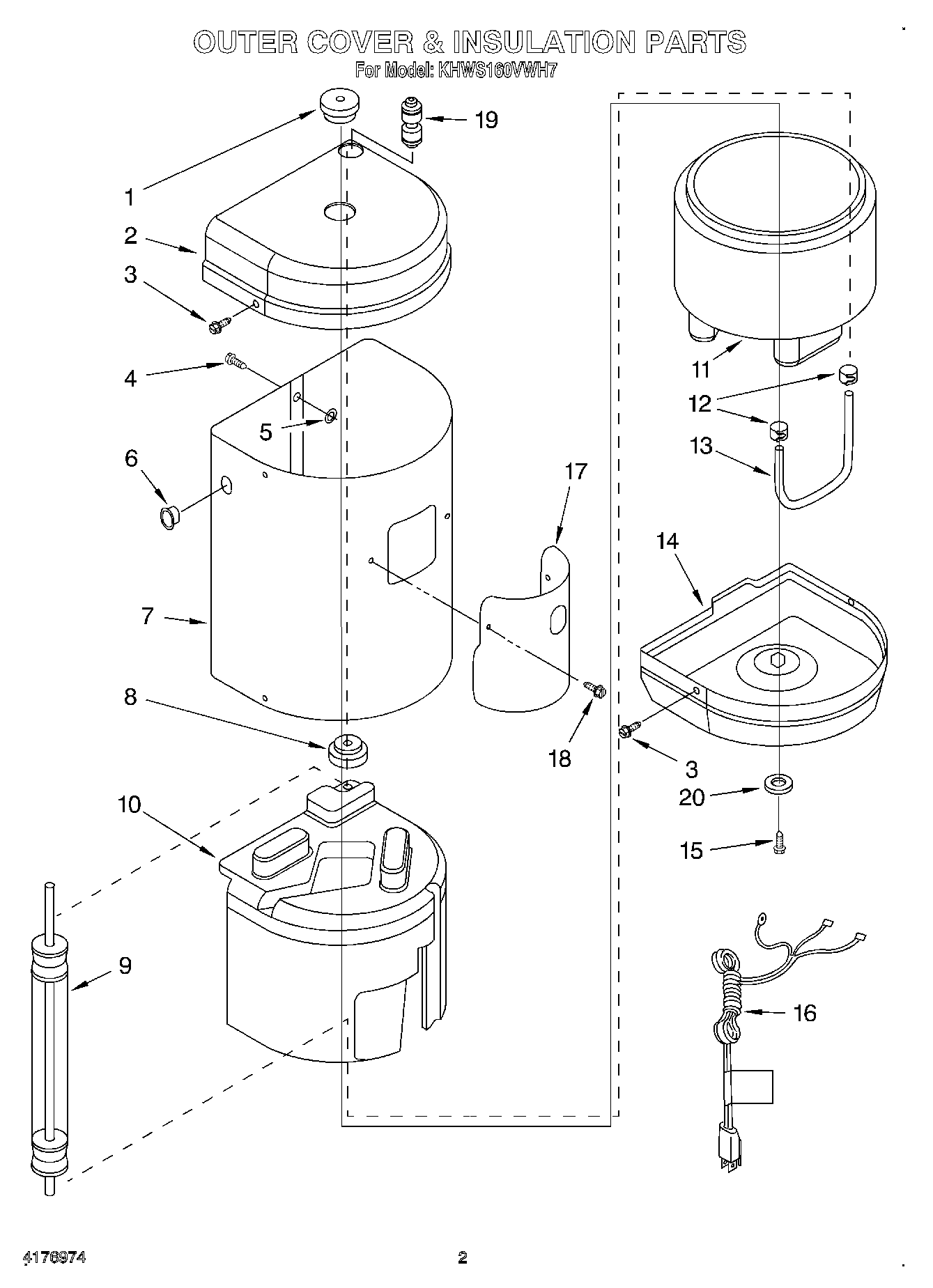

KHWS160VWH7 02 – OUTER COVER & INSULATION, LITERATURE

Products

Position	Product
	Repair Parts List
	Instructions, Installation & Use And Care
	Screw, 8-32X.5 (stainless)
1	Bushing, Molded
2	End Cap, Top
3	W11245710 Whirlpool Refrigerator Screw
4	WP3400814 Whirlpool Screw
5	4159493 Whirlpool Lockwasher
6	Strain Releif, Power Cord
7	Shell
8	Molded Bushing
9	Displacer
10	Insulation, Top
11	Insulation, Bottom
12	Clamp, Hose
13	Hose, Clear
14	Cap, Bottom
15	Cord, Power
17	Front Cover
18	WP313808 Whirlpool Screw
19	WP2198677 Whirlpool Refrigerator Connector
20	O-Ring
