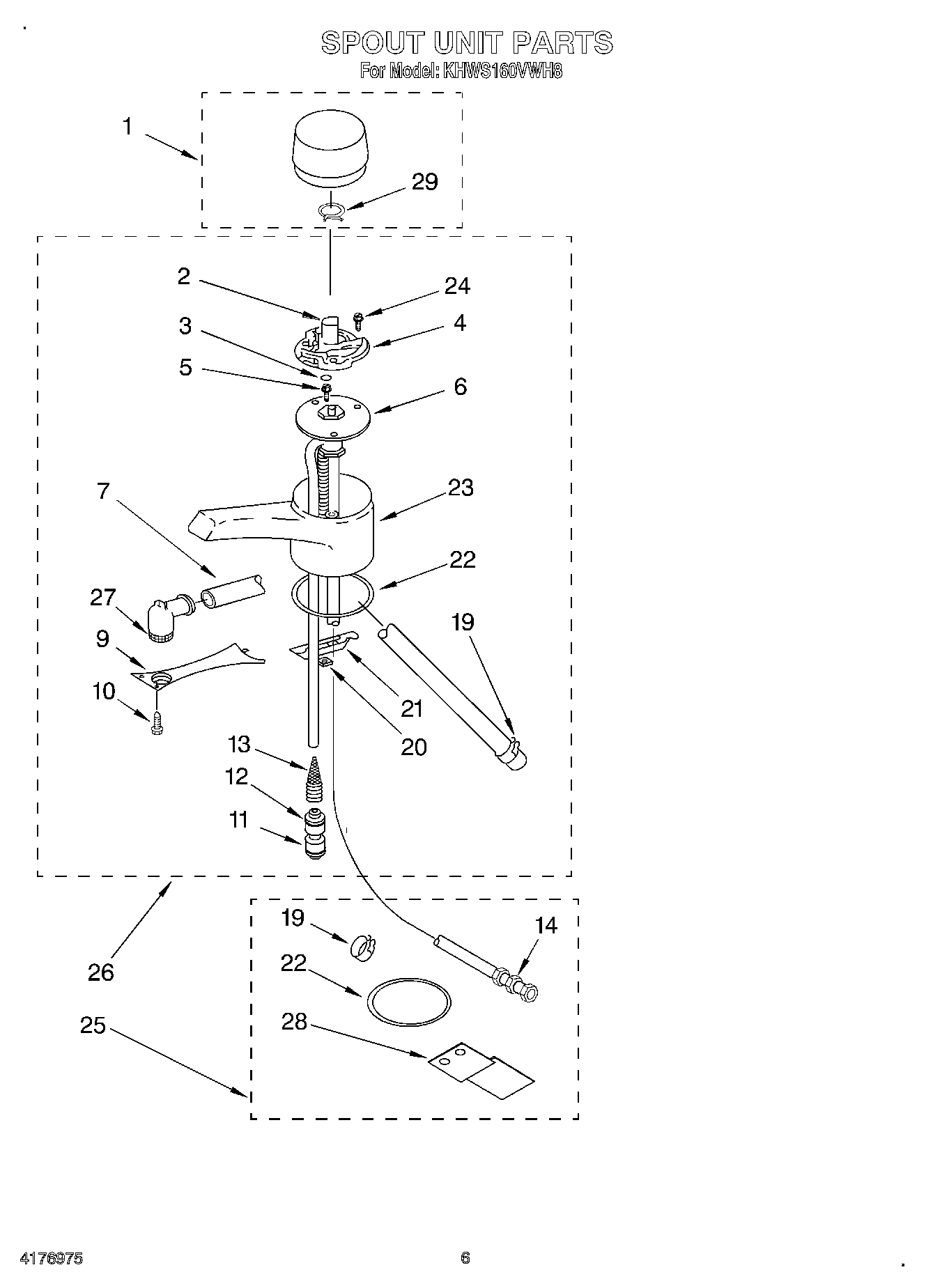

KHWS160VWH8 04 – SPOUT UNITadmin2025-04-26T11:56:42+00:00KHWS160VWH8 04 – SPOUT UNIT
Products
| Position | Product |
|---|
| 1 | Knob (Almond) |
| 1 | Knob (Black) |
| 1 | Knob (Biscuit) |
| 1 | Knob (White) |
| 2 | Hub, Valve Drive |
| 3 | Spring, Compression |
| 4 | Cam |
| 5 | Cap Screw, 1/4-20 X 5`` Rd. |
| 6 | Mechanical Valve (Includes Illus. 13 & 14) |
| 7 | Tube (3/8`` I.D.) |
| 9 | Plate, Spout |
| 10 | Screw, Self Tapping (No.4-20 X 5/16``) Phil. Flat Hd. |
| 11 | WP2198677 Whirlpool Refrigerator Connector |
| 12 | Cover, Collet |
| 13 | Screen, Inlet |
| 19 | Clamp, Hose |
| 20 | Machine Nut 1/4-20 Sq. |
| 21 | Bracket, Spout Mounting |
| 22 | Seal, Sink |
| 23 | Spout Body (Chrome) |
| 23 | Faucet Spout (Almond) |
| 23 | Faucet Spout (Biscuit) |
| 23 | Spout Body (White) |
| 24 | 489392 Whirlpool Refrigerator Screw |
| 25 | Hardware, Installation |
| 26 | Spout Assembly (Biscuit) |
| 26 | Faucet Assembly (Almond) |
| 26 | Faucet Assembly (White) |
| 26 | Faucet Assembly (Chrome) |
| 27 | Flow Screen |
| 28 | Bracket, Mounting |
| 29 | Clamp, Hose |
