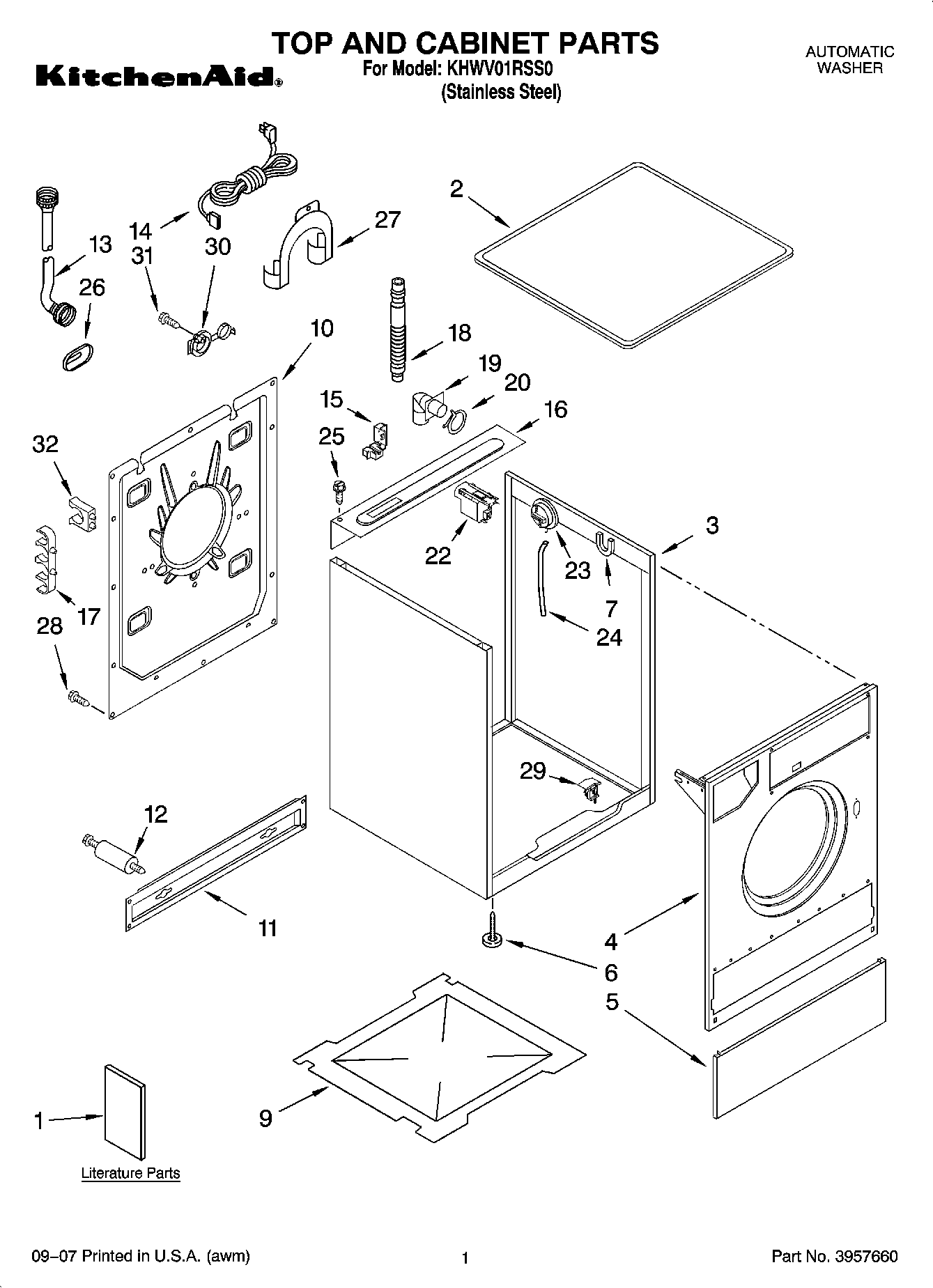

KHWV01RSS0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Energy Guide
1	Use & Care Guide
1	Tech Sheet
1	Installation Instructions
1	Quick Start Guide
2	TOP
3	CABINET
4	Panel, Front
5	Toe Panel
6	Foot, Leveling
7	WP8181763 Whirlpool Bracket Assembly
9	Pan, Bottom
10	Panel, Rear
11	WPW10003040 Whirlpool Brace
12	W10289554A Whirlpool Bolt Kit
13	Hose, Water Inlet (Blue)
13	Hose, Water Inlet (Red)
14	WP8183009 Whirlpool Power Cord
15	8182635 Whirlpool Strain Relief
16	Brace, Rear
17	8182701 Whirlpool Clip
18	WP8181737 Whirlpool Hose
19	Connector, Drain Hose
20	WP3367052 Whirlpool Hose Clamp
22	WPW10367632 Whirlpool Filter
23	WPW10514214 Whirlpool Water Level Switch
24	WPW10004260 Whirlpool Pressure Switch Hose
25	Screw
26	WP8540268 Whirlpool Cover Assembly
27	WPW10280024 Whirlpool Retainer
28	WP488729 Whirlpool Refrigerator Door Screw
29	WPW10085220 Whirlpool Switch
30	W11116978 Whirlpool Grommet
31	8182201 Whirlpool Screw
32	Harness Channel
32	Following Parts Not Illustrated
32	Clip, Outer Hose Holder
