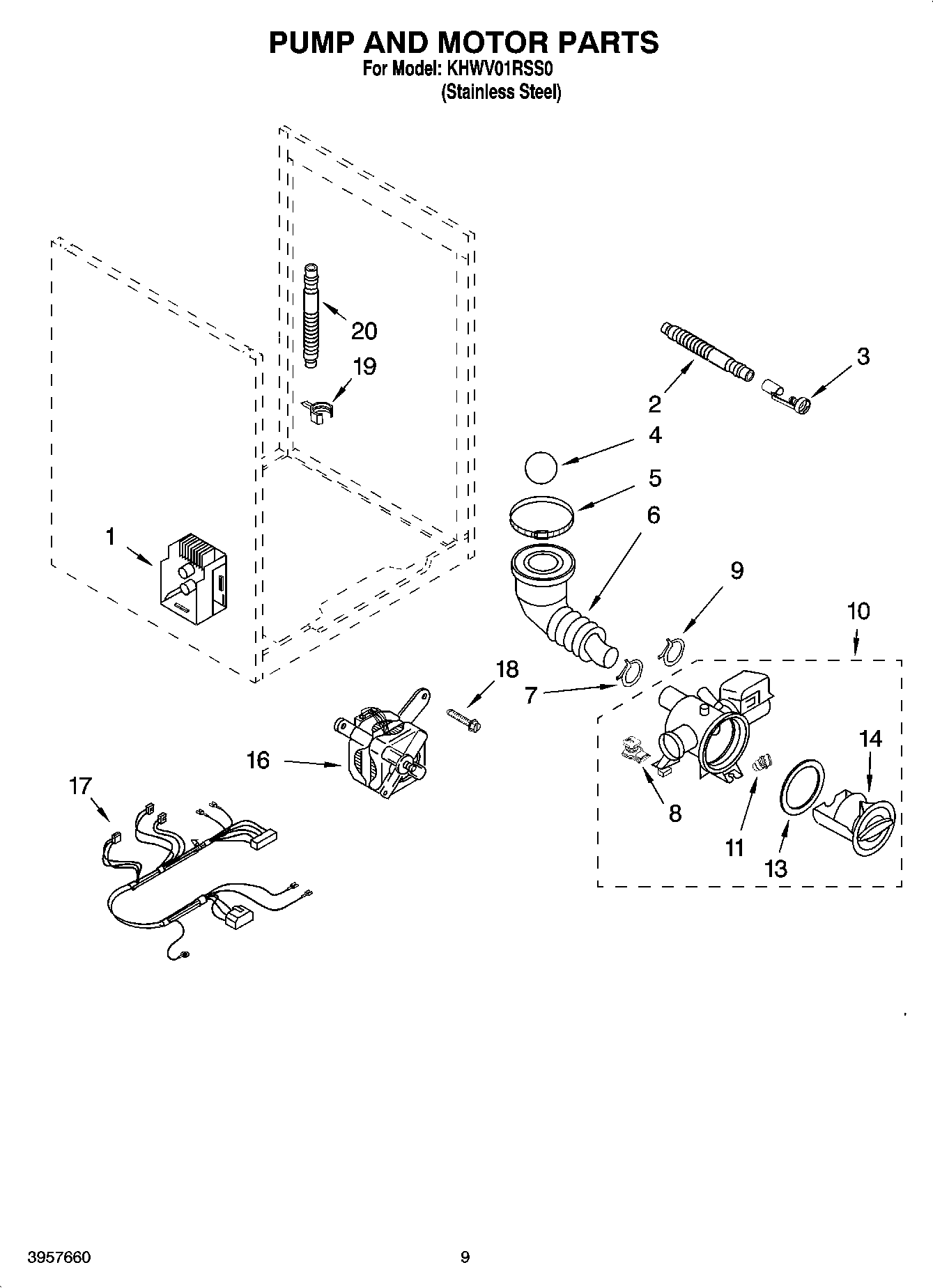

KHWV01RSS0 06 – PUMP AND MOTOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

KHWV01RSS0 06 – PUMP AND MOTOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KHWV01RSS0 06 – PUMP AND MOTOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
285863 Whirlpool Drain Hose Extension 4'
ACCESSORIES, WIPES, STAINLESS STEEL
ACCESSORY PARTS
1W10756692-includeCORE Whirlpool W10756692 Washer Electronic Motor Control Board + Core
2Hose, Drain (Pump Service)
3Cap, Drain Hose
4W10121657 Whirlpool Ball
5WP696392 Whirlpool Hose Clamp
6WPW10467168 Whirlpool Hose Assembly
7WP285655 Whirlpool Hose Clamp
8Grommet, Damper (Rear)
9WP3367052 Whirlpool Hose Clamp
10Pump (Complete)
11WPW10526202 Whirlpool Grommet
13Seal, Filter Cap
14Cap, Filter
16Motor
17Harness, Motor
18Bolt, Motor
198182209 Whirlpool Clip
20WPW10003250 Whirlpool Hose
