KICU265BAL0 02 – SECTION

Products

Position	Product
	4396565 Whirlpool Filter
	Use & Care Guide, Installation, Template
	Ductless Kit (White Model)
	Ductless Kit (Stainless Model)
	Ductless Kit (Almond Model)
NI	Wire Nut
	Wiring Diagram
	Rear
	Side
	Rack Hanger Kits Utensil Bars
	Wire Racks
	Backsplash

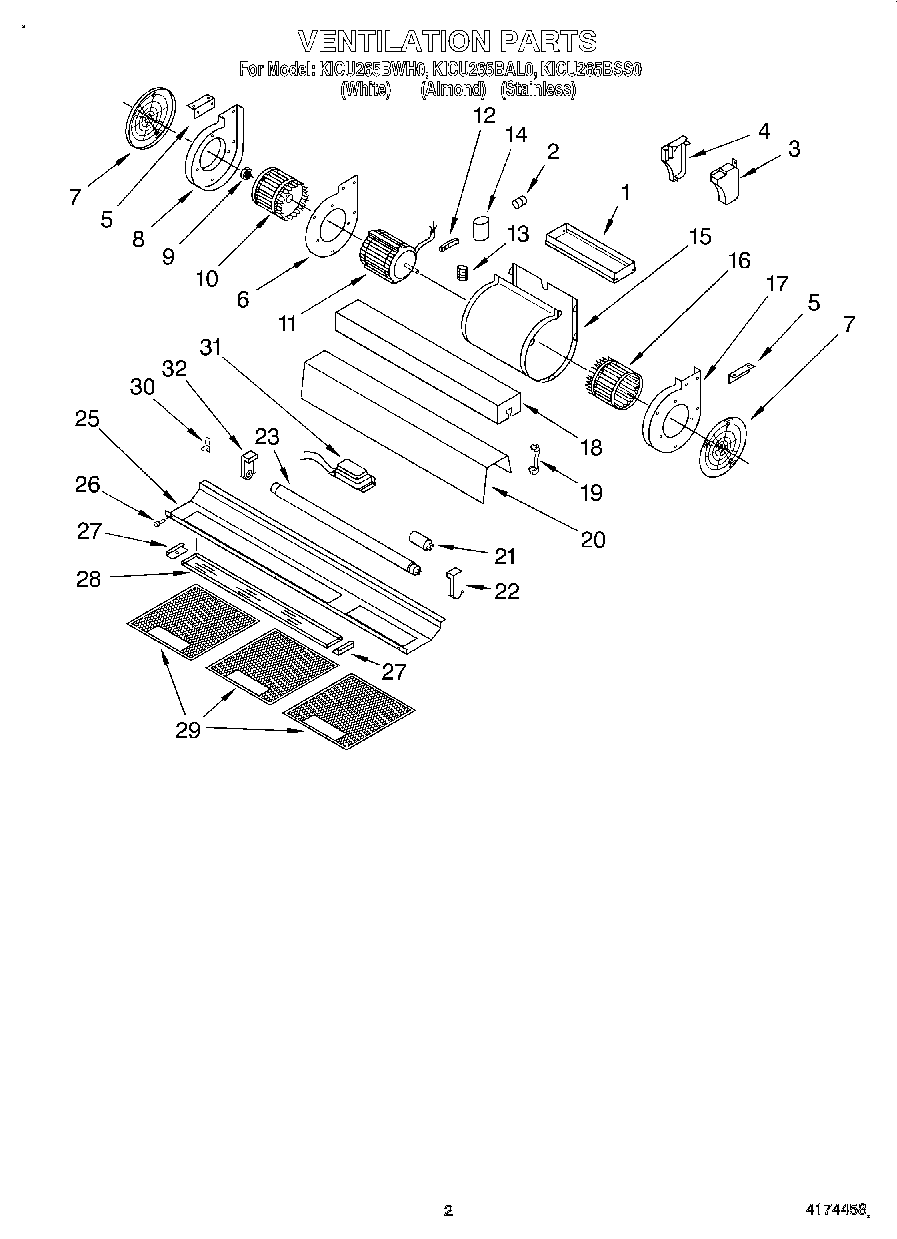

1	Extension, Diffuser
2	Grommet
3	Cover, Box
4	Box, Electric
5	Bracket, Diffuser
6	Motor Mount
7	Filter, Charcoal
8	Cover, Blower
9	Nut
10	Impeller
11	Motor
12	Block, Capacitor
13	Terminal
14	Capacitor
15	Housing, Motor
16	Impeller
17	Cover, Blower
18	Protection, Wiring
19	Relief, Strain
20	Support Neon
21	Starter
22	Lampholder
23	Lamp
25	Support, Lighting (Stainless Model)
25	Support, Lighting (White Model)
25	Support, Lighting (Almond Model)
26	Pin
27	Side, Lighting
28	Glass, Light
29	WPW10368696 Whirlpool Grease Filter
30	Clamp, Wiring
31	Ballast
32	Lamp Holder
