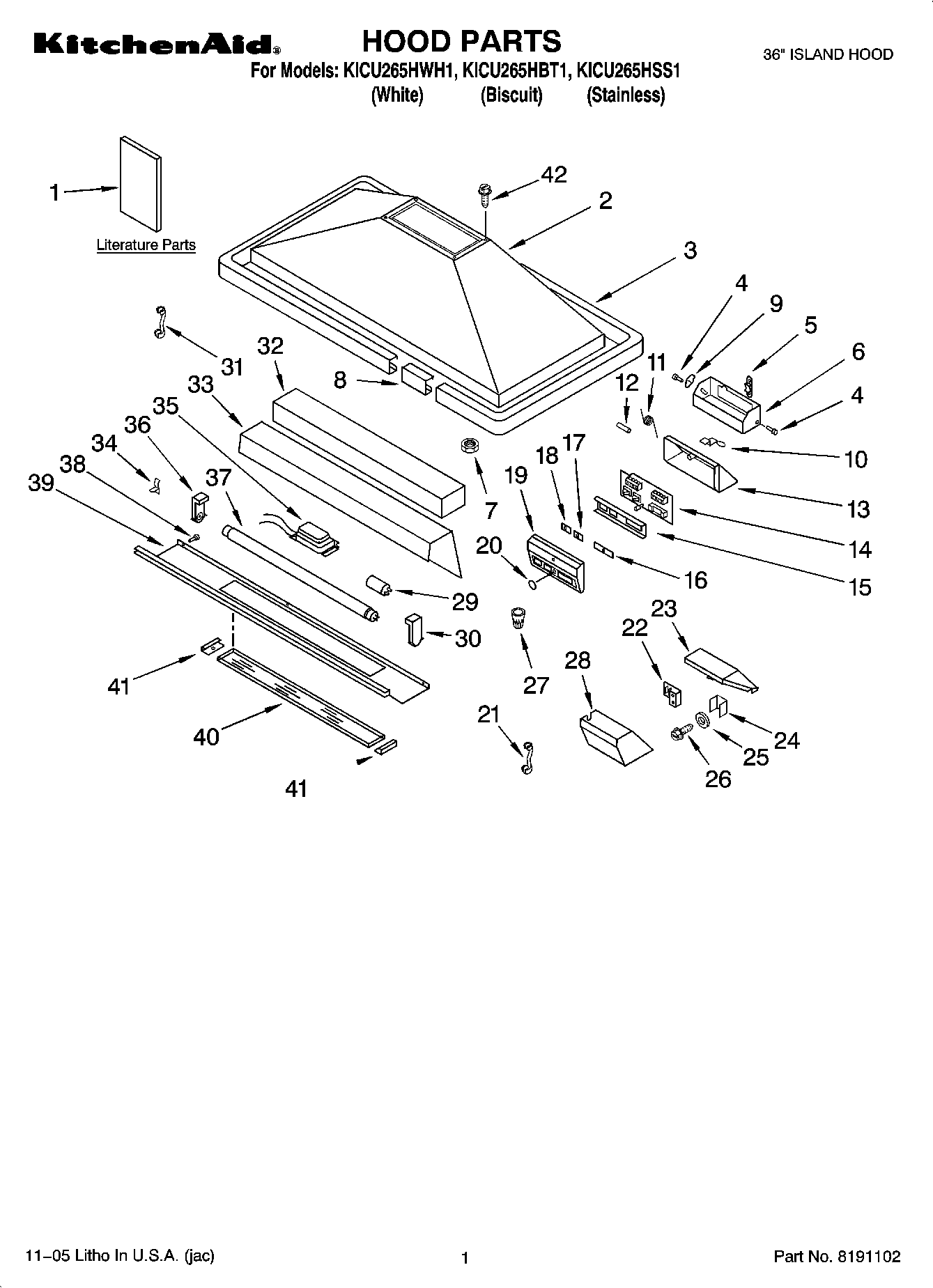

KICU265HSS1 01 – HOOD PARTS

Products

Position	Product
1	Wiring Diagram
1	Use & Care Guide/ Install Instructs
2	Hood, Canopy (Not Serviced)
3	Trim (Stainless Model)
3	Trim (Biscuit Model)
3	Trim (White Model)
4	Pin
5	Clamp, Cable
6	Housing, Control Box
7	Nut
8	Trim, Connector (Stainless Model)
8	Trim, Connector (Biscuit Model)
8	Trim, Connector (White Model)
9	Lever, Switches
10	Clamp, Cable
11	Spring
12	Spring, Pin
13	Control Box
14	Board, Control
15	Support, Actuators
16	Actuator, 1-2-3
17	Actuator, Motor
18	Actuator, Lighting
19	Cover, Box
20	Cover, Lamp
21	Strain Relief
22	Control, Speed
23	Box, Distribution
24	Guide, Ground
25	Washer
26	Screw
27	Wire Nut
28	Cover, Box
29	Starter
30	Lampholder
31	Relief, Strain
32	Protection, Wiring
33	Support Neon
34	Clamp, Wiring
35	Ballast
36	Lamp Holder
37	Lamp
38	Pin
39	Support, Filter (Stainless Model)
39	Support, Filter (White Model)
39	Support, Filter (Biscuit Model)
40	Glass, Light
41	Side, Lighting
42	Screw
