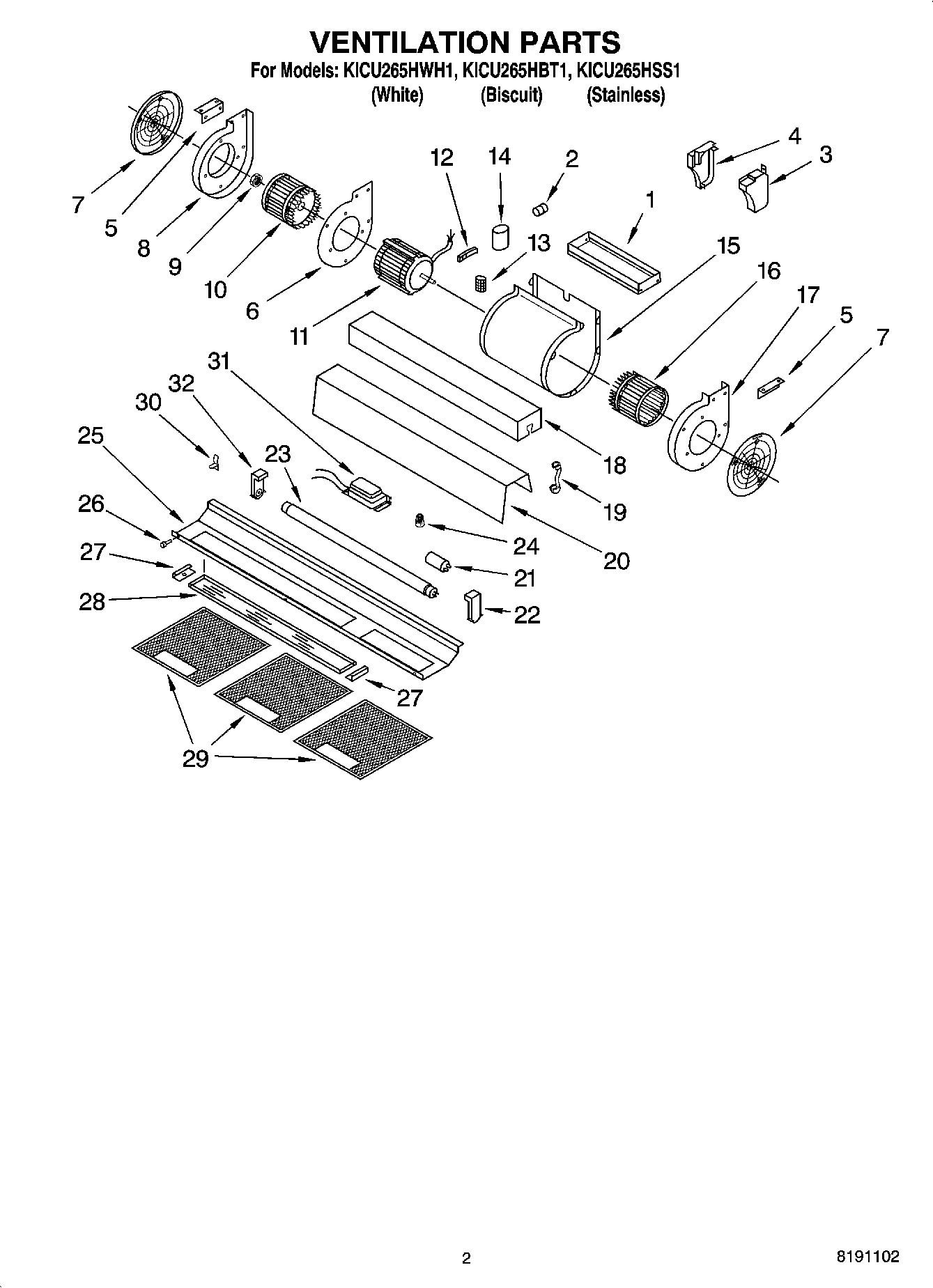

KICU265HSS1 02 – VENTILATION PARTS

Products

Position	Product
1	Extension, Diffuser
2	Grommet
3	Cover, Box
4	Box, Electric
5	Bracket, Diffuser
6	Motor Mount
7	Filter, Charcoal
8	Cover, Blower
9	Nut
10	Impeller
11	Motor
12	Block, Capacitor
13	Terminal
14	Capacitor
15	Housing, Motor
16	Impeller
17	Cover, Blower
18	Protection, Wiring
19	Relief, Strain
20	Support Neon
21	Starter
22	Lampholder
23	Lamp
24	Wire Nut
25	Support, Lighting (White Model)
25	Support, Lighting (Stainless Model)
25	Support, Lighting (Biscuit Model)
26	Pin
27	Side, Lighting
28	Glass, Light
29	WPW10368696 Whirlpool Grease Filter
30	Clamp, Wiring
31	Ballast
32	Ductless Kit (Stainless Model)
32	Ductless Kit (White Model)
32	Rack Hanger Kits Utensil Bars
32	Wire Racks
32	Lamp Holder
32	Rear
32	Ductless Kit (Biscuit Model)
32	Ductless Kit
32	ACCESSORY PARTS
32	Side
32	4396565 Whirlpool Filter
32	Backsplash
