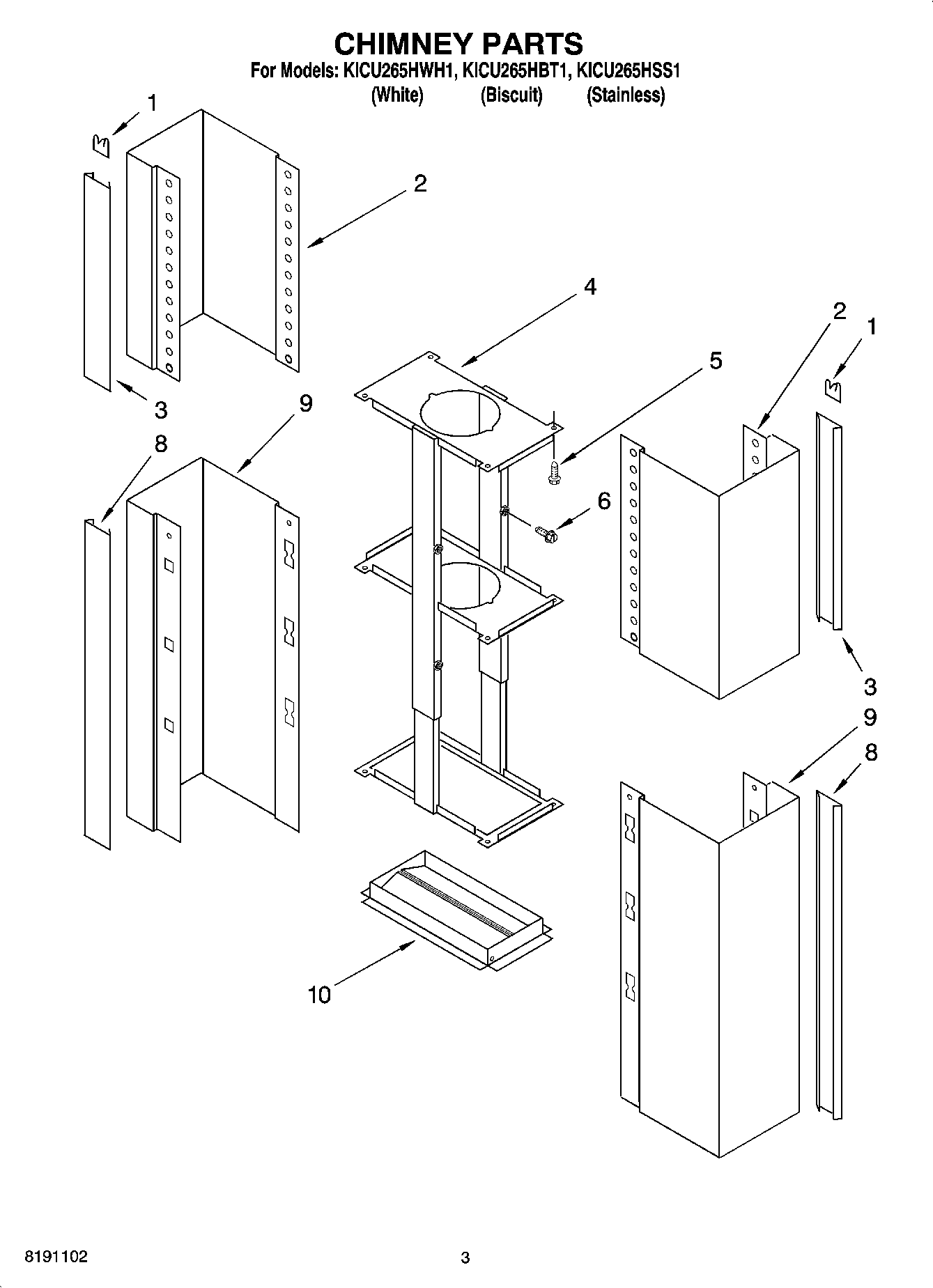

KICU265HWH1 03 – CHIMNEY PARTS

Products

Position	Product
1	Spring (3)
2	Upper Chimney (Stainless Model)
2	Upper Chimney (White Model)
2	Upper Chimney (Biscuit Model)
3	Moulding, Upper (Biscuit Model)
3	Moulding, Upper (Stainless Model)
3	Moulding, Upper (White Model)
4	Frame, Telescopic
5	Screw
6	Screw
8	Moulding, Lower (White Model)
8	Moulding, Lower (Stainless Model)
8	Moulding, Lower (Biscuit Model)
9	Lower Chimney (White Model)
9	Lower Chimney (Stainless Model)
9	Lower Chimney (Biscuit Model)
10	FOLLOWING PARTS NOT ILLUSTRATED
10	WPL 814380
10	Damper
