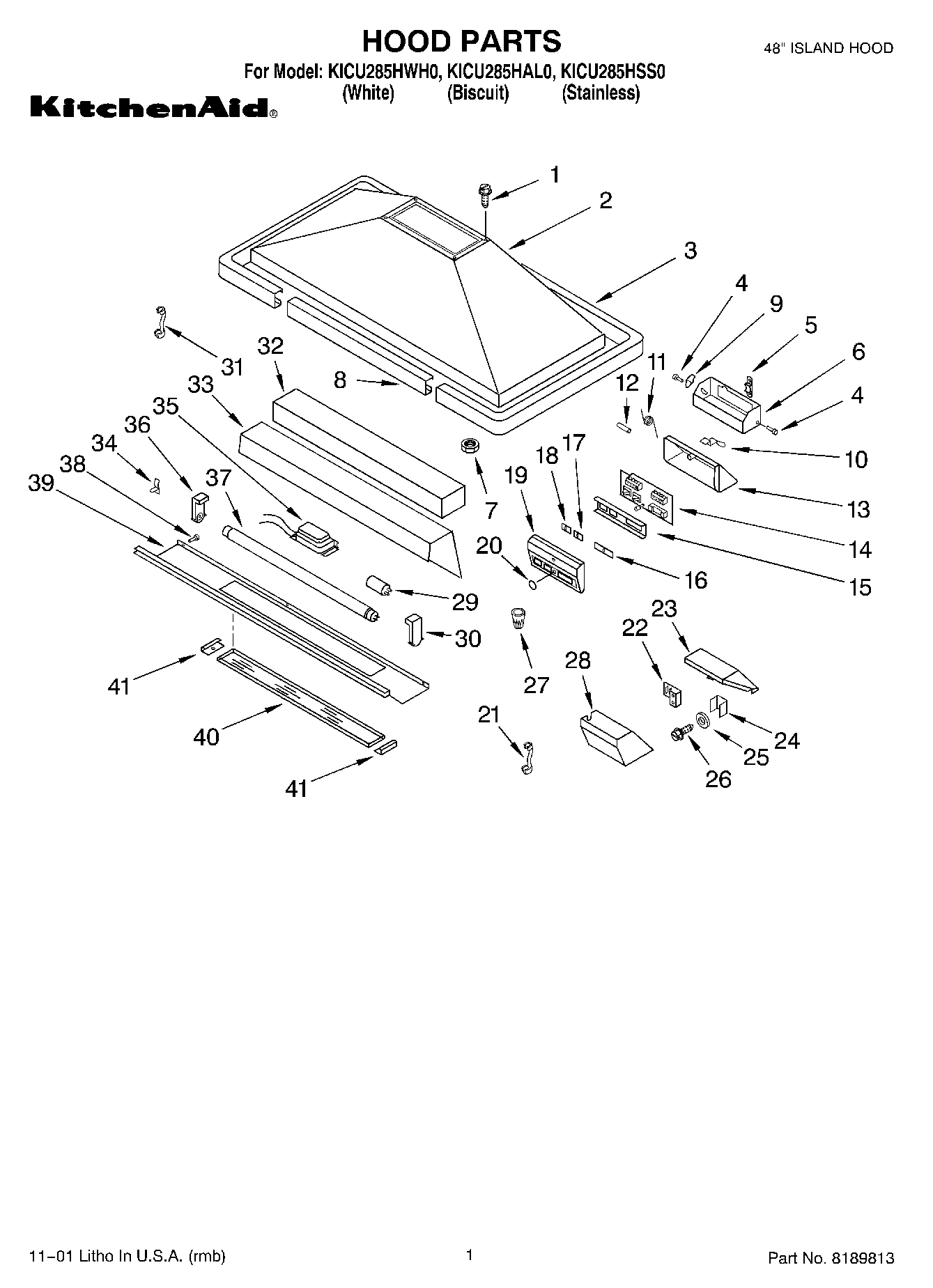

KICU285HAL0 01 – SECTION

Products

Position	Product
1	Screw
2	Hood, Canopy (Not a Serviceable Part)
3	Trim, Side (White Model)
3	Trim, Side (Stainless Model)
3	Trim, Side (Biscuit Model)
4	Pin
5	Clamp, Cable
6	Housing, Control Box
7	Nut
8	Trim, Front (Biscuit Model)
8	Trim, Front (Stainless Model)
8	Trim, Front (White Model)
9	Lever, Switches
10	Clamp, Cable
11	Spring
12	Spring, Pin
13	Control Box
14	Board, Control
15	Support, Actuators
16	Actuator, 1-2-3
17	Actuator, Motor
18	Actuator, Lighting
19	Cover, Box
20	Cover, Lamp
21	Strain Relief
22	Control, Speed
23	Box, Distribution
24	Guide, Ground
25	Washer
26	Screw
27	Wire Nut
28	Cover, Box
29	Starter
30	Lampholder
31	Relief, Strain
32	Protection, Wiring
33	Support Neon
34	Clamp, Wiring
35	Ballast
36	Lamp Holder
37	Lamp
38	Pin
39	Support, Light (White Model)
39	Support, Light (Biscuit Model)
39	Support, Light (Stainless Model)
40	Glass, Light
41	Side, Lighting
