KICU285HAL0 02 – SECTION

Written by

Products

Position	Product
	4396565 Whirlpool Filter
NI	Wire Nut
	Ductless Kit (Biscuit Model)
	Use & Care Guide, Installation, Template
	Ductless Kit (Stainless Model)
	Ductless Kit (White Model)
	Wiring Diagram
	Rear
	Backsplash
	Wire Racks
	Rack Hanger Kits Utensil Bars

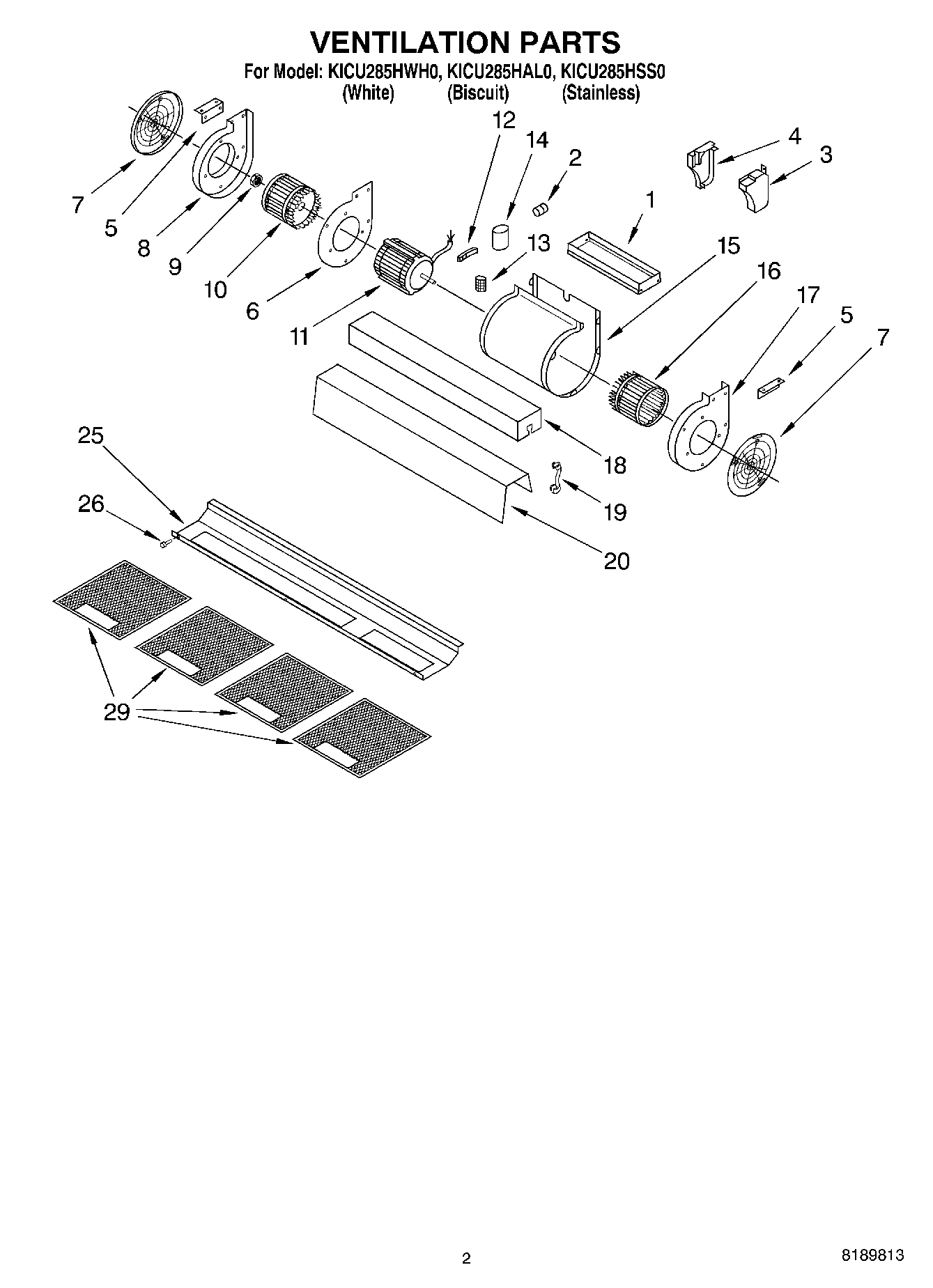

	Side
1	Extension, Diffuser
2	Grommet
3	Cover, Box
4	Box, Electric
5	Bracket, Diffuser
6	Motor Mount
7	Filter, Charcoal
8	Cover, Blower
9	Nut
10	Impeller
11	Motor
12	Block, Capacitor
13	Terminal
14	Capacitor
15	Housing, Motor
16	Impeller
17	Cover, Blower
18	Protection, Wiring
19	Relief, Strain
20	Support Neon
25	Support, Filter (Biscuit Model)
25	Support, Filter (White Model)
25	Support, Filter (Stainless Model)
26	Pin
29	WPW10368696 Whirlpool Grease Filter
