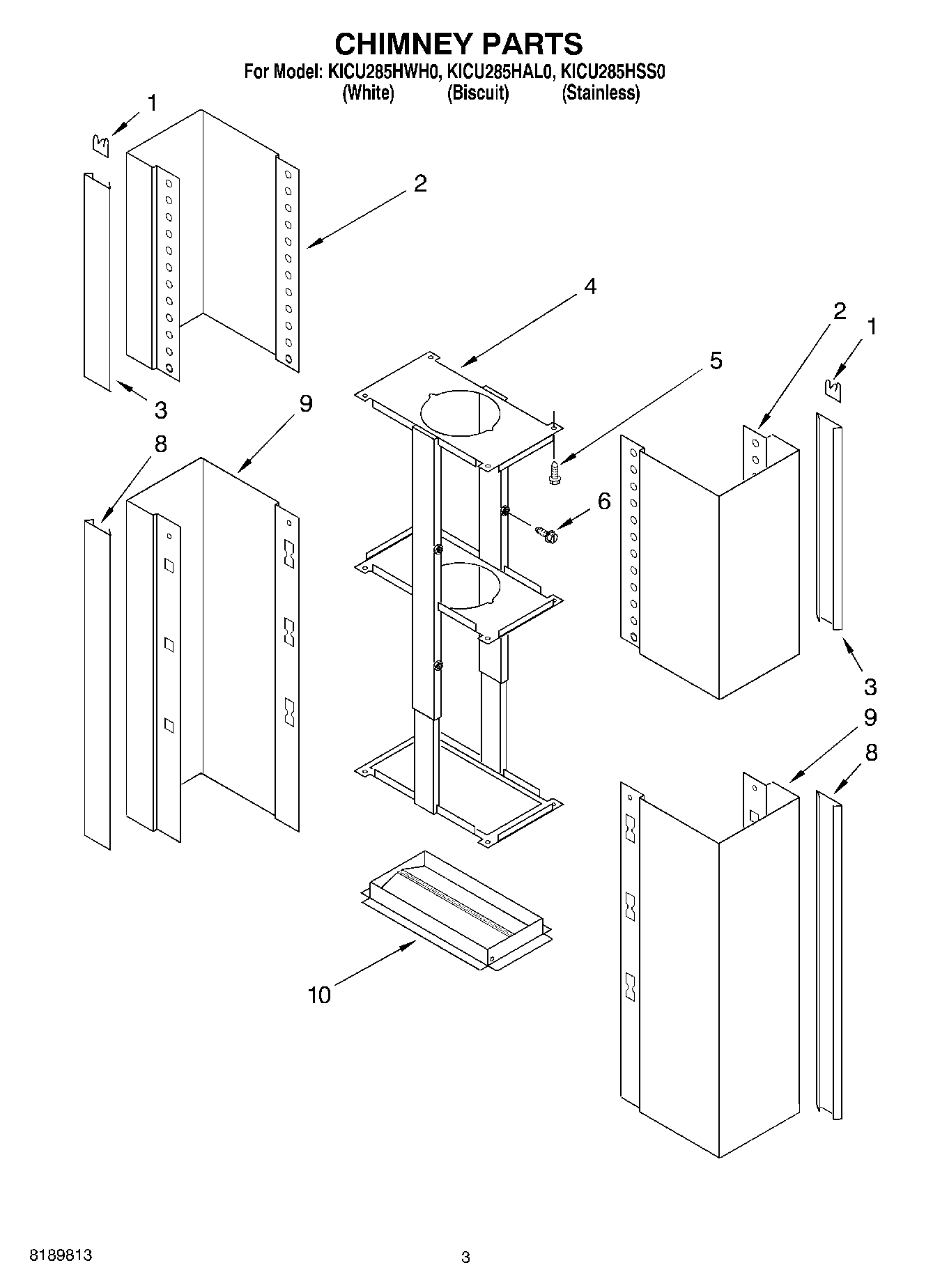

| 1 | Spring (3) |
| 2 | Upper Chimney (White Model) |
| 2 | Upper Chimney (Biscuit Model) |
| 2 | Upper Chimney (Stainless Model) |
| 3 | Moulding, Upper (Stainless Model) |
| 3 | Moulding, Upper (White Model) |
| 3 | Moulding, Upper (Biscuit Model) |
| 4 | Frame, Telescopic |
| 5 | Screw |
| 6 | Screw |
| 8 | Moulding, Lower (Stainless Model) |
| 8 | Moulding, Lower (Biscuit Model) |
| 8 | Moulding, Lower (White Model) |
| 9 | Lower Chimney (White Model) |
| 9 | Lower Chimney (Stainless Model) |
| 9 | Lower Chimney (Biscuit Model) |
| 10 | WPL 814380 |
| 10 | Damper |
