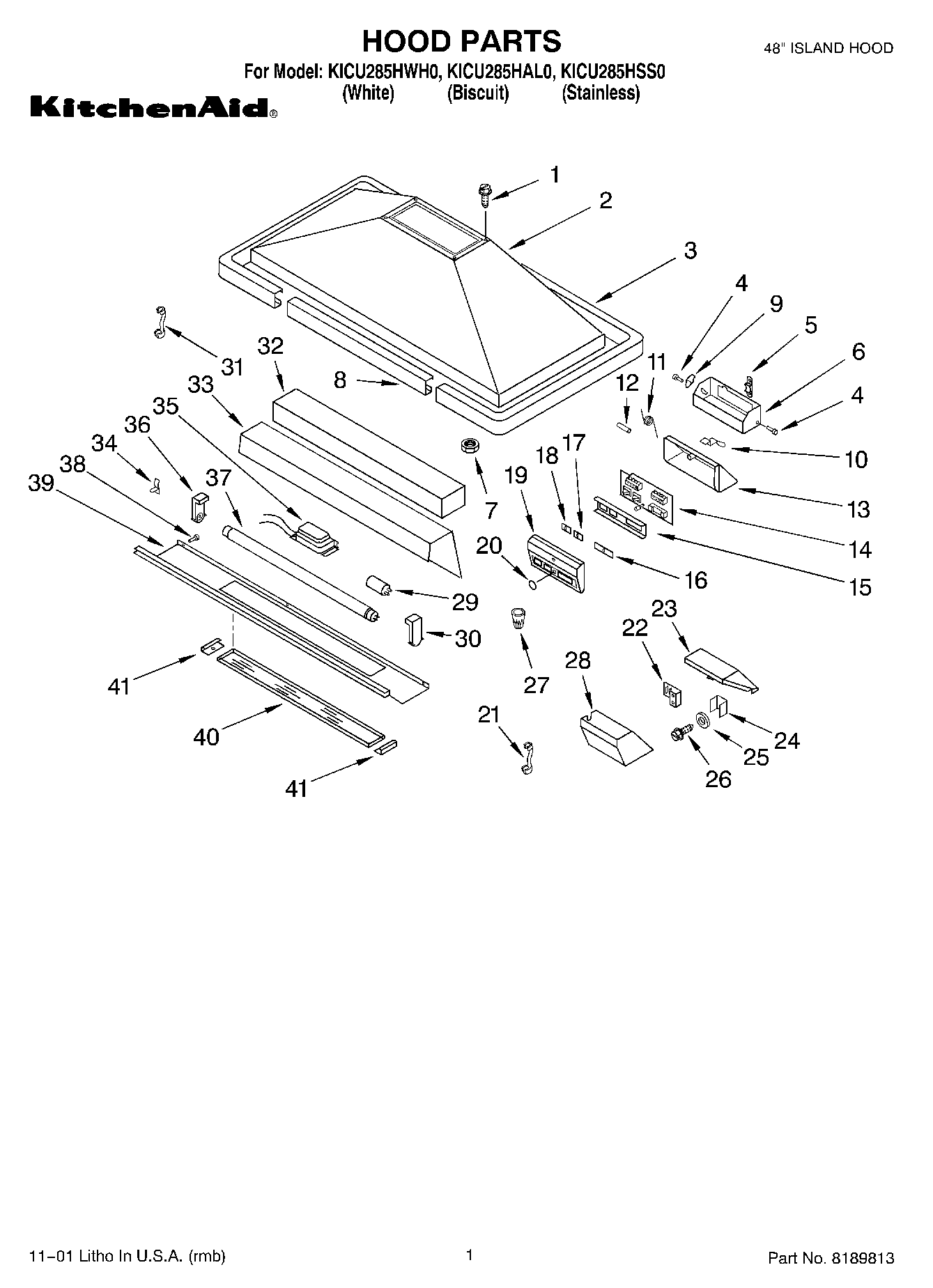

| 1 | Screw |
| 2 | Hood, Canopy (Not a Serviceable Part) |
| 3 | Trim, Side (Biscuit Model) |
| 3 | Trim, Side (White Model) |
| 3 | Trim, Side (Stainless Model) |
| 4 | Pin |
| 5 | Clamp, Cable |
| 6 | Housing, Control Box |
| 7 | Nut |
| 8 | Trim, Front (White Model) |
| 8 | Trim, Front (Stainless Model) |
| 8 | Trim, Front (Biscuit Model) |
| 9 | Lever, Switches |
| 10 | Clamp, Cable |
| 11 | Spring |
| 12 | Spring, Pin |
| 13 | Control Box |
| 14 | Board, Control |
| 15 | Support, Actuators |
| 16 | Actuator, 1-2-3 |
| 17 | Actuator, Motor |
| 18 | Actuator, Lighting |
| 19 | Cover, Box |
| 20 | Cover, Lamp |
| 21 | Strain Relief |
| 22 | Control, Speed |
| 23 | Box, Distribution |
| 24 | Guide, Ground |
| 25 | Washer |
| 26 | Screw |
| 27 | Wire Nut |
| 28 | Cover, Box |
| 29 | Starter |
| 30 | Lampholder |
| 31 | Relief, Strain |
| 32 | Protection, Wiring |
| 33 | Support Neon |
| 34 | Clamp, Wiring |
| 35 | Ballast |
| 36 | Lamp Holder |
| 37 | Lamp |
| 38 | Pin |
| 39 | Support, Light (White Model) |
| 39 | Support, Light (Biscuit Model) |
| 39 | Support, Light (Stainless Model) |
| 40 | Glass, Light |
| 41 | Side, Lighting |
