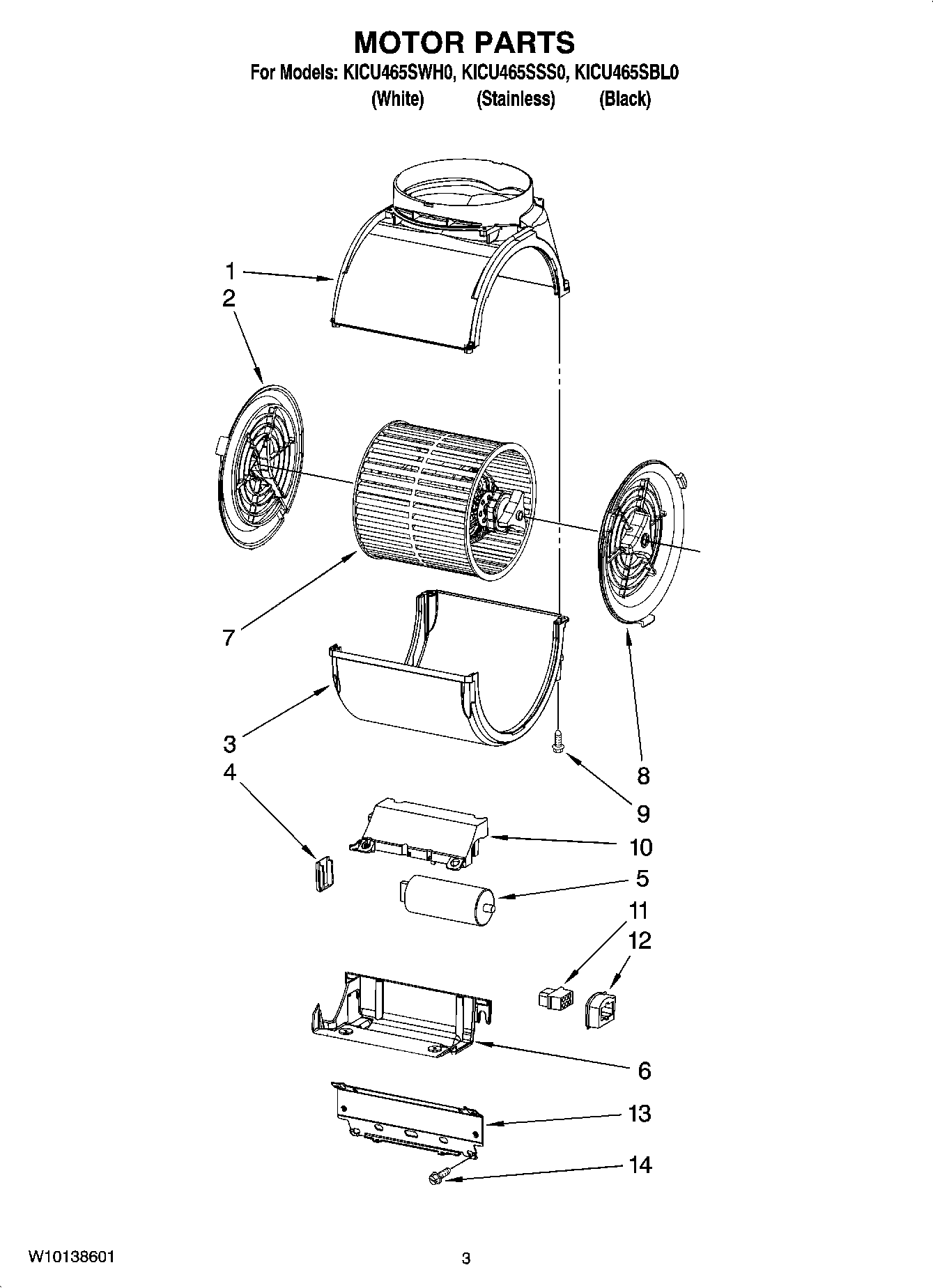

KICU465SBL0 02 – MOTOR PARTS
Written by
in
KICU465SBL0 02 – MOTOR PARTS
Products
Position
Product
1
Housing, Upper
2
Support, Motor-SX
3
Housing, Fan (Lower)
4
Cover, Wire
5
CAPACITOR
6
Cover, Wiring
7
Motor Assy
8
Support, Motor-DX
9
SCREW
10
Box, Electrical
11
Connector
12
Connection, 6-Way
13
Bracket
14
Screw (2)
←
