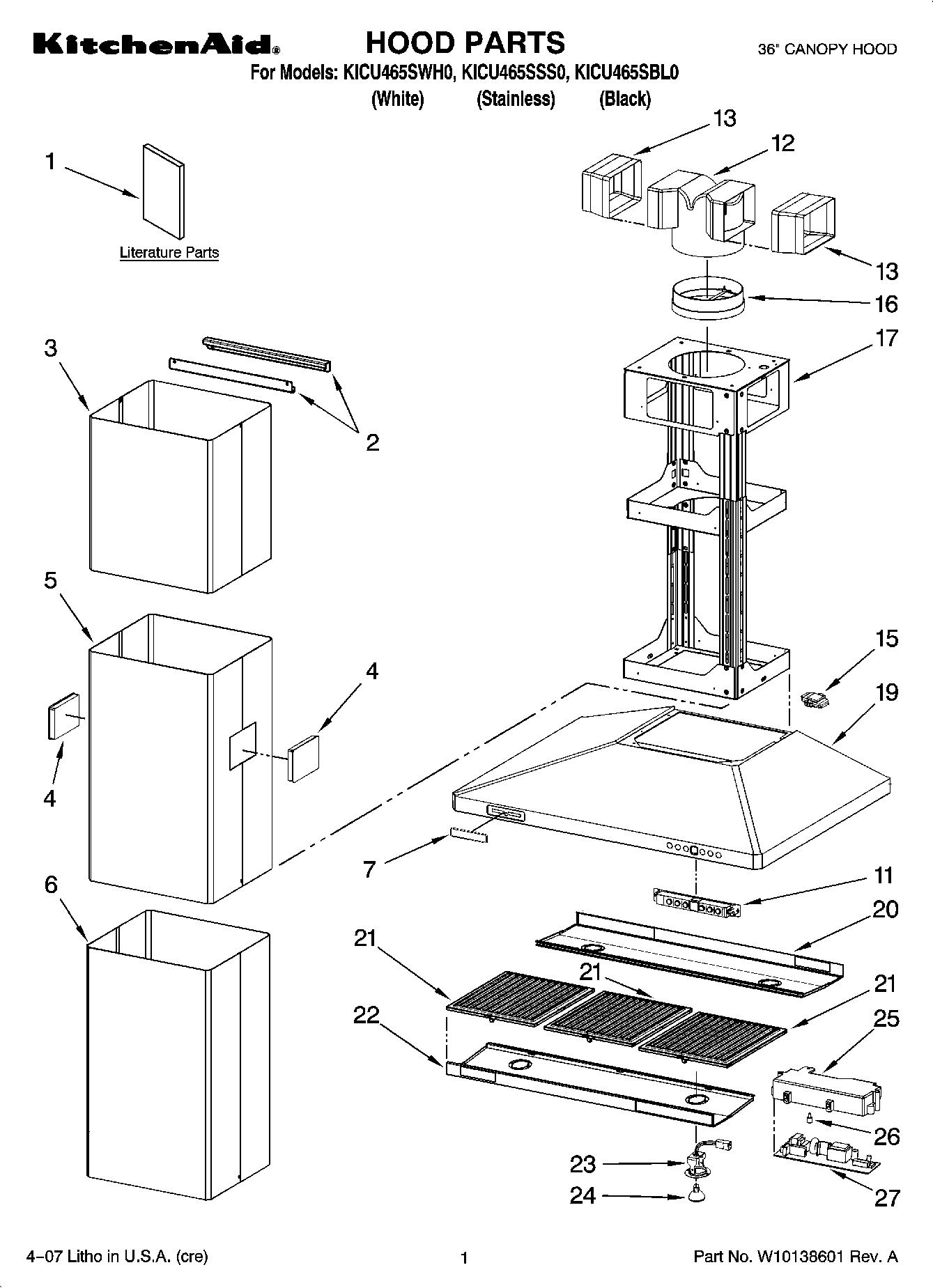

KICU465SWH0 01 – HOOD PARTS
Written by
in
KICU465SWH0 01 – HOOD PARTS
Products
Position
Product
1
Use & Care Guide
2
Spacer (Center)
2
Spacer (Upper & Lower)
3
Pipe, Fitting (Upper) (S.Steel)
3
Pipe, Fitting (Upper) (Black)
3
Pipe, Fitting (Upper) (White)
4
Air – Outlet (Left) (White Model)
4
Air-Outlet (RH Black)
4
Air-Outlet (LH Black)
4
Air – Outlet (Right) (Stainless Model)
4
Air – Outlet (Right) (White Model)
4
Air – Outlet (Left) (Stainless Model)
5
Pipe Fitting (Ducted) (Black)
5
Pipe Fitting (Ducted) (S.Steel)
5
Pipe Fitting (Ducted) (White)
6
Pipe Fitting (Ductless) (White)
6
Pipe Fitting (Ductless) (Black)
6
Pipe Fitting (Ductless) (S.Steel)
7
W10021850 Whirlpool Dishwasher Nameplate
7
W10021860 Whirlpool Dishwasher Nameplate
7
W10021870 Whirlpool Nameplate
11
Board, Control
12
Duct, Air
13
Duct, Air Spacer
15
Box, Control
16
Damper
17
Casing, Motor (Not Serviced)
19
Hood (White)
19
Hood (Black)
19
Hood (S.Steel)
20
Support, Rear Lt (White)
20
Support, Rear Lt (Black)
20
Support, Rear Lt (S.Steel)
21
WPW10252087 Whirlpool Range Hood Grease Filter
22
Support, Front Lt (White)
22
Support, Front Lt (S.Steel)
22
Support, Front Lt (Black)
23
W10252116 Whirlpool Socket
24
WPW10252088 Whirlpool Light Bulb
25
Box, Control
26
Knob, Control
27
Control, Motor
←
